2017 European Good Quality Painting Room

• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Orient
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type

=== Base Info ===

• Model NO.：C-200A
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Standard Packing Suitable for Sea transportation
• Specification：CE
• Trademark：Sunrise
• Origin：China
• HS Code：84178090
• Production Capacity：100 per year

=== Description ===

Basic Info.

Model NO. C-200A Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Transport Package Standard Packing Suitable for Sea transportation Specification CE Trademark Sunrise Origin China HS Code 84178090 Production Capacity 100 per year

Product Description

painting room C200 A


Inside Dimensions: 7000 X 4000 X 2600mm(L X WX H)
Outside Dimensions: 7000 X 4120(5670) X 3350mm(LX WX H)
Entrance door: three-fold 3000 X 2550mm( WX H)
Personnel door:one-fold 800x2000mm, with Pressure lock

Wall Panels: 60mmEPS tongue and groove interlock construction, precoated steel sheet, double skined with insulations

Basement: Raised metal-basement(300mm high); 2 rows of gratings and 3 rows of indented plates, 2 pieces of ramps 750x2000mm(W X L)

Lighting: Upper inclined lights, total 8 sets, each set: 4 pieces x36W, Philip bulb.

Intake: 2X 4kw centrifugal fans, air capacity 20000m3/h, ABB motor

Extract: 1X 5. 5 kw fan and motor, air capacity 20000m3/h, ABB motor

Heating System:
G20 oil burner from Riello, Stainless steel heat exchanger,
80 degree working temperature
Electrical damper

Filter System: Prefilter, ceiling filter, floor paint-stop filter, extract paint-stop filter

Control System:
Reliable components, digital temperature readout, spray and bake temperature settings, bake timer, houer meter, over temperature alarm, indicator lights, emergency stop.

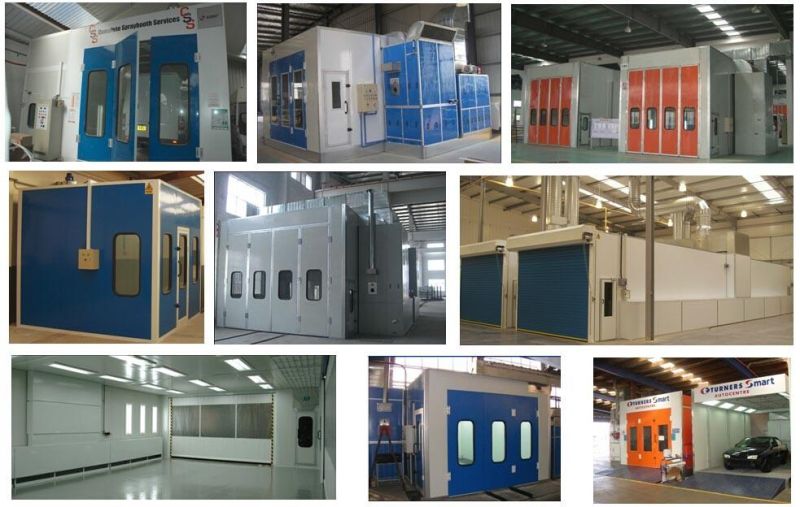

CASES:
