- Tube Chip Color:Full Color
- Display Function:Video Display
- Pixel Pitch:3.91mm
- Pixel Configuration:1R,1G,1B
- Pixel Density:65, 536 Dots,M2
- Scanning Mode:1,16 Scan
=== Base Info ===
- Model NO.:P3.91
- System Operating Platform:WIN XP
- Display Type:LED Video Display
- Application:Stage Performance, Advertising
- IP Rating:IP43
- Certification:CE, RoHS, UL, CCC, ETL
- LED Chip Spec:SMD2121
- Est View Distance:3~150m
- Shipment Terms:by Sea or by Air
- Cabinet Material:Die-Casting Cabinet
- Control System:Linsn or Nova
- Price:Factory Direct Sale
- Brightness:1000-1500 CD,M2
- Module Size:250mm*250mm
- Transport Package:Flight Case
- Specification:500mm*500mm or500mm*1000mm
- Trademark:GM
- Origin:Shenzhen
=== Description ===

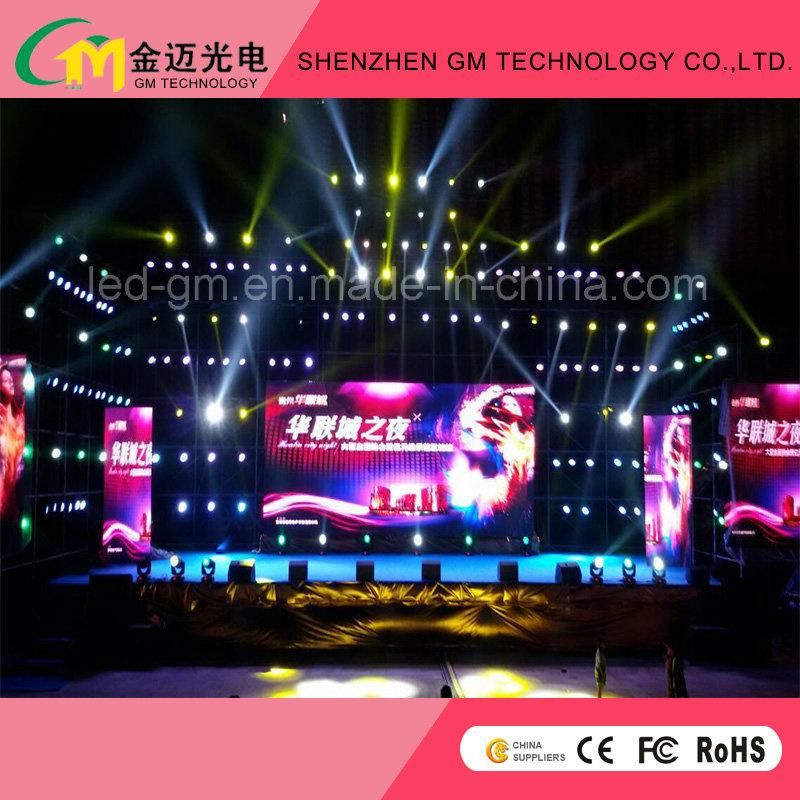

P3.91 Rental Stage Video LED Display Screen For Indoor
S/N | Item | Technical Parameters |
LED Parameters |
1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
2 | Red LED | SMD2121 | 120-140mcd | 620-625nm | 140º/120º |
3 | Green LED | SMD2121 | 360-435mcd | 520-525nm | 140º/120º |
4 | Blue LED | SMD2121 | 80-100mcd | 470-475nm | 140º/120º |
Module Specification |
1 | Pixel Pitch | 3.91mm |
2 | Pixel Configuration | 1R1G1B |
3 | Module Resolution | 64 x 64 pixels |
4 | Module Pixles | 4096 pixels |
5 | Module Size | 250mm X 250mm |
Cabinet Specification |
1 | Cabinet Size(W X H X D) | 500mm x 500mm x 80mm |
2 | Cabinet Resolution(dot) | 128 x 128 pixels |
3 | Module Quanity (pcs) | 4pcs |
4 | Cabinet Pixels | 16384 pixels |
5 | Pixel Density | 65536 pixels/m2 |
6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
7 | Cabinet Weight | 6.247kg per cabinet |
8 | Packaging | Fly case |
9 | Fly Case Size | 62*56*74CM ( one case for five cabinets )/ 56.3kg |
Whole Screen Specification |
1 | Screen Brightness | ≥1400cd/m2 |
2 | Driving Method | 1/16 scan |
3 | Best Viewing Distance | 3.91m - 40m |
4 | Max. Power Consumption | 800W/m2 |
5 | Average Power Consumption | 240W/m2 |
6 | Gray Level | 65536 levels(16 bit ) |
7 | Display Color | 16M |
8 | Frame Frequency | ≥60Hz |
9 | Refresh Frequency | ≥1920Hz |
10 | Uninterrupted Working Hours | ≥72 hours |
11 | Screen Life-span | ≥100,000 hours |
12 | MTBF | ≥5,000 hours |
13 | Discrete Blind Spot Rate | <1/10000 |
14 | Continuous Blind Spot Rate | None |
15 | Blind Spot Rate | <1/10000 |
16 | Protective Scale | For indoor use only |
17 | Screen Plainness | <±1mm |
18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius |
Humidity:10%~90% RH |
20 | Control Mode | Synchronous display with control PC by DVI |
21 | Control System | Linsn, Novastar or as you required. |
22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
23 | Interface | Standard Ethernet |
24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
25 | Certificate | CE, ROHS, FCC |
Product Series: Rental led display 500mm*500mm*70mm
Why GM LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning: Manufacturing golden quality, Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top LED display factory since 2006, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.
Services:
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10Packing>>>For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packingFor aluminum cabinet of led rental stage display,we usuallu use flight case to packingOne wooden case including 2 cabinets,one flight case including 6 cabinetsShippment>>>By air or sea,FOB shenzhen UPS/DHL/Fedex/Express(door to door)and so onDelivery time>>>within 20 days counting from 30% prepayment arrived at GM account.Payment term>>>T/T(30% deposit,the remained 70% payment made before factory shipment )Western union/paypal/L/C and so onQuality assurance>>> We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products. FAQ1:What is the warranty of your led display?A:We offer 5 years warranty.and more than 100000 hours screen life span 2:what is your payment term?How long it takes to delivery?A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day 3:How can you ensure the led display product quality?A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use. 4:What is your pre-sale and post-sale service?A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours. For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.Currently, GM Technology LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions.For more details, please feel free to contact us. We will give you best service and timely reply.Contact usMobile : +86 13692105755Website:Http://led-gm.en.made-in-china.comWelcome to Shenzhen China!!!!!!
