• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：7.8mmx15.6mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：8192 Dots,M2
• Scanning Mode：1,8 Scan

=== Base Info ===

• Model NO.：TR-P7.8x15.6S
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Aluminum
• Cabinet Weight：7kg
• Brightness：1000-4000nits
• Refresh Rate：1920-3840Hz
• Ingress Protection：Front,Rear: IP43
• Maintenance Model：Front Maintenance
• Control System：Nova
• Transport Package：Plywood Case
• Specification：500x1000mm Cabinet
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：4000m2,Month

=== Description ===

Basic Info.

Model NO. TR-P7.8x15.6S System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Cabinet Material Aluminum Cabinet Weight 7kg Brightness 1000-4000nits Refresh Rate 1920-3840Hz Ingress Protection Front/Rear: IP43 Maintenance Model Front Maintenance Control System Nova Transport Package Plywood Case Specification 500x1000mm Cabinet Trademark LEDventure Origin China HS Code 8528591090 Production Capacity 4000m2/Month

Product Description

Good Quality Indoor P7.8x15.6 Advertising LED Transparent Billboard

1. Main Features & Functions

LED transparent screen similar to the LED glass screen. As the name suggests, it is the LED display for the pursuit of better permeability, reduce or change the material from the product. Most of this screen is used to install a glass place, it is also known as transparent screen.

1. 1 The larger the distance, the greater the permeability.
Industry P8 glass screen permeability of about 45%, while the our TR-P7.8x15.6 transparent LED screen can do 65% permeability! The highest product can achieve more than 80% of the permeability.
1.2. The smaller the point spacing, the better the clarity of the screen when playing video. Industry can produce a minimum glass screen spacing of 5mm; TR Series LED transparent screen minimum spacing is 3.9mm, and 3.9mm has been mass production, in Shanghai, Shanxi, Xinjiang, Southeast Asia, Europe and the United States and other places have project case.
1.3 The box 500 * 500/ 500 * 1000 easy disassembly.
1.4 Easy to install. Now the glass screen on the market, almost all of the use of glue placement, installation costs are high, and the use of glue for some time after the aging, fall off, become the main reason for the glass screen sales, but also cause serious security risks. TR Series as the transparent screen that can lift the equipment can also be installed, but also made TV screen, advertising machine screen, stand cabinet screen. Good security, low installation costs.
1.5 Maintenance is very simple. Module size is 250*250mm,fast and simple, low maintenance costs, eliminating technical distress

2. Main Technical Specifications

PARAMETERS	DESCRIPTION
Product Model	TR-P7.8mmx15.6S
Pixel Pitch	7.8mmx15.6mm
LED encapsulation	SMD1921
Pixel configuration	1R1G1B
LED wavelength	R:620-625nm  G:525-529nm  B:472-478nm
Viewing angle	H: 120°; V: 120°
Physical density	8192 pixels / M2
Panel size	W500mm x H1000mm
Pixels per panel	64x64 dots
Panel material	Aluminum
Panel weight	7kg
Ingress protection	Front/Rear: IP43
Brightness	≥5500 Nits
Recommended viewing distance	4M
Driving method	1/8 scan
Video frame rate	1920-3840Hz
Input voltage	110-220VAC+-10%
Input power frequency	50-60Hz
Input power <max>	200watts
Input power <typical>	100watts
Color	4.4 trillion
Gray scale	65536 levels per color
Brightness control	256 levels of each color(manually),8 levels of each color(automatically)
Contrast ratio	1000:1
Processing depth	16bits
Operating temperature/humidity	-20ºC - +50ºC/ 10-90%RH
Storage temperature/humidity	-40ºC - +60ºC/ 10-90%RH
Life time	≥100,000 Hours
Input signal	RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION, etc
Certifications	CCC,CE,FCC,ETL,EMC

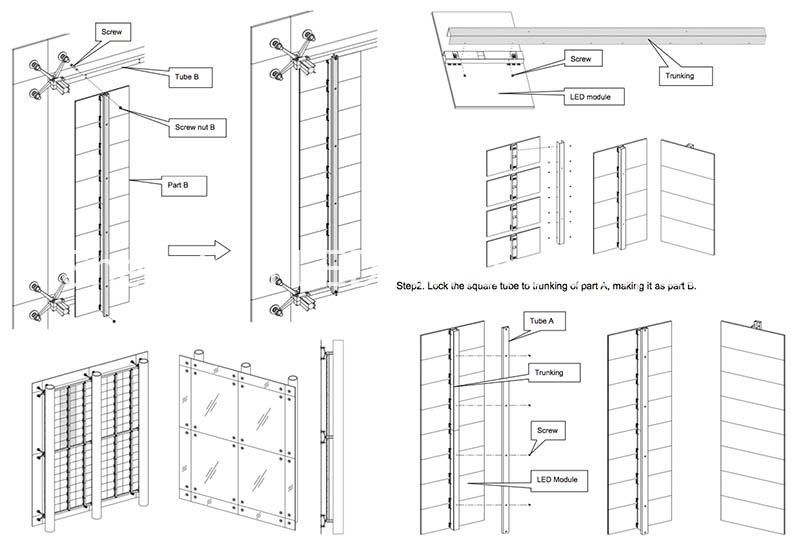

3. Details & Installation

According to statistics, the total area of China's modern glass curtain wall has more than 70 million square meters, mainly concentrated in urban areas, such a huge amount of glass curtain wall, outdoor media advertising is a huge potential market, the market advertising value Was fully developed in the city outdoor advertising resources increasingly depleted circumstances, the glass curtain wall is a new blue ocean field. Transparent LED display has opened up a new field of application, with broad market prospects, especially for the "architectural media" field.



4. LEDventure Company
5. Certifications


6. Packing & Shipping
