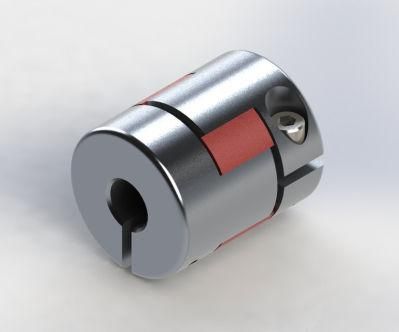

Flexible Standard Mechanical Jaw Coupling

Jiaxing City Qunbang Hardware Co., Ltd. / 2022-06-27

Flexible Standard Mechanical Jaw Coupling

  • Shaft Hole:8-24
  • Torque:>80N.M

=== Base Info ===

  • Model NO.:LT
  • Bore Diameter:14mm
  • Speed:4000r,M
  • Structure:Flexible
  • Material:Cast Iron
  • Type:Plum Coupling
  • Terms of Shipment:by Sea
  • Applications:Conveying Equipment
  • Connection:Female
  • Transport Package:Depend on Your Quantity
  • Specification:as your requirement
  • Trademark:Huading
  • Origin:China
  • HS Code:84836000
  • Production Capacity:5000PCS,Month
  • Package size per unit product:274.00cm * 355.00cm * 360.00cm
  • Gross weight per unit product:52.000kg

=== Description ===
TypeNominal torque
N·mSpeed
rpmBore diameter (mm)
d1,d2,dzLength of bore(mm)DASLimited compensationMass
kgRotary
Inertia
kg·m2Y TypeJ,J1,Z TypeRadial
mmAngleIronSteelIronSteelLL1L mm     LT16.366008800992014 711830.21°30´0.820.000510,1110,1125171212,143220LT2165500760012,1412,143220 801830.21°30´1.200.00081616,18,19423042LT331.54700630016,18,1916,18,19423042953540.21°30´2.200.00232020,22523852LT4634200570020,22,2420,22,245238521063540.21°30´2.840.0037-25,28624462LT51253600460025,2825,286244621304550.31°30´6.050.01230,3230,32,35826082LT62503300380030,35,3832,35,388260821604550.31°00´9.570.0284040,4211284112LT75002800360040,42,4540,42,45,48112841121904550.31°00´14.010.055LT87102400300045,48,50,5545,48,50,55,56112841122246560.41°00´23.120.1340-60,63142107142LT910002100285050,55,5650,55,56112841122506560.41°00´30.690.213060,6360,63,65,70,71142108142LT1020001700230063,65,70,71,7563,65,70,71,751421081423158080.41°00´61.400.66080,8580,85,90,95172132172LT1140001350180080,85,90,9580,85,90,95172132172400100100.50°00´120.702.122100,110100,110212167212LT12800011001450100,110,120,125100,110,120,125212167212475130120.50°00´
0°00´210.345.39-13252202252LT13160008001150120,125120,125212167212600180140.60°00´419.3611.58130,140,150130,140,150252202252160160,170302242302NOTE:
1.Coupling weights in the sheet are calculated according to the minimum diameter and maximum length of the shaft hole.
2.Short overloading can not exceed 2 times rated normal torque.
3.Type of shaft holes, the lengths of L and L1 also can be produced as customer requirements.
4.Rotational inertia are similar value.
