Helical Gearmotor F Series

• Application：Machinery, Marine, Agricultural Machinery
• Hardness：Hardened Tooth Surface
• Installation：Parallel Shaft
• Layout：Coaxial
• Gear Shape：Bevel Gear
• Step：Two Step or Three Step

=== Base Info ===

• Model NO.：F Series
• Type：Gear Reducer
• Color：Blue, Silver
• Size：27-157
• Transport Package：Plywood Case
• Specification：CE SGS
• Trademark：Starshine Drive
• Origin：China
• HS Code：8483402090
• Production Capacity：5000PCS,Per Month

=== Description ===

Basic Info.

Model NO. F Series Type Gear Reducer Color Blue, Silver Size 27-157 Transport Package Plywood Case Specification CE SGS Trademark Starshine Drive Origin China HS Code 8483402090 Production Capacity 5000PCS/Per Month

Product Description

F series Parallel Shaft-Helical Geared Motor Characteristics

1.Features:

1. High efficiency: 92%-94%;
2. Parallel output, compact structure, large output torque, smooth operation, low noise and long service life.
3. High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, grinding process to ensure high precision and stable running.
4. High interchangeability: highly modular, serial design, strong versatility and interchangeability.

2. Technical parameters

Ratio	3.77-276.77
Input power	0.12-200KW
Output torque	3.5-21700N.m
Output speed	5-352rpm
Mounting type	Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input Method	Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release	HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position)
Thermistor	TF(Thermistor protection PTC thermisto) TH(Thermistor protection Bimetal swotch)
Mounting Position	M1, M2, M3, M4, M5, M6
Type	F37-F157
Output shaft dis.	25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material	HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material	HT250 High strength cast iron from R97 107,137,147, 157,167,187
Heat treatment technology	carbonitriding and hardening treatment
Efficiency	92%-94%
Lubricant	VG220
Protection Class	IP55, F class

Starshine Drive

Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".
Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.



Our Team

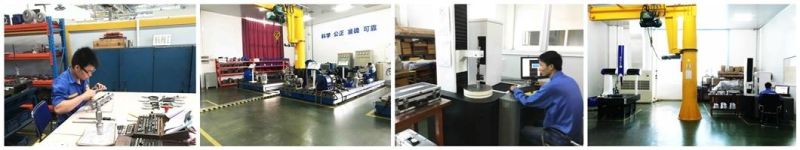

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value



3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective
measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
 found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the
product is a product inspection to determine the qualified products.

7. Certification.
All our products get ISO & CE & UL certification.
