24V 2110 LED Light Strip / Tape

• Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
• Power：9.6W
• Emitting Color：Changeable
• Voltage：24V
• IP Rating：IP68
• LED Color：2700-7000K

=== Base Info ===

• Model NO.：R0E0LW04B
• Lm/M：1056
• FPC Width(mm)：4
• Transport Package：DHL
• Specification：37*34*34cm
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：5000000

=== Description ===
Life Span50000HDriving Methodconstant voltageAvailable ColorWW/W/CWAngel>120°Working Temperature-40ºC-50ºCStore Temperature-50ºC-60ºCIP degreeIP20-68

Wires & Series Connection LengthWiresInput end connect two-core RVV red and blackwire,Red:VI+;Black:VI-Stand Length In Serial Connection5mMaximum Length In Serial Connection≤5m
Dimension(Unit:mm):

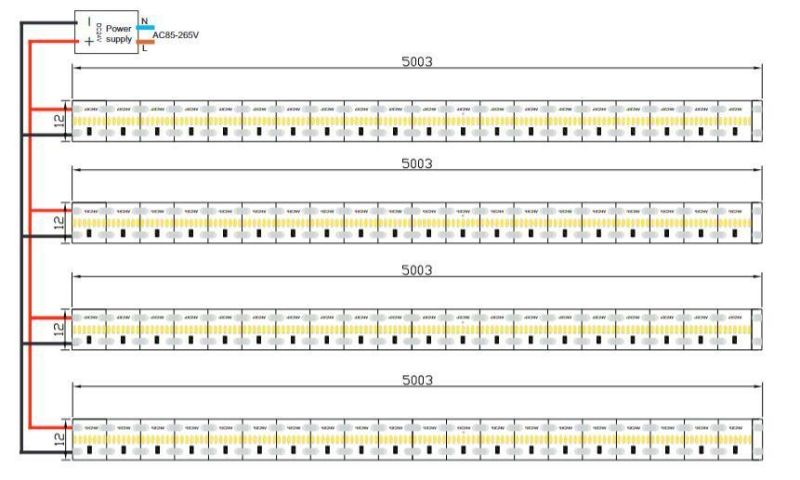

Connection Diagram(Unit:mm):
Wavelength Scope(nm/K)Red lightGreen lightBlue lightYellow lightWarm whiteWhite lightCool white619-635512-528463-475584-5952700-33005500-7000>8000
Connection type:
Standard:2PIN-8mm,2PIN10MM,4PIN10MM
