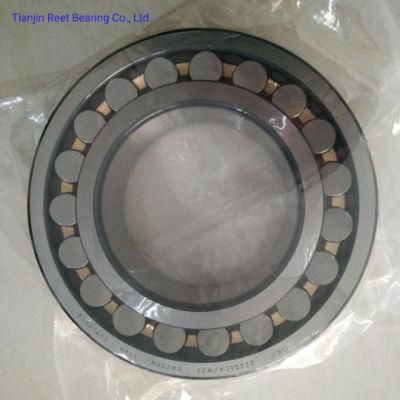

22244 Cc/W33 Spherical Roller Bearing Ball Bearing and Needle Bearing with Sk F NSK

• Rolling Body：Roller Bearings
• The Number of Rows：Multi-column
• Outer Dimension：Medium and Large(120-190mm)
• Material：Bearing Steel
• Spherical：Aligning Bearings
• Load Direction：Thrust Bearing

=== Base Info ===

• Model NO.：22244 CC,W33
• Separated：Unseparated
• Precision Class：ABEC1-7
• Internal Diameter：220 mm
• Outer Diameter：400 mm
• Width：108 mm
• Transport Package：Industrial Package
• Specification：standard
• Trademark：SK F NSK RTB
• Origin：China
• HS Code：8482300000
• Production Capacity：10000,Month

=== Description ===

Basic Info.

Model NO. 22244 CC/W33 Separated Unseparated Precision Class ABEC1-7 Internal Diameter 220 mm Outer Diameter 400 mm Width 108 mm Transport Package Industrial Package Specification standard Trademark SK F NSK RTB Origin China HS Code 8482300000 Production Capacity 10000/Month

Product Description

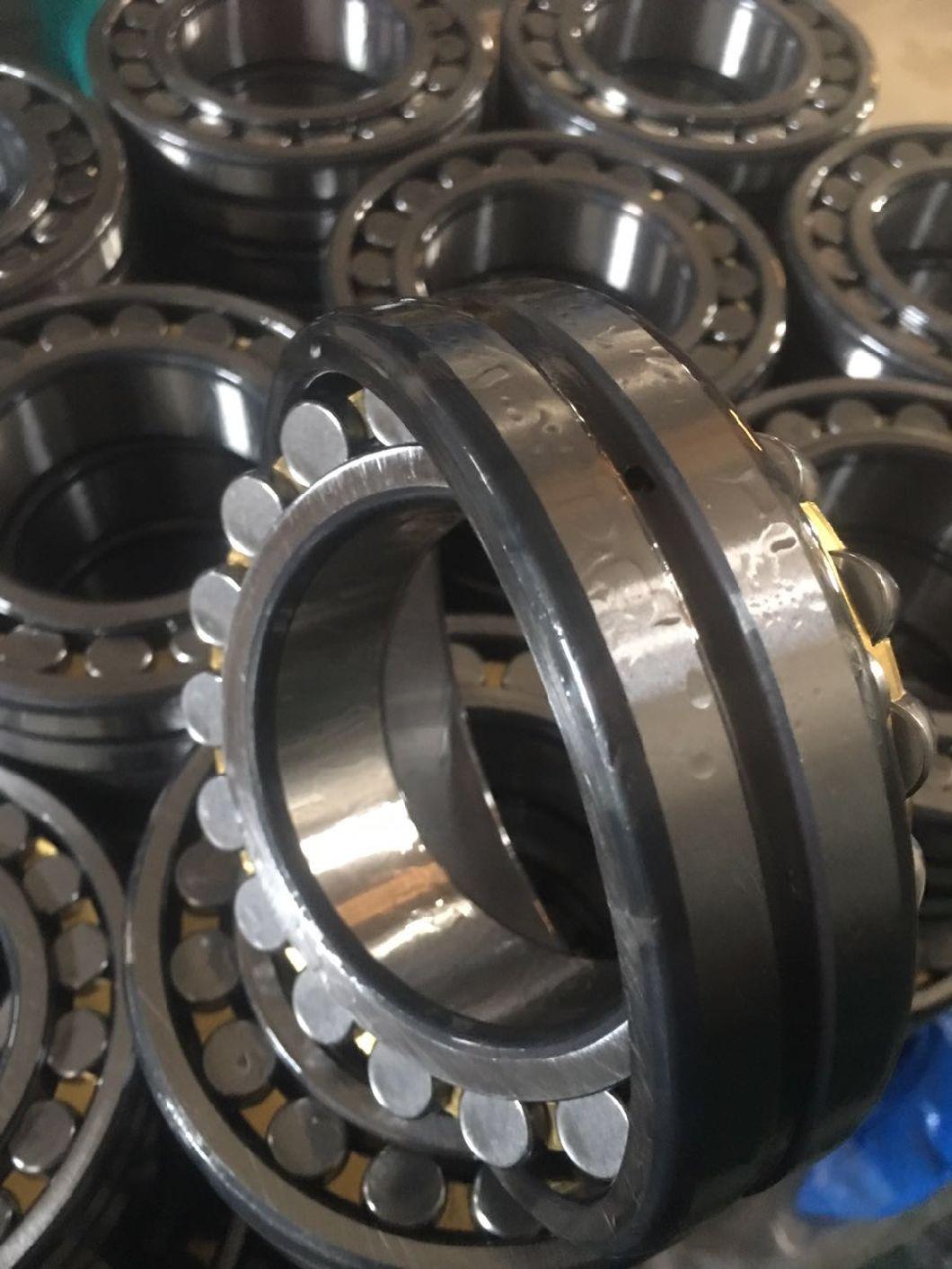

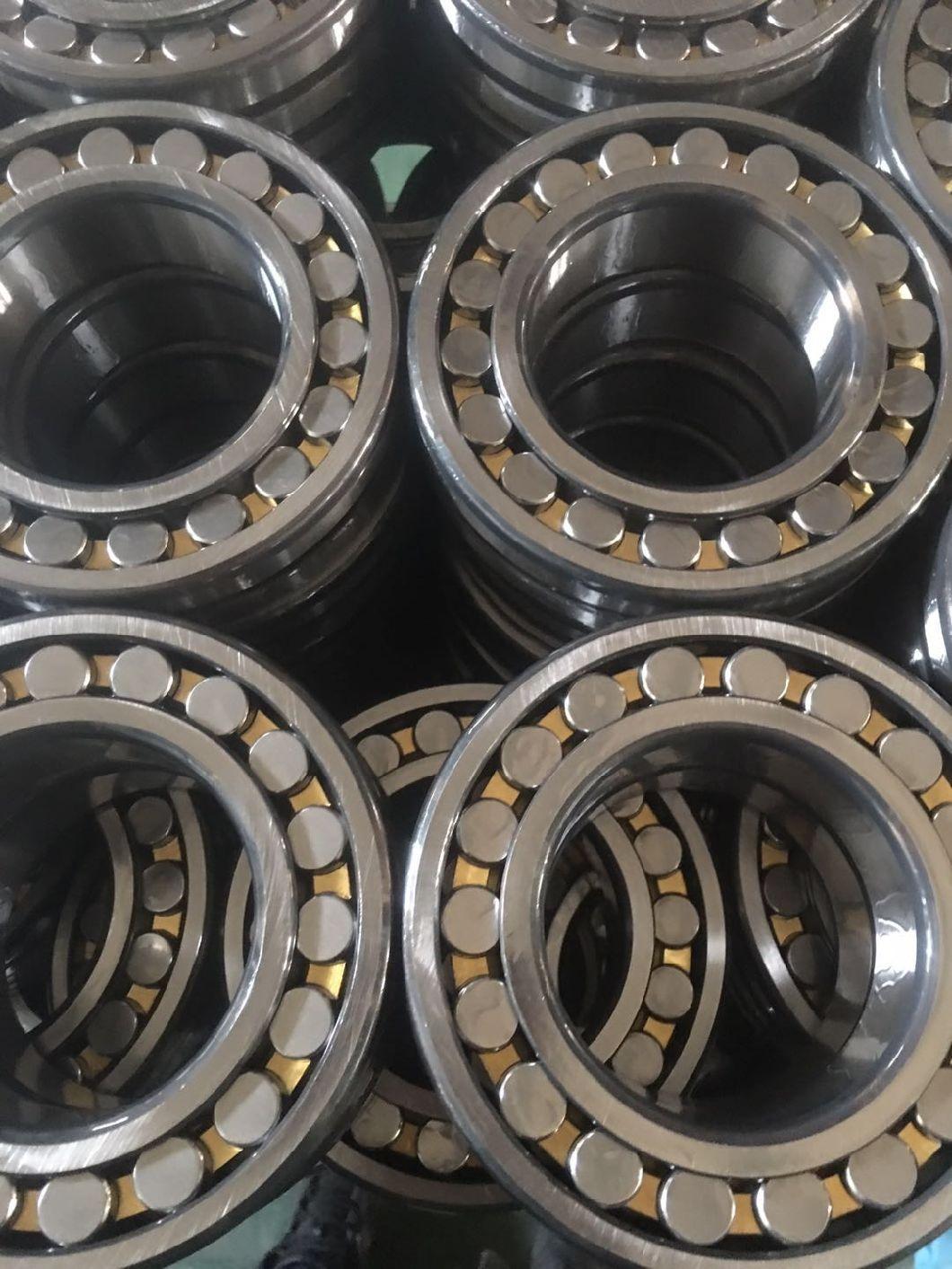

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. Spherical Roller Bearings are designed to be more robust by carry heavier loads but at lower maximum speeds. These bearings have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. '

Features of Spherical Roller Bearings
1). High Precision and Long Lifespan
2). Able to accommodate both radial and thrust loads
3). Less coefficient of friction
4). Available in arrange of Polyamide, steel and brass cage assembles
5). Open and sealed versions available

Industrial Applications of Spherical Roller Bearings
Spherical Roller Bearings are non - separable double - row radial bearings.
Both rows of barrel shaped rollers rotate, in parallel, within the spherical outer ring. This allows excellent alignment compensation, caused by machining and mounting errors, between the shaft and housing.
Spherical roller bearings are typical bearings for heavy machinery and mining.






offer all kinds of brands with high copy.

OEM service also
