Curtis 1313 Programmer Handle Set Made in China Programmer

Luoyang Beeway Group / 2022-06-23

Warranty：Online
Testing Equipment Type：Controller

=== Base Info ===

Model NO.：1313-4331
Certification：CE, RoHS
Update Method：by Hard Disk
Condition：New
Standard：Standard
OEM Level Programmer：Full Programming Function
Operating Ambient Temp. Range：-20°c to 50°c (-4°f to 122°f)
Package Environmental Rating：IP 53
Dimensions (L×w×h)：190*100*36 mm (7.5"*3.9"*1.4")
Transport Package：Carton
Specification：0.27 kg (0.6 lb)
Trademark：Curtis
Origin：Anhui, China
Production Capacity：3000pieces,Month
Package size per unit product：10.00cm * 7.00cm * 6.00cm
Gross weight per unit product：2.000kg

=== Description ===
SPECIFICATIONS:

Overview:
The new Curtis 1313 handheld programmer is a powerful and intuitive programming and diagnostic tool. Model 1313 enables parameter files to be created and edited online or offline, transferred to another controller for cloning, or saved onto a PC or SD card.
The Model 1313 performs comprehensive programming and troubleshooting tasks for all vehicles that use Curtis programmable motor controllers or control systems.
There are four access levels:
- KEY FEATURES:
  - Direct access to applicable Curtis motor speed controllers via CANopen network.
  - Fully compatible with Curtis next gen F series and all existing 1313 programmable motor speed controllers.
  - Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
  - Backlight for easy viewing in low-light environments.
  - Cloning feature and 64 Mb internal memory allows multiple parameter files to be stored in the Handheld Programmer, making it easy to transfer settings to other vehicles.
  - Advanced troubleshooting capabilities for all vehicles that use Curtis programmable motor controllers or control systems.
  - AA Battery compartment allows programs to be edited without having to be connected to a system.
  - Multiple language support includes English, German, Spanish, French, and Italian.
  - Monitoring function allows real-time viewing of controller activity.
  - Icon based graphical user interface allows for quick and intuitive menu navigation.
  - Dedicated buttons for "help" and "favorites" provide for direct access to commonly used features.
  - Comprehensive help text offers solutions and information at the touch of a button.
  - Easily upgradeable via USB to ensure compatibility with future products and features.
  - The Model 1313 programmer is easily portable, with a tough rubber protective perimeter strip.
  - Programming kit comes complete with handheld programmer, Molex cable, zippered case, CANopen network DB-9 cable (where applicable), quick start guide.

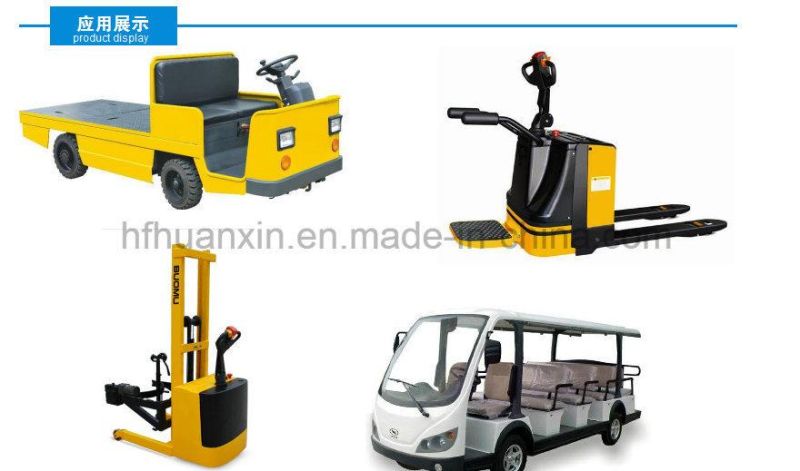

  Application:
