Outdoor Fixed Multi Function Bleacher Sport Stadium Steel Bleachers Seats

• Disassembly：Assembly
• Kind：Chair

=== Base Info ===

• Model NO.：Jy-790
• Condition：New
• Usage：Playground, Outdoor Party, International Exhibition, Roadshow Promotion
• Color：Optional
• Equipment：Seat System
• Operation：Manual or Motor
• Structure：Steel Dealt with Powder Coating
• Folded：Folded
• Transport Package：Export Standard
• Specification：customized
• Trademark：JUYI
• Origin：Chongqing, China
• HS Code：940179000
• Production Capacity：50000 PCS , Year
• Package size per unit product：600.00cm * 50.00cm * 40.00cm
• Gross weight per unit product：75.000kg

=== Description ===

Basic Info.

Model NO. Jy-790 Condition New Usage Playground, Outdoor Party, International Exhibition, Roadshow Promotion Color Optional Equipment Seat System Operation Manual or Motor Structure Steel Dealt with Powder Coating Folded Folded Transport Package Export Standard Specification customized Trademark JUYI Origin Chongqing, China HS Code 940179000 Production Capacity 50000 PCS / Year

Packaging & Delivery

Package size per unit product 600.00cm * 50.00cm * 40.00cm Gross weight per unit product 75.000kg

Product Description

Production
JY-790

Product Description
(1). Fabric design with 100% polyester or 100% acrylic for seat and back cover
(2). Powder coated steel frame support
(3). Wooden armrest
(4). Cold molded PU foam for seat and back, the density is 50±5kg/m³
(5). The thickness of the back is 90mm
(6). The thickness of the seat is 70-90mm
(7). The shell of the seat and back is painted wooden plate
(8). Color: Optiona

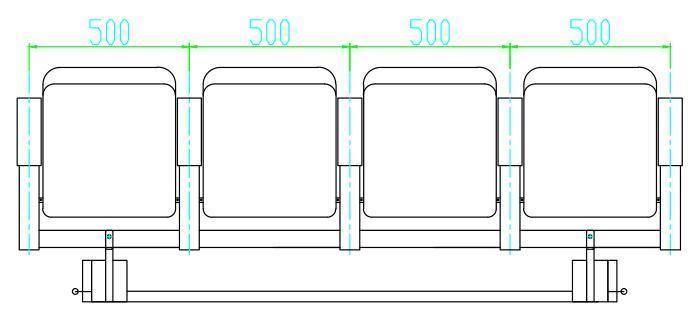

Row Riser Height:280-320mm
Row Depth :800-900mm
Seating Height: 410mm
seat depth: :640mm
The max layer for manual operate system: 8
The Max layer for electric operated system: 30 Rows
Girders:C180x50x3
Post, wheel cover:100x50x2.5
Main floor beam: 50x50x2
Flooring board :≥16mm plywood


Whole Structures of the telescopic seating system

1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of  3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.

Specifications for the system

Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V  50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel: ≥300kg/piece

Supply Ability And Trading Terms

1.T/ T with 30% Deposit. Blance befor shipment.
2.Small quantity for trail order allowed
3.Production Ability 50000 sets/month
4.Sample allowed.
5.Lead time: 15-20 working days after receiving your deposit

Factory Profile

Chongqing JUYI Theater Equipment CO., Ltd is Located in the mountain City of chongqing which is a new beautiful and vaitalized place
Our Company has become an advanced enterprise in recent years producing
Superior quality chairs and now has the high capacity of producing
Medium and top class theater chairs, telescopic bleachers and stage machines.

In the last several years, We have applied ancillary facilly to some
Important national and reginal projects. Such as 2008 Beijing Olympic
Games Press Certer Hall, 2014 Olympic Winter Games in Russia, PLA General Armament Department Conference Hall, Tianjin Binhu Theater,
Gansu JiaYuGuan Theater, Jiangsu Taizhou Theater, 2011 Shenzhen Universiade Yan Tian Stadium and so on.

Our Certification


Our Exhibition


Packing and shipping


Our Project Cases

FAQ

Q: Are you a trading company or the professional manufacturer?
A: We are the professional manufacturer.



Q: Can you provide OEM service?
A: Yes, we can.



Q: Do you provide a sample?
A: Yes, of course.



Q: Do you have any certificate?
A: We have CE, ISO, SGS and TUV.



Q: What's your MOQ, shipping and payment terms?
A: 50 seats.Orders less than our MOQ is acceptable but based on different shipping terms.
Shipping is from Chongqing Port, but other port in China is acceptable.
Payment: 30% T/T in advance, 70% balance payment after inspection before shipping.



Q: What's the warranty of your products?
A: 5 yearss. During this period, if any damage caused by non-artificial fault, we will provide the replacement spare parts, otherwise there will be a charge for those spare parts.



Q: What's the delivery time?
A: It's about 20-40 working days according to different quantities.



Q: Can you provide the CAD drawings?
A: Yes, we can make the plan for the clients according to the dimension and requirements.
