Auto Spray Paint Booth Advanced Car Spray Booth

• After-sales Service：on Line Service
• Warranty：12 Months
• Type：Painting Spray Booth
• Certification：CCC, CE, CSA, GS
• Substrate：Steel
• Brand：Guangli

=== Base Info ===

• Model NO.：GL
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：18000
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Heating System：Infrared Light as Optional
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：2 sets , 20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 18000 Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Heating System Infrared Light as Optional Transport Package Iron Frame Packing and Carton Packing Specification 2 sets / 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

Auto Spray Paint Booth Advanced Car Spray Booth

Guangli Spray Booth Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--Exhaust Fan: One unit of 5.5kw unilatcral centrifugal fan.
--Exhaust duct: 3m straight ducts,one 90° bend,and one 60°bend.
--Filtration:mounted at the rear wall panel.
--Roof filter:2 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--Upper light :8sets,4*40W per set.
--Control box:components made in china,overload,overheat,phase-lacking protection,straight driven motor.
--Omni-directional movable infrared light as optional.

Model	GL1-CE
External size (m)(LxWxH)	8.1x4.0x3.2
Internal size (m)(LxWxH)	6.9x3.9x2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m 3 /h )	18000
Air velocity (m/s)	0.25-0.3
Oil consumption (L/unit)	6-8
Power (kw)	7
Suitable Automobile Type	Saloon Car

GL1-CE Spray Booth Show




Guangli Spray Booth Series

Company Profile
GZ GUANGLI EFE CO.,LTD is a professional manufacturer specializing in manufacturing Spray Booth and Car Lift since 1994,which covers 58,000M2 of grounding area and 36,000M2 of building area,having a good reputation among Chinese automaintenance enterprise.GuangLi Brand is one of the best
brand in China and exported to 90 different countries, the sales volume of Spray booth ranks top in this
 field.
Our products have been approved and authorized in many car manufacturers and
 thought highly of:Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.


Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the world-class production level among this industrial.

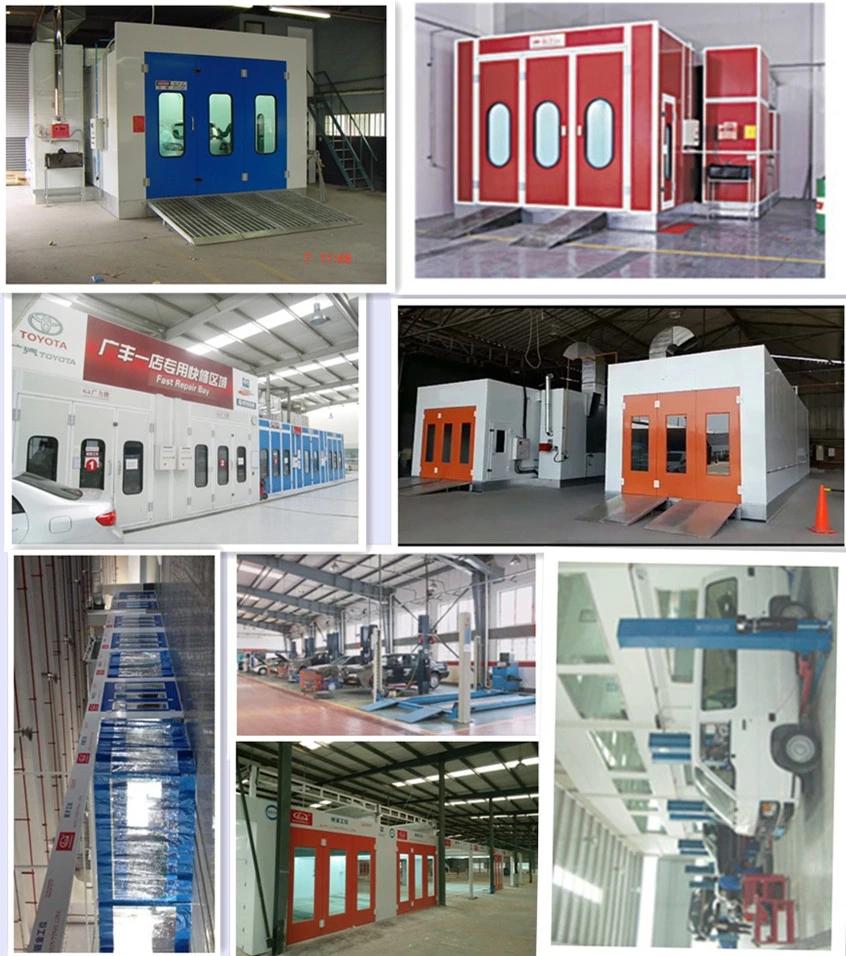

Successful Cases


Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.
