Face Milling Cutters
Xuzhou Shangli Artware Co., Ltd. / 2022-06-09
- Coating：Uncoated
- Tooth Form：Straight Tooth
- Tooth Space：Sparse Tooth
- Structure：Integral
- Material：High Speed Steel
- Type：Face Milling Cutter
=== Base Info ===
- Model NO.：metric and inch
- Size：50mm to 200mm
- Style：Universal Tool
- Work Type：Cut off
- Cutting Process：Milling Cutter
- Standards：64 HRC
- Transport Package：Industrial
- Trademark：stc
- Origin：Zhenjiang Jiangsu
- HS Code：82077090
- Production Capacity：5000PCS,Month
=== Description ===
Basic Info.
Model NO. metric and inch Size 50mm to 200mm Style Universal Tool Work Type Cut off Cutting Process Milling Cutter Standards 64 HRC Transport Package Industrial Trademark stc Origin Zhenjiang Jiangsu HS Code 82077090 Production Capacity 5000PCS/MonthProduct Description

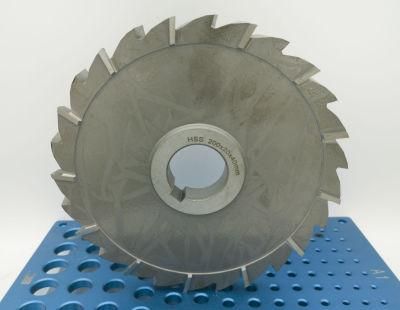

Face and side milling cutters.
Standards: DIN885, ISO2587.
High speed steel.
Side milling cutters are supplied in straight and staggered tooth form for light and heavy deep slot operations in steel and in most soft materials.
Specifications:
Outside dia: 50-200mm.
Thickness: 4-32mm
Inner hole dia: 25.4mm, 32mm.
Carbide tipped milling cutter available.
| Diamter | Width of face | Size of hole | Teeth |
| 2" | 1/4" | 1/2" | 14 |
| 2" | 3/8" | 1/2" | 14 |
| 2" | 3/16" | 5/8" | 14 |
| 2" | 1/4" | 5/8" | 14 |
| 2" | 3/8" | 5/8" | 14 |
| 2-1/2" | 1-1/4" | 7/8" | 16 |
| 2-1/2" | 5/16" | 7/8" | 16 |
| 2-1/2" | 3/8" | 7/8" | 16 |
| 2-1/2" | 1/2" | 7/8" | 16 |
| 3" | 3/8" | 1" | 18 |
| 3" | 7/16" | 1" | 18 |
| 3" | 1/2" | 1" | 18 |
| 3" | 3/8" | 1-1/4" | 18 |
| 3" | 7/16" | 1-1/4" | 18 |
| 3" | 1/2" | 1-1/4" | 18 |
| 4" | 1/2" | 1" | 22 |
| 4" | 9/16" | 1" | 22 |
| 4" | 5/8" | 1" | 22 |
| 4" | 11/16" | 1" | 22 |
| 4" | 3/4" | 1" | 22 |
| 4" | 1/2" | 1-1/4" | 22 |
| 4" | 9/16" | 1-1/4" | 22 |
| 4" | 5/8" | 1-1/4" | 22 |
| 4" | 11/16" | 1-1/4" | 22 |
| 4" | 3/4" | 1-1/4" | 22 |
| 5" | 1/2" | 1" | 24 |
| 5" | 9/16" | 1" | 24 |
| 5" | 5/8" | 1" | 24 |
| 5" | 11/16" | 1" | 24 |
| 5" | 3/4" | 1" | 24 |
| 5" | 13/16" | 1 | 24 |
| 5" | 7/8" | 1" | 24 |
| 5" | 15/16" | 1" | 24 |
| 5" | 1" | 1" | 24 |
| 5" | 1/2" | 1-1/4" | 24 |
| 5" | 9/16" | 1-1/4" | 24 |
| 5" | 11/16" | 1-1/4" | 24 |
| 5" | 3/4" | 1-1/4" | 24 |
| 5" | 13/16" | 1-1/4" | 24 |
| 5" | 7/8" | 1-1/4" | 24 |
| 5" | 15/16" | 1-1/4" | 24 |
| 5" | 1" | 1-1/4" | 24 |
| 6" | 5/8" | 1" | 26 |
| 6" | 11/16" | 1" | 26 |
| 6" | 3/4" | 1" | 26 |
| 6" | 13/16" | 1" | 26 |
| 6" | 7/8" | 1" | 26 |
| 6" | 15/16" | 1" | 26 |
| 6" | 1" | 1" | 26 |
| 6" | 5/8" | 1-1/4" | 26 |
| 6" | 11/16" | 1-1/4" | 26 |
| 6" | 3/4" | 1-1/4" | 26 |
| 6" | 13/16" | 1-1/4" | 26 |
| 6" | 7/8" | 1-1/4" | 26 |
| 6" | 15/16" | 1-1/4" | 26 |
| 6" | 1" | 1-1/4" | 26 |
| Diameter D | Width W | Hole size d1 | Number of teeth |
| 2-1/2" | 5/16" | 7/8" | 16 |
| 2-1/2" | 3/8" | 7/8" | 16 |
| 2-1/2" | 7/16" | 7/8" | 16 |
| 3" | 3/8" | 1" | 16 |
| 3" | 7/16" | 1" | 16 |
| 3" | 1/2" | 1" | 16 |
| 3" | 9/16" | 1" | 16 |
| 3" | 5/8" | 1" | 16 |
| 3" | 3/8" | 1-1/4" | 16 |
| 3" | 7/16" | 1-1/4" | 16 |
| 3" | 1/2" | 1-1/4" | 16 |
| 3" | 9/16" | 1-1/4" | 16 |
| 3" | 5/8" | 1-1/4" | 16 |
| 4" | 1/2" | 1" | 18 |
| 4" | 9/16" | 1" | 18 |
| 4" | 5/8" | 1" | 18 |
| 4" | 11/16" | 1" | 18 |
| 4" | 3/4" | 1" | 18 |
| 4" | 1/2" | 1-1/4" | 18 |
| 4" | 9/16" | 1-1/4" | 18 |
| 4" | 5/8" | 1-1/4" | 18 |
| 4" | 11/16" | 1-1/4" | 18 |
| 4" | 3/4" | 1-1/4" | 18 |
| 5" | 1/2" | 1" | 22 |
| 5" | 9/16" | 1" | 22 |
| 5" | 5/8" | 1" | 22 |
| 5" | 11/16" | 1" | 22 |
| 5" | 3/4" | 1" | 22 |
| 5" | 13/16" | 1" | 22 |
| 5" | 7/8" | 1" | 22 |
| 5" | 1/2" | 1-1/4" | 22 |
| 5" | 9/16" | 1-1/4" | 22 |
| 5" | 5/8" | 1-1/4" | 22 |
| 5" | 11/16" | 1-1/4" | 22 |
| 5" | 3/4" | 1-1/4" | 22 |
| 5" | 13/16" | 1-1/4" | 22 |
| 5" | 7/8" | 1-1/4" | 22 |
| 5" | 1" | 1-1/4" | 22 |
| 6" | 9/16" | 1" | 24 |
| 6" | 5/8" | 1" | 24 |
| 6" | 11/16" | 1" | 24 |
| 6" | 3/4" | 1" | 24 |
| 6" | 13/16" | 1" | 24 |
| 6" | 1/2" | 1-1/4" | 24 |
| 6" | 9/16" | 1-1/4" | 24 |
| 6" | 5/8" | 1-1/4" | 24 |
| 6" | 11/16" | 1-1/4" | 24 |
| 6" | 3/4" | 1-1/4" | 24 |
| 6" | 7/8" | 1-1/4" | 24 |
| 6" | 15/16" | 1-1/4" | 24 |
| 6" | 1" | 1-1/4" | 24 |
| 6" | 1-1/8" | 1-1/4" | 24 |
| 6" | 1/2" | 1" | 24 |
| 6" | 1-3/16" | 1-1/4" | 24 |
| 6" | 1-1/4" | 1-1/4" | 24 |
| 6" | 7/8" | 1" | 24 |
