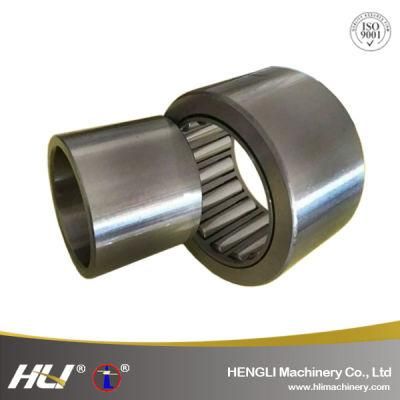

SN1210/CSN1210 Shell Type Needle Roller Bearing For Air Hammer
Hefei Pacesetter for New Material., Ltd / 2022-06-08
- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：7.144mm-60.325mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
=== Base Info ===
- Model NO.：SN1210,CSN1210
- Separated：Unseparated
- Structure Type：Needle Roller Bearing
- Precision Rating：P0 P6 P5 P4 P2
- For Shaft Diameter：3.969mm-50.800mm
- Clearance：C0, C2, C3, C4, C5
- Features：Inch Series With Cage
- Service：OEM ODM
- Certification：ISO9001:2008
- Main Market：Europe, North America, East Asia
- Transport Package：Neutral Packing Bearing
- Specification：19.05mm x 25.4mm x 15.88mm
- Trademark：HENGLI, LZ
- Origin：China
- HS Code：8482400000
- Production Capacity：500000 Pieces,Year
=== Description === Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was established in 1970 and is accredited by the Chinese Ministry of Machine Building. We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings. A - Manufacturer - Do it only with the Best; -Your Choice make different. Q2 - Our Products A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing Q3 - Process of our production A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing Q4 - How to customize bearing(non-standard) from your company? A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data. Q5 - What should I care before installation? A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be removed; it is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible with the preservative, it is necessary to wash and carefully dry the bearing. -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing swarf and dust. Q6 - How to stock and maintenance my bearings right? A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing; -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity or sudden and severe temperature changes that may result in condensation forming; -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
Basic Load Rating (KN)Limited Speed Mass Fw D C C Co rpm Kg YB2.5 2.5 3.969 7.144 3.96 1.12 0.96 32000 0.001 YB2.5 4 3.969 7.144 6.35 1.92 2 32000 0.001 YB34 4.762 8.731 6.35 2.24 2.16 24000 0.002 SN45 6.35 11.112 7.938 3.48 3.92 8000 0.003 SN55 7.938 12.7 7.938 4.48 4.96 6640 0.004 SN56 7.938 12.7 9.525 5.44 6.4 6640 0.005 SN57 7.938 12.7 11.113 4.96 4.64 6640 0.005 SN59 7.94 12.7 14.27 5.472 6.12 8000 YB64 9.525 14.288 6.35 3.68 4.4 12800 0.003 SN65 9.525 14.288 7.938 4.96 5.92 5600 0.005 SN66 CSN66 9.525 14.288 9.525 4.64 4.24 5680 0.004 SN68 9.525 14.288 12.7 6.16 6.16 5680 0.007 SN610 9.53 14.29 15.88 6.768 8.1 6800 SN76 11.112 15.875 9.525 6.08 8.8 5040 0.009 SN78 CSN78 11.112 15.875 12.7 7.92 12.8 5040 0.008 YBH78 11.112 17.462 12.7 10.24 12.88 11200 0.011 YB84 12.7 17.462 6.35 4.32 5.84 9600 0.004 YB86 12.7 17.462 9.52 6.64 10.24 9600 0.007 YB87 12.7 17.462 11.13 7.76 12.48 9600 0.008 SN88 12.7 17.462 12.7 9.44 14.72 4480 0.009 SN810 12.7 17.462 15.875 10.32 18.88 4480 0.011 SN812 12.7 17.462 19.05 12.72 23.6 4480 0.014 SNH87 12.7 19.05 11.112 7.52 9.96 4240 0.011 YBH810 12.7 19.05 15.88 13.28 19.2 9600 0.016 SN98 14.29 19.05 12.7 6.912 8.892 4560 YB910 14.288 19.05 15.88 11.6 21.76 8800 0.013 YB912 14.288 19.05 19.05 13.68 26.88 8800 0.015 SN105 15.875 20.638 7.938 5.12 5.36 3640 0.007 SN108 15.88 20.64 12.7 7.038 9.72 4080 YB1012 15.875 20.638 19.05 14.56 29.92 7600 0.017 YBH108 15.875 22.225 12.7 12.24 18.32 7600 0.015 SN116 17.462 22.225 9.525 7.44 13.68 3360 0.009 SN118 17.46 22.23 12.7 7.704 10.62 3680 SN1112 17.46 22.23 19.05 11.16 17.28 3680 YB124 19.05 25.4 6.35 6.4 8.32 6400 0.009 SN128 19.05 25.4 12.7 12 20 3000 0.017 SN1210 19.05 25.4 15.88 11.7 14.94 3440 SN1212 19.05 25.4 19.05 14.04 18.72 3440 YB136 20.638 26.988 9.52 10.64 16.4 6000 0.014 YB138 20.638 26.988 12.7 14.24 23.76 6000 0.019 YBH1310 20.638 28.575 15.88 18.72 29.6 6000 0.031 YBH1312 20.638 28.575 19.05 22.24 36.96 6000 0.037 SN146 22.23 25.4 9.53 7.236 8.46 2960 SN148 22.225 28.575 12.7 13.92 25.2 2600 0.018 SN1412 22.23 28.58 19.05 14.76 21.24 2960 SN1416 22.23 28.58 25.4 19.08 29.88 2960 YBH1412 22.225 30.162 19.05 23.04 40 5600 0.029 YB168 25.4 31.75 12.7 15.84 29.36 4800 0.023 SN1612 25.4 31.75 19.05 16.02 24.12 2560 SN1616 25.4 31.75 25.4 20.88 33.84 2560 YBH168 25.4 33.338 12.7 17.04 27.84 4800 0.029 YBH1612 25.4 33.338 19.05 25.04 45.68 4800 0.045 YBH1616 25.4 33.338 25.4 32.56 63.84 4800 0.06 SN188 28.58 34.93 12.7 11.52 16.2 2240 SN1812 28.58 34.93 19.05 17.1 27 2240 SN1816 28.575 34.925 25.4 29.2 72 2080 0.059 YB1910 30.162 38.1 15.88 23.2 43.76 4000 0.043 YB2010 31.75 38.1 15.88 22.08 48.08 3600 0.035 SN2012 31.75 38.1 19.05 18 29.52 2080 SN2016 31.75 38.1 25.4 23.4 41.76 2080 YB2018 31.75 38.1 28.58 36.96 93.6 3600 0.064 YB2020 CSN2020 31.75 38.1 31.75 40.32 104.8 3600 0.068 SN228 34.93 41.28 12.7 12.42 19.44 1840 SN2212 34.93 41.28 19.05 18.72 32.4 1840 YB2220 34.925 41.275 31.75 42.4 115.2 3600 0.078 YB246 38.1 47.625 9.52 17.2 27.84 3200 0.038 YB248 38.1 47.625 12.7 23.44 41.52 3200 0.052 SN2414 38.1 47.63 22.23 28.08 41.04 1680 YB2416 38.1 47.625 25.4 44.96 96 3200 0.105 SN2420 38.1 47.63 31.75 39.24 62.64 1680 0 YB2610 41.275 50.8 15.88 30.24 58.48 2800 0.069 SN2812 44.45 53.98 19.05 25.92 38.88 1440 YB2816 CSN2816 44.45 53.975 25.4 48.56 111.2 2800 0.119 YB3012 47.625 57.15 19.05 38.96 85.6 2400 0.095 YB3216 50.8 60.325 25.4 52.32 127.2 2000 0.13
About Us
HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Certification
Industry Exibition and Our Packing, Shipping & Payment
FAQ
Q1 - What is our advantages?
