Customized Down Draught Industrial Paint Booth / Paint Baking Booth for Large/Heavy Vehicles

• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel

=== Base Info ===

• Model NO.：IT-9-5A
• Paint Mist Treatment：Dry-type
• Condition：New
• Fan：Direct-Drive Big Impeller Fan
• Motor：11kw, Siemens
• Burner：Riello Rg5d

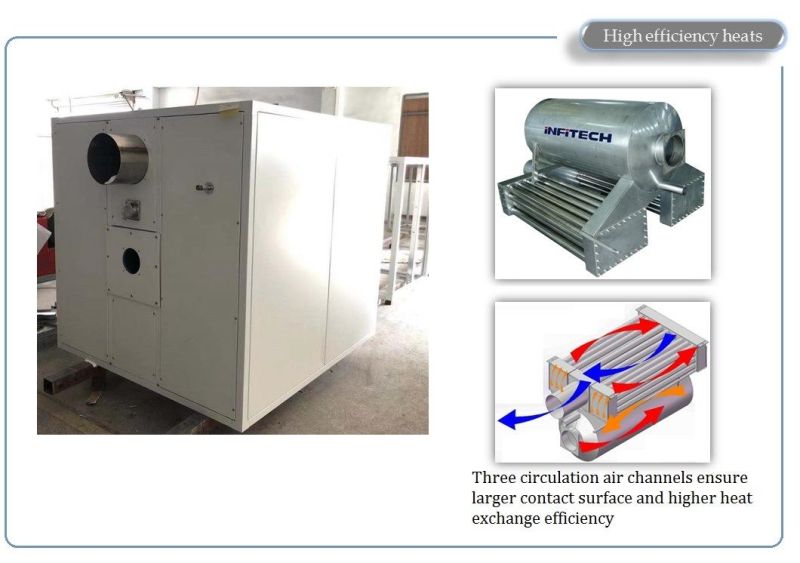

• Heat Exchanger：315kw
• Plenum：800mm High
• Extraction：Through 2 Rows of Pits
• Walls：60mm Thick Rock Wool Panels
• Lights：LED Lamp
• Illumination：>1,000lux
• Noise：<78dB
• Warranty：2 Years
• Filters：High Efficiency Filters
• Air Volume：35,000m3,H
• Empty Loaded Air Speed：0.21m,S
• Controls：Ce Standard
• Transport Package：Polyfoam and Metal Frame
• Specification：9000*5000*5000mm
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Pieces,Year

=== Description ===
CE Certified Industrial Spray BoothITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions9000 X 5000 X 5000mm (L X W X H)External dimensions9160 X 6810 X 5860mm(L X W X H)AirflowDowndraftPlenum800mm highExtractionThrough two rows of 800mm deep pits in the groundEntrance door1 set, 4270 X 4650mm (W X H)Walls60mm thick rock wool panelsCeiling lighting (LED)12 sets, each 4 X 18W, 864W totalSidewall lighting (LED)18 sets, each 4 X 18W, 1,296W totalBrightness>1,400LUXFiltersPre-filter, high efficiency filter, floor filter, exhaust filterAir intakeDirect-type turbine fan, 11KW SIEMENS motorAir exhaustDirect-type turbine fan, 11KW SIEMENS motorAir volume35,000m³/hEmpty loaded air speed+/-0.21m/sMaximum working temperature80ºCHeat exchanger power315KWBurnerRIELLO diesel burner RG5D (two stage)ControlsCE standard control boxRated power28KW
3. Details







4. Packaging & Loading



5. Typical projects


6. Company Profile
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.


Welcome to send inquiries! :-)
