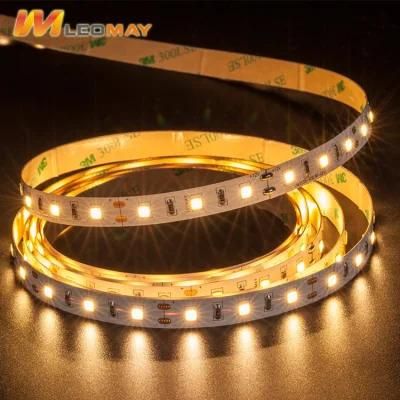

High Lumen small LED chip SMD3535 LED strips

• Certification：FCC, UL, EMC, RoHS, CE
• Power：11-15W
• Emitting Color：White
• Voltage：12V
• IP Rating：IP33
• LED Qty：60LEDs,M 3535

=== Base Info ===

• Model NO.：LM3535-WN60-WW-12V
• LED Suppliers：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz (front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• Waterproof Rate：IP20,IP65,IP67,IP68
• Transport Package：5m,Roll
• Specification：CE, RoHs, FCC
• Trademark：Leomay
• Origin：China
• HS Code：940540900
• Production Capacity：50000meter,Month

=== Description ===

Basic Info.

Model NO. LM3535-WN60-WW-12V LED Suppliers Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz (front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape Waterproof Rate IP20/IP65/IP67/IP68 Transport Package 5m/Roll Specification CE, RoHs, FCC Trademark Leomay Origin China HS Code 940540900 Production Capacity 50000meter/Month

Product Description

High Lumen small LED chip SMD3535 LED strips

Product Specification: '


Model NO	LM3535-WN60-12V-10MM
Product Name	SMD3535  60LEDS/M  LED strips
PCB Width	10MM
LED Qty/m	60leds/m 335
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	12W/M,60W/5M
Luminous(lm/m)	1320
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Product Features:

1, No UV/IR radiation and light source long life-span(>5000 hours).

2, Energy saving and environmental conservation,ECO-friendly,NO mercury

3, Superior color rendering.CRI>80,90,96

4. The color and width of PCB board could be choosed.

5. PCB thickness can be 2oz, 3oz.

6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.

7. The LED quantity can be choosed, from 30leds/m to 480leds/m.

8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.

9, Reliable SMD Source, super brightness, high CRI,low decay.

10,Easy installation using 3M tape or plastic clip to fix it

11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.

12,Print your logo on the PCB, and do customized packages are acceptable.



Our advantages:

1, UL,FCC,CE,RoHS,CCC,ISO certificates.

2, OEM or ODM is acceptable.

3, Strict quality control.

4,Fast delivery and good service,Email or inquiry will be replied in 2hours.(weekends or holidays within 12hours),and also good after-sale services.

5, Our main markets are European and North American,so high quality only.

6, Supply the full led strip products (with strip accessory ) to make you more easy with LED Business.

7,We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Meanwell power supply.Mi.light controller,connectors, etc.



Payment Terms:

T/T(Bank Transfer),Paypal,Western union,Money Garm,Credit Card,Master Card.



MOQ:

For standard products, no MOQ, 1M is also acceptable.



Company Information


Trade Shows



Catalog&Accessories



Packing & Delivery


customers Installation

FAQ
1) What are the best selling products in Leomay?
- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector

2) What is the main market for Leomay?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.

3) What is Leomay lead time for LED Strip?
Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

4) Can Leomay do custom assembly or offer OEM product?
Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.

5) Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

6) How to buy Leomay products?
In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
