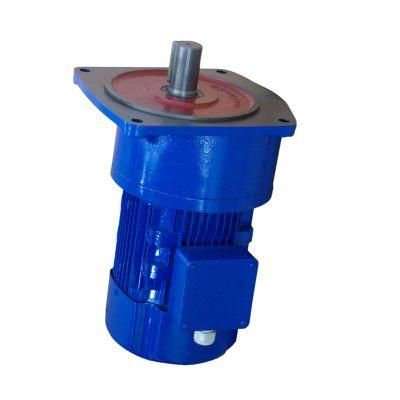

in Line Shaft Flange Helical Vertical Gear Reducer

• Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery
• Function：Speed Reduction, Speed Increase
• Layout：Coaxial
• Hardness：Hardened Tooth Surface
• Installation：Horizontal Type
• Step：Stepless

=== Base Info ===

• Model NO.：GLW22
• Type：Helical Gear
• Mouting Type：Flange Mounted
• Gear Housing Material：Casting Iron Housing
• Transport Package：Plywood Case
• Specification：ISO
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：10000PCS,Month

=== Description ===

Basic Info.

Model NO. GLW22 Type Helical Gear Mouting Type Flange Mounted Gear Housing Material Casting Iron Housing Transport Package Plywood Case Specification ISO Trademark SGR Origin China HS Code 8483409000 Production Capacity 10000PCS/Month

Product Description

In Line Shaft Flange Helical Vertical Gear Reducer

Technical data:
1. Ratio range: 3-20000
2. Input power: 0.12~4KW
3. Output speed: 0.09~832 r/min
4. Permit torque rang: ≤ 1225 N. M

Characteristic:
1. Closed case, long life, compact structure
2. Helical hard-teeth, low noise, high efficiency
3. Lightweight, favorable adaptability
4. Can be added braker

Model	G18 -G50
Ratio	5 - 1800
Output Torque	3 - 1300 N.m
Rating Power	0.1 -3.7Kw
Mounting Position	Foot OR  Flange
