Turbine P4.81 SMD Outdoor Full Color Rental LED Display Screen

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：4.81mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Model NO.：TBO-4.81
• Pixel Density：43264 DOT,M
• Scanning Mode：1,16 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, ETL, FCC
• Cabinet Color：Black
• Cabinet Material：Die Cast Aluminum
• Best Viewing Distance：>8.5m
• Transport Package：Plywood Case or Flight Case
• Specification：Cabinet size 500x500x91mm
• Trademark：TURBINE
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：4000 M2,Month

=== Description ===

Basic Info.

Model NO. TBO-4.81 Pixel Density 43264 DOT/M Scanning Mode 1/16 Scan Display Type LED Video Display Application Advertising Certification CE, ETL, FCC Cabinet Color Black Cabinet Material Die Cast Aluminum Best Viewing Distance >8.5m Transport Package Plywood Case or Flight Case Specification Cabinet size 500x500x91mm Trademark TURBINE Origin Shenzhen, China HS Code 8528591090 Production Capacity 4000 M2/Month

Product Description

Turbine P4.81 SMD Outdoor Full Color Rental LED Display Screen

Application:
1. It's a advanced LED screen which can be easily installed and removed.
2. Outdoor commercial advertising billboard, stage, banks, stock exchange centers, theme park, airport, schools, government agencies, exhibition, meeting rooms, cinemas, hotels, and a variety of  public facilities and etc.



Product feature:

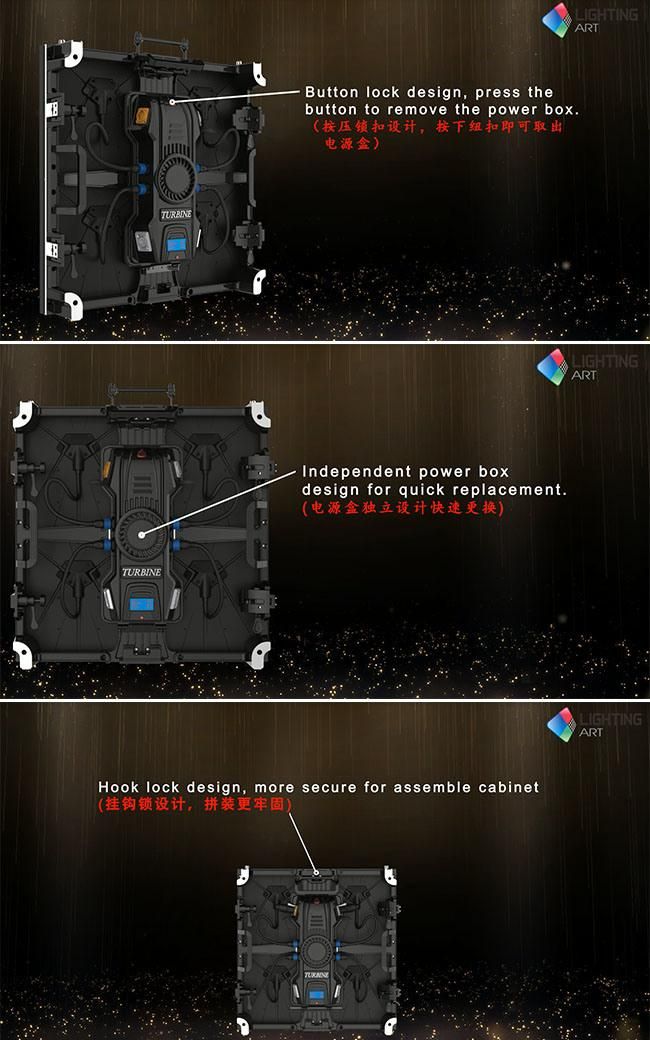

1. Highly integrated modular design, easy to replace.
2. New lock design, to achieve quick installation; curved connection optional.
3. The module power supply box is completely front maintained, saving maintenance time.
4. Integrated connection can be quickly inserted and removed, more stable and reliable, and the number of effective insertion and removal is up to 100,000 times.
5. High refresh and high gray, rich picture layer, high color saturation, anti-ghost PCB design.

Specification:

1	Model No.	TBO-4.8
2	Pixel Pitch (mm)	4.81
3	Module Size (mm)	250x250x15
4	Module Resolution (pixels)	52x52
5	Cabinet Size (mm)	500x500x91
6	Cabinet Resolution (pixels)	104x104
7	Pixel configuration	1RGB
8	LED Encapsulation	SMD1921
9	Work Voltage (DC)	5V
10	Driver Mode (Scan)	1/16
11	Cabinet Weight (kg)	8.8
12	Physical Density (pixels)	43264
13	Brightness (NIT)	5000
14	Gray Scale (BIT)	14
15	Contrast Ratio	3000:1
16	Refresh Rate (Hz)	3840
17	Viewing Angle (H/V)	±140°/±140°
18	Protection Grade	IP65
19	MAX Power Consumption (W/m²)	560
20	Average Power Consumption (W/m²)	224
21	Work Temperature	-20ºC~50ºC
22	Work Humidity	10%RH~90%RH
23	Optimal Viewing Distance	≥8.5m

The development ability:
1. The development of the TURBINE series takes us 4 months.
2. The original intention of TURBINE series is to save maintenance time for LED screen rental business.
3. We can provide all the accessories and software for a whole project. Including hanging bars, sending cards, video processor, software, flight case, power box, power cable, data cable, module mask, etc.
4. We are professional in designing and manufacturing high-end rental LED display screen.



We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.



Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test for each module.



1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
