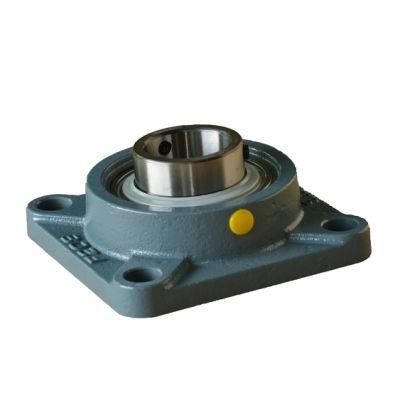

Pillow Block Bearing (UCF201 UCF202 UCF203 UCF204 UCF205 UCF206 UCF207)

• Aligning：Aligning Bearing
• Separated：Separated
• Rows Number：Single
• Raceway：Deep Groove Raceway
• Material：Bearing Steel
• Bearing Block Model：F

=== Base Info ===

• Model NO.：UCF201 UCF202 UCF203 UCF204 UCF205 UCF206 UCF207
• Bearing Material：Chrome Steel(Gcr15)
• Housing Material：Cast Iron(Ht200)
• Hardness：60-63
• Design：Standard Design
• Seals Type：Open Zz 2RS Zhr
• Coordination of Bearing & Housing：H7 & J7 & K7
• Work Temperature：-25~120
• Rotate Speed：3000r,Min
• Quality Certification：ISO9001: 2008 , GB , T 19001-2008
• Transport Package：Plastic Bag+ Single Color Box+ Carton + Pallet
• Specification：ABEC-1(P0)
• Trademark：FKD , HHB , FE
• Origin：Hebei, China
• HS Code：84832000
• Production Capacity：30000PCS,Day

=== Description ===

Basic Info.

Model NO. UCF201 UCF202 UCF203 UCF204 UCF205 UCF206 UCF207 Bearing Material Chrome Steel(Gcr15) Housing Material Cast Iron(Ht200) Hardness 60-63 Design Standard Design Seals Type Open Zz 2RS Zhr Coordination of Bearing & Housing H7 & J7 & K7 Work Temperature -25~120 Rotate Speed 3000r/Min Quality Certification ISO9001: 2008 , GB / T 19001-2008 Transport Package Plastic Bag+ Single Color Box+ Carton + Pallet Specification ABEC-1(P0) Trademark FKD / HHB / FE Origin Hebei, China HS Code 84832000 Production Capacity 30000PCS/Day

Product Description

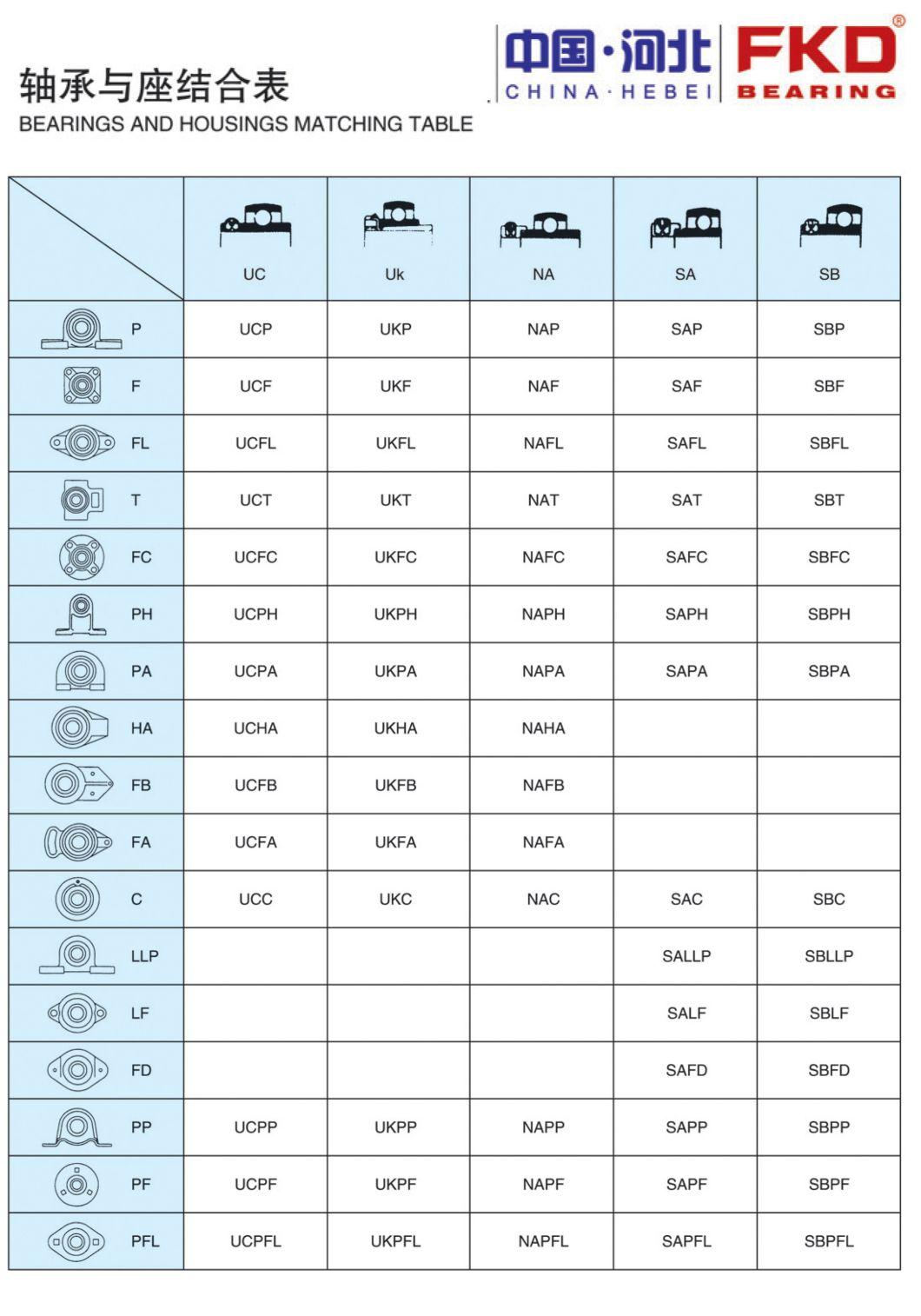

Sealling type:	Locking method:	Housing material:	Combinations of Insert Bearing and Bearing Housings:
-J type rubber seal	-Eccentric Locking Collar	-Cast Iron	H7
-H type metal seal	-Set Screws	-Ductile Iron	J7
-SL type dual seal	-Adapter Sleeve	-Pressed Steel	K7
-L3 type triple seal	-Concentric Locking Collar	-Stainless Steel
-F type seal		-Rubber Ring
-Combined seal
-Bearing Cover
-End-cover of Housing
