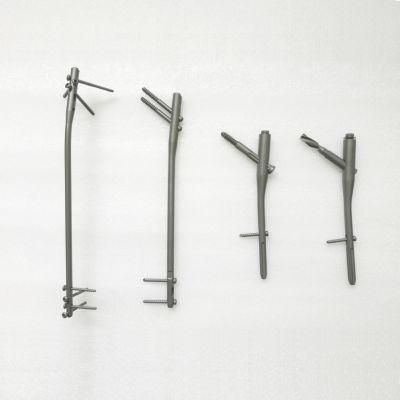

Nail Supplies Femoral Interlocking Intramedullary Nails Orthopedic Implant

• Certification：FDA, ISO, CE, ISO9001
• Disinfection：Without Disinfection
• Color：Transparent
• Application：Trauma
• Material：Titanium
• Certificate：ISO13485, ISO9001, Ce

=== Base Info ===

• Model NO.：CanPFN
• Transport Package：Cartoon
• Specification：170, 200, 240mm
• Trademark：Canwell,Customized
• Origin：Zhejiang
• HS Code：9021100000
• Production Capacity：1000,Month

=== Description ===
Product NameNail supplies Femoral interlocking intramedullary nails orthopedic implantMaterialThe CanPFN are made of Titanium alloy.ColorCustomizedStandard ISO 13485,ISO9001,QSR820,CEIndicationStandard PFN(170mm-240mm)
- Petrochanteric fractures(31-A1 and 31-A2)
- Intertrochanteric fractures(31-A3)
- High subtrochanteric fractures(32-A1)
Extended PFN(length 360mm-420mm)
- Low and extended subtrochanteric fractures
- Ipsilateral trochanteric fractures
- Combination fractures(in the proximal femoral)
- Pathological fracturesFeatures and Benefits:--Two functions achieved : anti-rotation and stable fixation
--Two interlocking options:
a. Helical blade: fill interspace to reduce bone loss.
b. Lag screw: offer better compression locking effect
--Long nail tip and flutes design to prevent stress concentration
- Medial-lateral angle of 5°.
--Inner thread design on the end of the nail makes easier for nail extracting.
--End cap with different heights.Product design philosophy:*Biomechanical stability fixation
*Minimally invasive operation technology






Instruments for CanPFN

Description	Qty.
Hexagonal Solid Screwdriver Length 248mm	1
Insertion Handle	1
Proximal Aiming Arm	1
Buttress Nut for Proximal Aiming Arm	2
Protection Sleeve for distal locking	2
Obturator for Distal Locking	2
Trocar for Distal Locking	1
Compression Nut	1
Protection Sleeve for blade	1
Protection Sleeve for lag screw	1
Obturator for Blade	1
Obturator for Lag Screw	1
Protection Sleeve for lag screw	1
Trocar	1
Connecting Nut	1
Aiming Arm for distal locking	1
Distal Aiming Connecting Shaft	1
Distal Targeting Device for Long Nail	1
Targeting Device Nut for Long Nail	1
Distal Outrigger	1
Distal Outrigger Nut for Long Nail	1
U-shaped Stabilizing Spacer	1
Location Shaft	1
Location Sleeve	1
Handle Connecting Nut	1
Universal Chunk with T-Handle	1
Radiographic Ruler	1
Protection Sleeve	1
Drill Sleeve	1
Ø5.2Protection Drill Sleeve	1
Temporary End Cap for the lag screw	1
Obturator	1
Ø5.2Drill Bit	1
Flat Drill with T-Handle	1
Proximal Reamer	1
Awl	1
Impactor	1
Quick Connection T-Handle	1
Ratchet Wrench for Nut, hexagonal	1
Slotted Hammer	1
Guide Wire Ø3.2×400	5
Depth Gauge for Guide Wire Ø3.2	1
Cannulated Drill Bit for cortex boneØ10.6/Ø3.2	1
Cannulated Drill Bit with limitØ10.6/Ø3.2	1
Fixation Sleeve  SW4.5/φ3.2	1
Screwdriver for PFN Blade	1
Extractor Connection shaft for blade	1
Counter-torque Wrench for blade	1
φ4.3 Drill Bitφ4.3/300mm	3
Pin Wrench SW3/SW5	1
Depth Gauge for Locking screw	1
Screwdriver,hexagonal SW3.5	1
Wrench with T-Handle	1
Extractor for Nail M8	1
Guide Wire with Hook φ2.8	1
Cannulated Screwdriver for end cap φ2.8/SW4/SW11	1
Cannulated Wrench for end cap SW11	1
Extractor for Blade SW4.5/φ3.2	1
Cleaning Wire	1
Lag Screw Holding shaft	1
Wrench shaft for Lag Screw	1
Instrument Tray	1

FAQ:

Q: Trading company or manufacturer?
A: We are manufacturer since 1994. Our location is in Jinhua, Zhejiang Province, East China.
     2 hours by high-speed train from Shanghai.

Q: How's quality? Any Certificate? Regions of sales?
A: Our products are approved by CE/ISO13485.
     At present our main overseas markets are Asia, South America and Europe.

Q: Regional Distribution?
A: Yes we are looking for and welcome distribution.
     Please contact us for discussion if you are interested to become our distributor.

Q: How long is delivery time?
A: Generally 7-15 days if stock available and 30-45 days if regular production needed.
    Depending on order quantity, product type, and other order factors and requirements.

Q: Samples available? Free or extra ?
A: We can accept sample order. With extra price.

Q: Terms of payment ?
A: T/T.

Q: Any OEM service?
A:  We can offer OEM service. Products can be made-to-order and with special requirements.
