Two Post Gantry Lift

Enping Yixinda Trade Center / 2022-06-23

Two Post Gantry Lift

  • Type:Double Cylinder Hydraulic Lift
  • Lifting Capacity:4.2t
  • Driving Type:Hydraulic
  • Certification:CE, ISO
  • Driving Motor Number of Mechanical Lift:2
  • Double Cylinder Lift Type:Planer-type

=== Base Info ===

  • Model NO.:YSY3.5
  • Shearing Lift Type:Big Shear Type
  • Condition:New
  • Brand:Amco
  • Design:Two Post
  • Loading Time:40-50s
  • Height Overall:3726mm
  • Width Overall:3425mm
  • Width Between Columns:2815mm
  • Transport Package:Wooden Case
  • Specification:CE, ISO
  • Trademark:AMCO
  • Origin:Shaanxi
  • Production Capacity:20-30 Set, Month

=== Description ===

Basic Info.

Model NO. YSY3.5 Shearing Lift Type Big Shear Type Condition New Brand Amco Design Two Post Loading Time 40-50s Height Overall 3726mm Width Overall 3425mm Width Between Columns 2815mm Transport Package Wooden Case Specification CE, ISO Trademark AMCO Origin Shaanxi Production Capacity 20-30 Set/ Month

Product Description


Two Post Gantry Lift

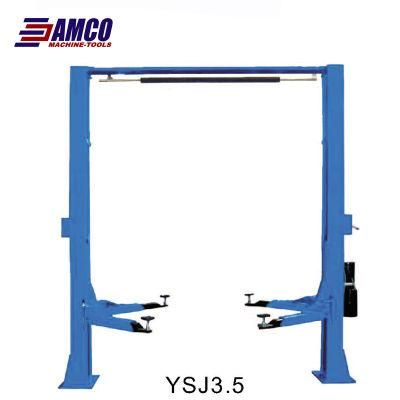

TWO POST GANTRY LIFT YSY3.5
1,4200kg clear floor 2-post-auto/car lift.

2,Two cylinder driving system.It ascents and descents smoothly.

3,Double safety locks.

4,Chain lifting system.

5,Cable synchronization.

6,The pump unit could be installed on either of columns.

7,A wide drive-through clearance.

8,220V/380V,the power supply is available for convenient use.



TECHNICAL DATA:
ModelYSY3.5
Loading capacity3500kg
Max.Loading height1900mm
Loading time40-50s
Height overall3726mm
Width overall3425mm
Width between columns2815mm
Drive- through clearance2400mm
Min.Height95mm
Power supply220V/380V
                                                                              Packing size :2.89*0.53*0.94(m)
                                                                                                   0.9*0.4*0.4(m)
