Light Aluminium Cabinet LED Billboard Indoor P3 P4 LED Display

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2.5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000pixels,M2
• Scanning Mode：1,32

=== Base Info ===

• Model NO.：P2.5
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：100nits
• LED Lamps：Epistar
• Driver IC：Constent Current
• PSU：MW
• Cabinet：Nano Plastic
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• System：Nova
• Voltage：AC110-240V
• IP Rate：IP31
• Viewing Distance：3meters
• Service Solution：Front Service
• Weight：7kg,PCS
• Installation：Back Bolted Hanging
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：576x576mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Ultra Light weight Full color Indoor Front service LED Display Panel Screen for advertising

Model Number

P2.5mm to 5mm

Pixel Pitch

2.5 to 5mm

Pixel Density(pixels/M2)

40000-160000 pixels

Pixel Configuration

1G1B1B

LED Type

Epistar, SMD

Module size(mm)

256x128mm, 160x160mm, 192x192mm

Module Resolution(pixels)

64*64 pixels (P2.5)

Min.Viewing Distance(m)

2.5-3meters

Brightness(nits)

100

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size(mm)

512x512mm, 480x480mm, 576x576mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization



Part 5: Installation methods, indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.





Part6: Packing information by plywood cases, packing well and easy to load,


Part7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part8: About LEDventure.

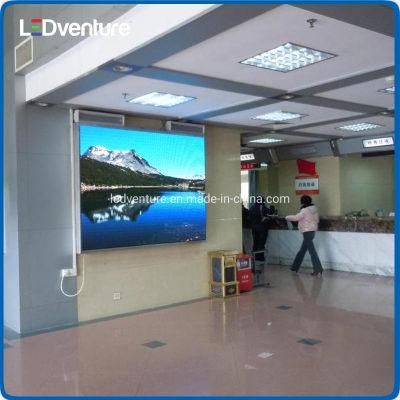

Part9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia,
