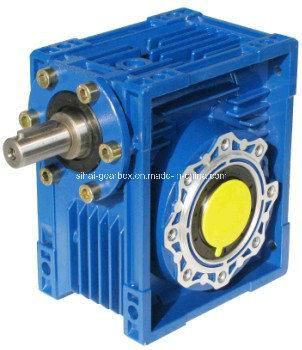

Motor Speed Reducer for Worm Gearbox

• Application：Motor, Reducer
• Hardness：Hardened
• Type：Worm and Wormwheel
• Output Speed：14-280rpm
• Input Speed：1400rpm
• Ouput Torque：2.6-1195n.M

=== Base Info ===

• Model NO.：NMRV025-NMRV090
• Power：0.06kw-15kw
• Bearing：NSK Bearing,Homemade Bearing
• Input Flange：56b14,71b5,80b5..
• Color：Blue
• Manipulate Way：Robotics
• Manufacturing Method：Rolling Gear
• Changes Way：Stepless
• Material：Aluminium
• Toothed Portion Shape：Worm and Worm Gear
• Transport Package：1 Set , Carton, Several Cartons , Wooden Pallet
• Specification：ISO9001
• Trademark：Chenxin
• Origin：Zhejiang Taizhou
• HS Code：8483409000
• Production Capacity：10000 Per,Month

=== Description ===

Basic Info.

Model NO. NMRV025-NMRV090 Power 0.06kw-15kw Bearing NSK Bearing/Homemade Bearing Input Flange 56b14/71b5/80b5.. Color Blue Manipulate Way Robotics Manufacturing Method Rolling Gear Changes Way Stepless Material Aluminium Toothed Portion Shape Worm and Worm Gear Transport Package 1 Set / Carton, Several Cartons / Wooden Pallet Specification ISO9001 Trademark Chenxin Origin Zhejiang Taizhou HS Code 8483409000 Production Capacity 10000 Per/Month

Product Description

Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in the sectors,like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing and plastics
 Technical data:
(1) Motor input power:0.06kw-15kw
(2)  Output torque:4-2320N.M
(3)  Speed ratio of worm gear peed reducer: 5/10/15/20/25/30/40/50/60/80/100
(4)  With IEC motor input flange: 56B14/71B14/80B5/90B5…
 Materials:
(1)   NMRV025-NMRV090: Aluminium alloy housing
(2)   NMRV110-150: Cast iron housing
(3)   Bearing: NSK bearing & Homemade bearing
(4)   Lubricant: Synthetic & Mineral
(5)  The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6)  With high quality homemade bearings, assembled NAK oil seals & filled with high quality lubricant.
Operation&mantenance
(1)When worm speed reducer starts to work up to200-400 hours, its lubricant should be replaced.
(2)The gearbox need to replace the oil after 4000 hours.
(3)Worm reduction gearbox is fully filled with lubricant oil after finshed assembly.
(4)Lubricanting oil should be kept enough in the casing and checked at a fixed time.
 Color:
(1)   Blue / Light blue
(2)   Silvery White
 Quality control
(1)  Quality guarantee: 1 year
(2)  Certificate of quality: ISO9001:2000
(3)   Every product must be tested before sending
