• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：1.875mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：284442dots,Sq.M
• Scanning Mode：1,32scan

=== Base Info ===

• Model NO.：JC-SMD-P1.875MM
• System Operating Platform：Win System
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP45
• Certification：CE, RoHS
• Warranty：1 Year
• LED Lamp：Kinglight
• Refresh：≥2880Hz
• Brightness：1000nits
• IC：Icn5020,2028
• Lifetime：100000hours
• Module Size：240X240mm
• Cabinet Type：Front Service LED Cabinet
• Transport Package：Plywood Case,Flight Case
• Specification：480X480MM
• Trademark：JC
• Origin：China
• HS Code：8528591090
• Production Capacity：5000PCS,Month

=== Description ===

Basic Info.

Model NO. JC-SMD-P1.875MM System Operating Platform Win System Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP45 Certification CE, RoHS Warranty 1 Year LED Lamp Kinglight Refresh ≥2880Hz Brightness 1000nits IC Icn5020/2028 Lifetime 100000hours Module Size 240X240mm Cabinet Type Front Service LED Cabinet Transport Package Plywood Case/Flight Case Specification 480X480MM Trademark JC Origin China HS Code 8528591090 Production Capacity 5000PCS/Month

Product Description

Super HD indoor SMD Full color Led Advertising TV P1.875 Led Display Front Service

Led screen parameter

Technical DataModel	PH1.875
Pixel Pitch	1.875mm
Physical Density(pixels/m²)	360000
LED Shape & Size	SMD 3 in 1
LED Arrangement	1R1G1B
Module Size(mm)	240x240
Module Resolution	128x128
Drive Mode	Dynamic 1/32 Duty Constant Current
Brightness	≥1000cd/m²
Contrast(cd/m²)	≥2000:1
View Angle, 50% Brightness	140°/140°
Minimum View Distance	1.87m
Grey Scale	10bits/1024levels
Color Capacity	1.07billion
Maximum Power Consumption	900W/m²
Ave.Power Consumption	300W/m²
Operation Power Source	AC90-260V 50-60HZ
Frame Frequency	60-85HZ
Refresh Rate	≥2880HZ
Brightness Adjustment	0-100% 8 levels automatic
Gamma Correction	-5.0-5.0
Correction Scale Level	16bits;18bits
Color Temperature	5000-9300K
Brightness Correction	Pixels, Module, Cabinet Correction
Input Source Support	Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance	UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature	-40°C - 65°C
Operating Humidity	10-90%RH
Operating Life Span	100,000Hours
MTBF	6500 Hours
Protection Ratings	IP45
Out of Control Rate	0.01%

P1.875 indoor led mdoule

P1.875 indoor led cabinet

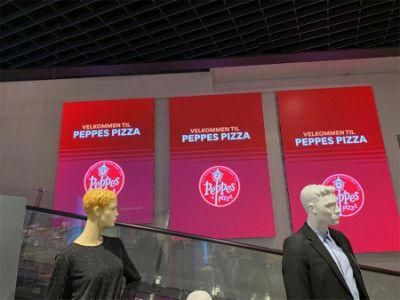

P1.875 indoor HD led display project



Feature and Advantage:
1.Seamless seams

2. High brightness intelligent adjustable

3. High gray level for better color performance

4. High contrast, faster response, high refresh rate

5. Color reduction and Naturalization

6. Stereoscopic visual experience

Our service:
We're aware that you have choices about where to buy your technology and we believe we're the best choice.
Our stuff is better because we stand behind it and we're better.

We know technology can be daunting, so we offer a variety of services to help your self-service or digital project succeed in the field.

OEM services:  Shenzhen Jingcan Opto-Tec Co.,Ltd can make your own design and requirements. We are strong designing power and rich experience in OEM&ODM industry, we are able customize your own product without any difficulty .We offer full suggestions on parts installed.

Replacement & Repair: Choose from a variety of response and coverage times for ongoing break-fix maintenance. We can also inventory spare parts for your units and attend to those mission-critical items that mean the difference between success and failure of your application in the field.

Packaing&Shipping:

Packing: Anti-shaking wooden cabinet/Air flight case/strong carton

Shipping port: Shenzhen, China

Shipping way:Air;Express;Ocean;Land Transportation

Delivery time: 7-15 working days after confirm receipt  payment in advance.

Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.

Company information:

JINGCAN OPTO-TEC CO.,LTD was established in 2013, we are a professional LED media/video display exporter and manufacturer. Our company is located in Shenzhen,the focus of high end LED display technology professionals in China. Top management with  LED display experience over 80% . So far, our LED display is widely used in advertising media,sports venues and road traffic, stock exchange,financial information shows the information publicity and dislay of port terminals and airport terminals, and business propaganda in shopping and shopping centers.Exported to Germany,UK,USA, South Korea,North Korea,Thailand,Italy,Russia,Malaysia and other countries and regions. At any time, we are the best one of your reliable choice.



Company Culture

Corporate vision: led screen culture enter quality life

Corporate mission: culture is the soul, innovation is the foundation

Corporate values: being honest and unselfish

Do things to pursue excellence/  Innovation-driven development / Quality as life / Customers are always first


Certifications:



FQA:

1)  Q: Are you a factory or trading company?

A:We are a OEM/ODM factory.

2) Q:What payment methods your company accept?

A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.

3) Q:How long is the warranty time for your products?

A:Our officially promised warranty time is 1-3years after delivery at best.

4) Q:I haven't done business with you guys before,how can i trust your company?

A:Our company has been in export led display for almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $82,000, and it is still going up.

5) Q:what's the shipment terms and delivery time of your company?

A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

6) Q:Do you give any discount ?

A:I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A:We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
