Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)

Right Team Holding Ltd. / 2022-06-08

Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)

  • Contact Angle:45°
  • Aligning:Non-Aligning Bearing
  • Separated:Unseparated
  • Rows Number:Single
  • Load Direction:Axial
  • Material:50mn, 42CrMo

=== Base Info ===

  • Model NO.:32 0941 01
  • Brand:Lyhy
  • Custom Design:Available
  • Company History:Since Year 1993
  • Outside Diameter:1016mm
  • Bore Diameter:840mm
  • Height:56mm
  • Weight:76
  • Warranty:1year
  • Delivery Time:25-30days
  • Testing:in House
  • Transport Package:Wooden Box
  • Specification:ISO2001: 9008
  • Trademark:LYHY
  • Origin:China
  • HS Code:848210900
  • Production Capacity:600PCS Per Year

=== Description ===
Internal GearExternal DiameterInternal DiameterHeight Weight Module Gear No.Model  *300174.5401036002 0245 00 STD 385217552445602 0308 01 STD 451291552856007 0380 01  STD 486325563156732 0411 01SLBP515316544456402 0422 00 STD 518325563156722 0411 01SL562285604466607 0489 11STD 610403686366802 0520 00 STD 616445564367632 0541 01SLBP648445564167622 0541 01SL665457606167707 0573 00  STD 716546565169332 0641 01SLBP7404937610568302 0626 01STD 748546564869322 0641 01SL771541709669107 0673 00  STD 8166495658611032 0741 01SLBP8355788213087302 0720 02 STD 8486495655611022 0741 01SL8716347011388007 0770 00 STD 916736567089432 0841 01SLBP9356748215088502 0820 00 STD 948736566389422 0841 01SL9607067514488907 0849 00  STD 97578482120810007 0885 01 STD 10168405676810932 0941 01SLBP10488405671810722 0941 01SL105079482168810002 0935 00  STD 106678585190107907 0946 05  STD 11669865692812532 1091 01SLBP117088298258108902 1050 00 STD 117596190179109807 1075 01 STD 11989865680812522 1091 01SL125197991238109907 1140 13 STD 13601052983211010602 1225 00 STD 1390116263171814602 1295 00 STD14311143973231011507 1304 04 STD 153011781305411210007 1385 03 STD 156012151104711210202 1415 00  STD 16761422782781014402 1565 02 STD 177013751508021410007 1606 02 STD 187015011106071410802 1715 00 STD 19161662783241016802 1805 02 STD 200215951509511411507 1830 04  STD 2130190668290823902 2040 00  STD2190173114411991610907 1997 04 STD 219517801309791611202 2022 00  STD 2298206670343825902 2202 00 STD 2590211016016261811807 2400 00 STD 2695242663414830402 2560 00 STD 2785236213012701813202 2618 00  STD 3020249515821542012607 2810 09 STD 3190291490735836602 3074 01 STD
About LYHY bearings

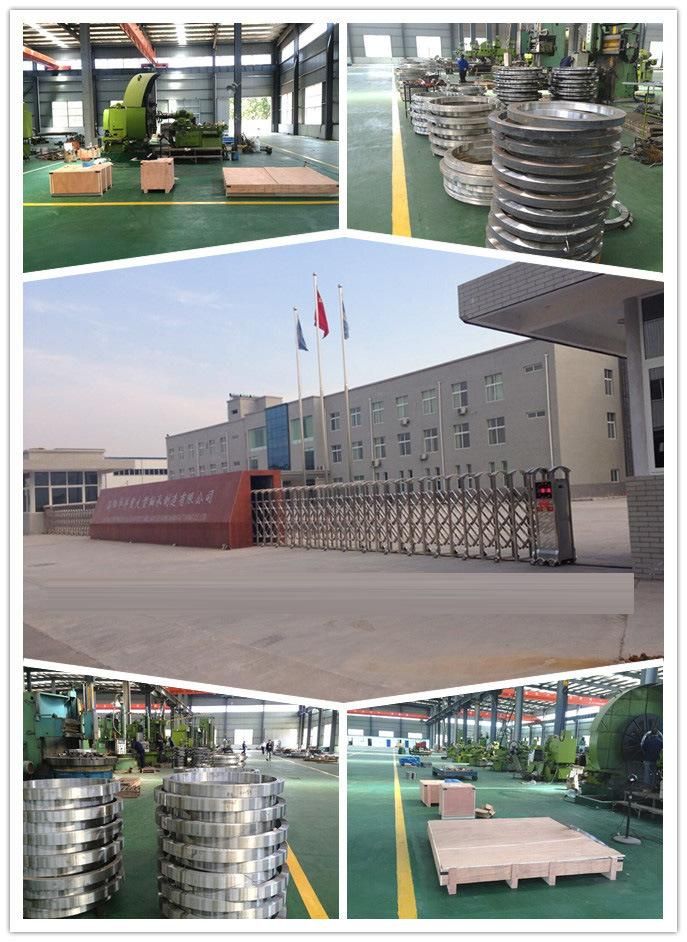

1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia


Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)


1. Single row four point contact ball light type slewing bearings/slewing ring
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer's different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.
The single row ball slewing ring bearing is composed of 2 seat-rings. The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.

2. Structure:
Single row ball slewing bearing has three different types:
Single row ball slewing bearing with no gear
Single row ball slewing bearing with external gear
Single row ball slewing bearing with internal gear

Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)

3. Features
Single row ball slewing ring bearings have following features:
Compact in structure and light in weight.

4. Application:
Single row ball slewing ring bearings are widely used in slewing conveyers, welding arm and positioned, medium duty cranes, excavators and other engineering machines

Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)
LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers  demand to be packed;
Slew Bearing Slewing Ring Bearing Gear Turntable (32 0941 01)




5 We can also make the following  models:
External Gear:
01 0181 02, 01 0235 00, 01 0289 06, 06 0307 00, 01 0342 00, 21 0411 01, 31 0411 01, 01 0422 01, 06 0400 00, 06 0475 22, 21 0541 01, 31 0541 01, 06 0508 00, 01 0555 01, 06 0574 09, 21 0641 01, 31 0641 01, 01 0626 00, 06 0675 00, 21 0741 01, 31 0741 01, 01 0765 01, 06 0734 00, 21 0841 01, 31 0841 01, 06 0823 18, 01 0880 00, 21 0941 01, 31 0941 01, 01 0947 00, 06 0980 09, 21 1091 01, 31 1091 01, 01 1050 00, 06 1116 00, 01 1180 00, 01 1295 01, 06 1250 21, 06 1390 03, 01 1410 00, 01 1595 00, 06 1595 04, 01 1712 00, 01 1845 02, 06 1790 09, 01 1895 00, 01 2040 03, 06 2002 00, 01 2202 00, 01 2130 00, 06 2242 00, 01 2560 01, 06 2500 01, 06 2810 09, 01 3031 00
Internal Gear
02 0245 00, 02 0308 01, 07 0380 01, 32 0411 01, 02 0422 01, 07 0489 11, 02 0520 00, 32 0541 01,
22 0541 01, 07 0573 00, 32 0641 01, 02 0626 01, 22 0641 01, 07 0673 00, 32 0741 01, 02 0720 02, 22 0741 01, 07 0770 00, 32 0841 01, 02 0820 00, 22 0841 01, 07 0849 00, 07 0885 01, 32 0941 01, 22 0941 01, 02 0935 00, 07 0946 05, 32 1091 01, 02 1050 00, 07 1075 01, 22 1091 01, 07 1140 13, 02 1225 00, 02 1292 00, 07 1304 04, 07 1385 03, 02 1415 00, 02 1565 02, 07 1606 02, 02 1715 00, 02 1805 02, 07 1830 04, 02 2040 00, 07 1997 04, 02 2022 00, 02 2202 00, 07 2400 00, 02 2560 00, 02 2618 00, 07 2810 09, 02 3074 01
Without Gear
03 0181 07, 03 0217 00, 08 0220 05, 03 0260 00, 08 0270 04, 08 0307 00, 08 0340 04, 03 0342 05,
03 0360 00, 08 0405 05, 03 0402 00, 33 0411 01, 08 0400 00, 23 0411 01, 08 0475 08, 33 0541 01,
03 0525 01, 23 0541 01, 08 0574 08, 03 0600 02, 33 0641 01, 23 0641 01, 33 0741 01, 08 0675 00,
08 0675 00, 23 0741 01, 03 0785 00, 33 0841 01, 23 0841 01, 08 0823 08, 33 0941 01, 23 0941 01,
03 0980 02, 08 0980 06, 33 1091 01, 23 1091 01

Light Type single row ball slewing bearing with external gear:
31 0411 01
31 0541 01
31 0641 01
31 0741 01
31 0841 01
31 0941 01
31 1091 01


Light Type single row ball slewing bearing with internal gear:
32 0411 01
32 0541 01
32 0641 01
32 0741 01
32 0841 01
32 0941 01
32 1091 01

Light Type single row ball slewing bearing with none gear:
33 0411 01
33 0541 01
33 0641 01
33 0741 01
33 0841 01
33 0941 01
33 1091 01
FAQ:

Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings


Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV


Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.

Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.

Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.

Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.

Q: Is sample available?
A: Yes, sample order is acceptable.

Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
