PU Belt/Industrial Belt/Auto Timing Belt

• Type：Auto Belt
• Material：Rubber
• Certification：ISO, DIN, JIS
• Automatic：Automatic
• Standard：Standard
• Condition：New

=== Base Info ===

• Model NO.：XL, L,H,XH, 3M,5M,8M,14M,S3M,S5M,S8M,S14M,
• Transport Package：Carton or Weaved Bag
• Specification：rubber belt, v belt, cogged v belt, tooth belt,
• Trademark：SMSOUTH
• Origin：China
• HS Code：40103100
• Production Capacity：500000 PCS Per Month

=== Description ===
Characteristic:
1 Synchronous transmission of transmission wheels with zero slip
2 Ratio of transmission up to 10, velocity of transmission up to 40m/s
3 Transmission power from several watts to several kilowatts
4 No need of large initial tension force, low axle load
5 Low operation noises
6 Easy maintenance and replacement
 Structure:
Belt body: The imported CR rubber or HNBR rubber with high quality from Japanese company
Reinforcement: The imported fiberglass cord with excellent quality from Japanese company or German company.
Belt tooth: Nylon 66 fabric with high spandex as the tooth protection materials. Double Tooth Synchronous Belt (Timing Belt):
There are two types tooth for the Double Tooth Synchronous Belt (Timing Belt

DA type is Symmetrical Tooth.

DB type is staggered Tooth.
The width of the Synchronous Belt (Timing Belt)
The width is 450mm to 480mm
MOQ is 1 sleeve (we have existing molds) to 5 sleeves (we have no existing mold)
The customers can cut the available width with sleeve cutting machine according to their requirement
Open End Rubber Synchronous Belt (Timing Belt)

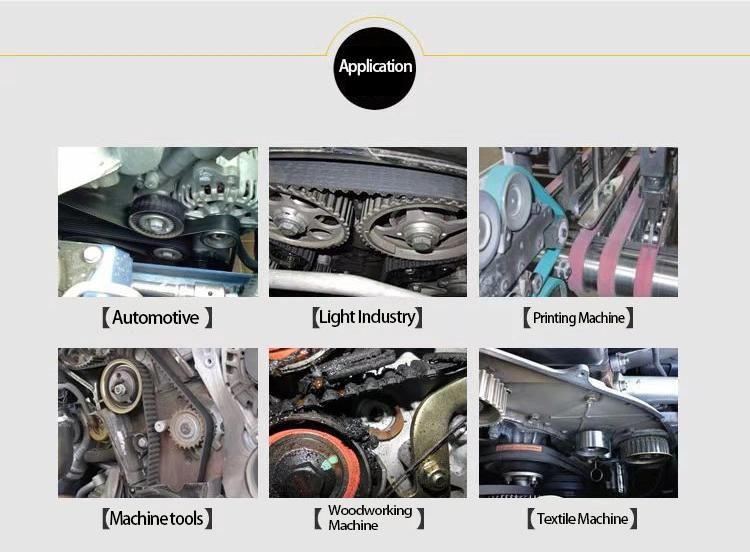

We can deliver open endless Synchronous Belt (Timing Belt) as produced one time, there is black fabric on the surface and the tooth. The max width of belt is 10mm to 120mm for all types. Profiles are 3M,5M,8M,14M, S3M, S5M, S8M, MXL, XL, L, H etc. The length is cut to order, or can be purchased as a full roll. Specialized for applications such as conveying, linear motion, metering, positioning, etc. Normally, our clients need the rubber open endless Synchronous Belt (Timing Belt) as the widths are 10mm, 12mm, 15mm and 25mm, the length is 100 meters per roll.Application:Widely used in automobile, tobacco, textile, printing, glass, chemical industry, light industry, metallurgy, instrumentation, mining, petroleum, machine tools, SMT, computer printing, food packaging and other mechanical equipment transmission.


Specification of Timing Belt

Printing Mark:



Producing Process

Testing Machines




FAQ:

1. How many years have you been in rubber belt business?
30 years

2. Do you have big and famous customer? How many years do you cooperate with them?
Yes, we are cooperating with a big multinational company in USA more than 15 years. We are the sole purchasing agency of the company in China.

3. What about your quality level?
Because we export big amount to the multinational company, our quality of all productions are in high level. Our products have been satisfied with our customer more than 15 years.

4. Which countries are your main sales?
America, South America, Africa,Midde East Countries,Australia, New Zealand,Europe

5. What's your acceptable payment terms?
T/T and L/C are acceptable, other payments can be negotiated.

6. How long is the delivery time?
Usually we can effect shipment within 20 days after confirming the order, but for coupling, it will be a little long ,about 45 days.

7.The how about the packing?
The packing are plastic paper, woven bag, pallet and carton as per the items ordered.

8. What's the Minimum order quantity?
The minimum order amount is USD3500.

9. Can we place belt,hose, fitting , coupling, rubber sheet all are in small order, and ship together?
Sure, we can do. Each week, we have lots of goods are waitting to ship. We can consolidtae all goods in one container. It's our advantage

10.What are the quality standards passed?
FDA,ISO,SGS,ROHS,REACH
