Indoor High Refresh P2.5 Flexible LED Advertising Screen
Danyang Yun Kai Metal Products / 2022-06-27
- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：2.5mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：160000 Dots,Sqm
- Scanning Mode：1,32
=== Base Info ===
- Model NO.：2.5mm, 3mm, 4mm
- System Operating Platform：Windows
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide, TV Station , Studio , Conference Hall
- IP Rating：IP30
- Certification：CE, RoHS, UL, CCC
- Module Size：320X160mm
- Cabinet Size：Customizable
- Screen Brightness：1200nits
- Screen Refresh Rate：1920-3840Hz
- Grey Scale：16bits
- Maintenance：Rear , Front Service
- Controller：Nova
- Module Resolution：128DOT*64DOT
- Screen Resolution：160000dots,Sqm
- Drive Method：1,32 Scan
- Cabinet Material：Steel Iron,Aluminum
- Viewing Angle：H: 160degree V:160degree
- Contrast Ratio：3500:1
- Avg.Power Consumption：350W,Sqm
- Max.Power Consumption：700W,Sqm
- Transport Package：Plywood Case
- Specification：Customizable
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
=== Description ===
INDOOR PH2.5MM FULL COLOR FLELXIBLE LED SCREEN
No.
PARAMETER
SPECIFICATION
1
Pixel Pitch(mm)
2.5
2
Pixel Density
160000/m2
3
LED Type
SMD2020
4
LED Wave Length(nm)
R:620-625/G:515-520/B:470-475
5
LED Luminous Intensity(mcd)
R:210~370/G:420~650/B:85~110
6
Viewing Angle
H:160°/ V:160°
7
Bending radian
Centre bend≤120°/Opp angle bend≤120°
8
Brightness
1200cd/m2
9
Drive Method
1/32
10
Signal interface
HUB75
11
Color Depth
4096(14bits)
12
Refresh Rate(Hz)
≥1920
13
Frame Rate(Hz)
≥60
14
Contrast ratio
3500:1
15
Module Size(mm)
320*160
16
Cabinet Size (mm)
Customizable
17
Power Supply
5V 40A
18
Voltage(V)
AC 110~240V
19
Avg. Power Consumption
350W/m2
20
Max. Power Consumption
700W/m2
21
Service Access
Rear service
22
IP Grade
IP30
23
Operating Temp/Humidity
-20ºC~50ºC, 10~90%RH
24
Storage Temp/Humidity
-40ºC~60ºC, 10~90%RH
25
Lifetime(Normal Temp)
≥100000H
26
System Controlle
Synchronization with PC
27
Compliant Standard
CCC / CE / RoHS
PRODUCT PHOTOS:
CERTIFICATES:

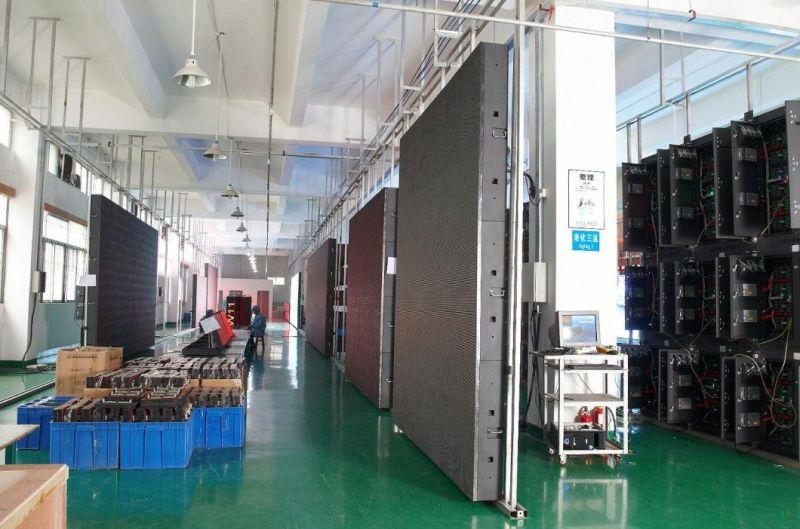

CKGLED FACTORY WORKSHOP:
CKGLED is a National Level High & New Technology Enterprise in China.
CKGLED offers LED display's design & production, Project installation and rental service.
CKGLED owns more than 20,000 SQM,two production bases with over 400 employees , which ensures our capacity of 6000sqm every month.
CKGLED has near 20 experienced engineers in LED application field. Almost 80 technicians focus on research & development, and quality control.
CKGLED equipped complete and advanced production facilities, monthly output up to 6000m2
CKGLED has solid cooperation with Nationstar/ Nichia/ Cree/ Kinglight, Meanwell / MBI, Jinlongyu etc. International standard first-class raw material suppliers.
CKGLED has built long-term business cooperation with companies from more than 150 countries in the world.
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality
48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
FOREIGN EXHIBITION:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
