P5.9 Outdoor Full Color Rental Advertising LED Display

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：5.9mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：P5.9
• Pixel Density：28224 Dots,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Die Casting Aluminium
• Brightness：4000nits
• Voltage：AC110-240V
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Flight Cases
• Specification：500x500mm 500x1000mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Outdoor Rental Series Full Color LED Display Screen

Model Number

OR-P5.9

Pixel Pitch

5.9mm

Pixel Density(pixels/M2)

28224 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar

Module size(mm)

250x250mm

Module Resolution(pixels)

42*42 pixels

Min.Viewing Distance(m)

6

Brightness(nits)

4000nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/8 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

500x500mm, 500x1000mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920Hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation Methods

Indoor outdoor rental led display screen installation is easy, usually hanging, base standing or back fixed installation depends on the location situation etc.



Part 6: Packing Information

Packed by flight cases, easy to move and carry, and well protection



Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

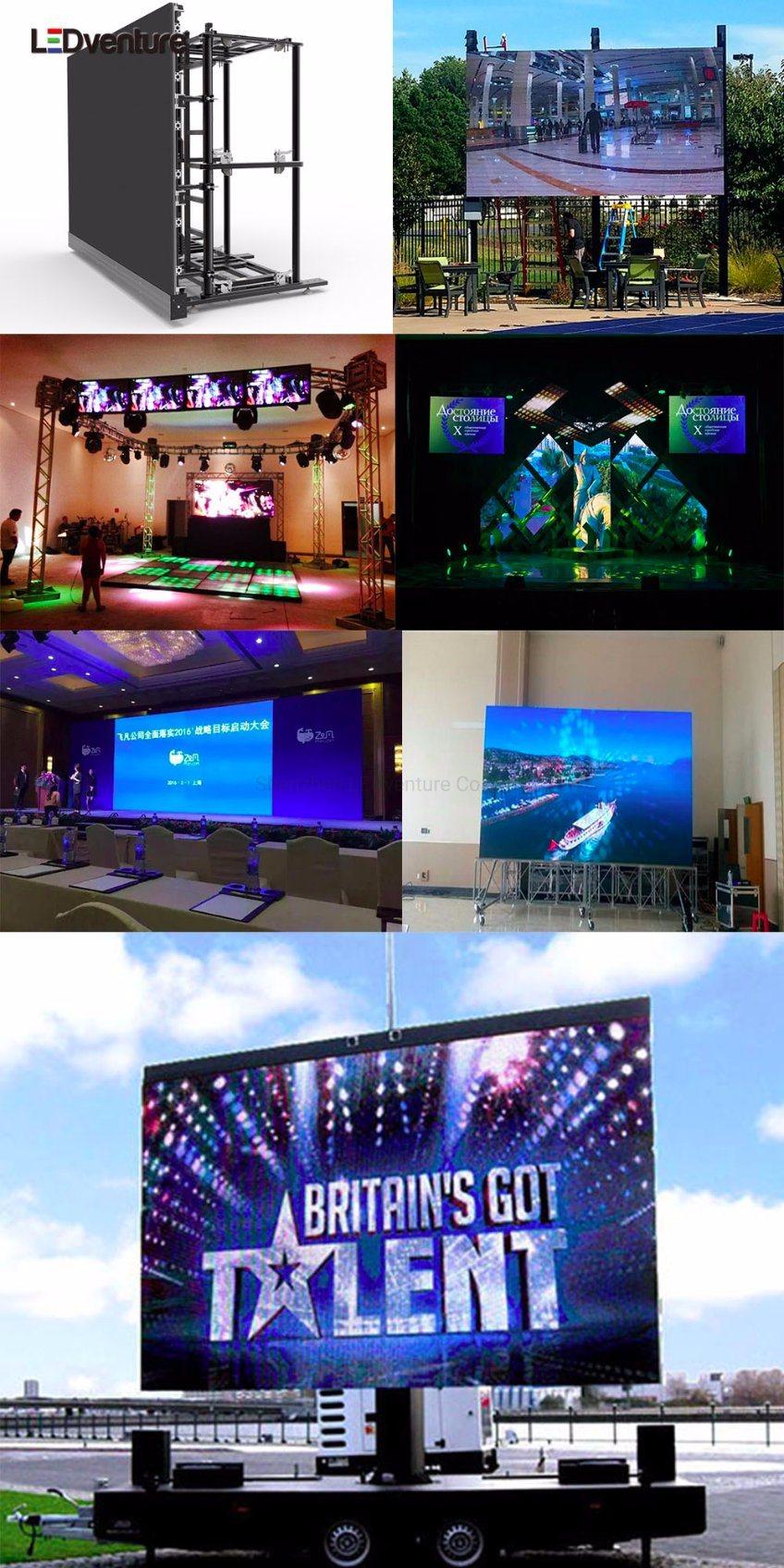

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia
