CNC Router Machine Texitile Fabric Cloth Cutting Equipment for Garment Sofa Industry

• Voltage：220V
• Power Source：Electric
• Automatic Grade：Automatic
• Warranty：1 year
• Certification：CE, ISO
• Cutting Thickness：0.1-18mm(Depend on Material)

=== Base Info ===

• Model NO.：KJZD-1625
• Mechanical Precisio：<0.01mm
• Supported Software：Coreldraw, Autocad
• Work Plate：2500mm*1600mm
• Machine Size：3260*2120*1315mm
• Cutting Speed：0-1500mm,S
• Transmission Interface：Cable Transmission
• Supported Format：Pxf Plt
• Fan Power：9kw
• Material Fixed Mode：VAC-Sorb
• Driving Mode：Racking Drive
• Transport Package：Packed in Wooden Cases
• Specification：KJ-1625
• Trademark：kangjia
• Origin：China
• HS Code：8453100000
• Production Capacity：100 Sets , Month

=== Description ===

Basic Info.

Model NO. KJZD-1625 Mechanical Precisio <0.01mm Supported Software Coreldraw, Autocad Work Plate 2500mm*1600mm Machine Size 3260*2120*1315mm Cutting Speed 0-1500mm/S Transmission Interface Cable Transmission Supported Format Pxf Plt Fan Power 9kw Material Fixed Mode VAC-Sorb Driving Mode Racking Drive Transport Package Packed in Wooden Cases Specification KJ-1625 Trademark kangjia Origin China HS Code 8453100000 Production Capacity 100 Sets / Month

Product Description

CNC Router Machine Texitile Fabric Cloth Cutting Equipment for Garment Sofa Industry

Model: KJ-1625  Machine size can be customized
Brand: KANGJIA
Applicable cutting materials:different kinds of soft materials, sucha as car mats, car seat, PVC, embroidery accessories, foam composite material, XPE, coiled mats, leather, silicone, rubber, truck tarpaulin, cardboard, plastic board, Grey board, white board, gasket,etc
Application: widely used in automotive interior industriy,garment, shoe, bag, packaging industry and advertising industry.
Functions: cutting(oscillating cutting tool)
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as rotary cutting tool, punching, v-cutting tool, creasing wheel,milling cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.







Technical data:

Model	KJCT-1625 (can be customized)
Fan power	9kw
Voltage	110V/220V/380V±10%,50HZ 60HZ
Working characteristic	Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously
Cutting speed	max. 140m/min
Cutting thickness	0.1-50mm
Effective cutting area	2500mm*1600mm
Cutting accuracy	±0.1mm
Overall dimension	3260*2120*1315mm
Cutting materials	Corrugated paper,plastic corrugated sheet,grey board,ivory board,film,composite materials,leather ,fabric,slab rubber,pear wool,sponge,KT board ets.

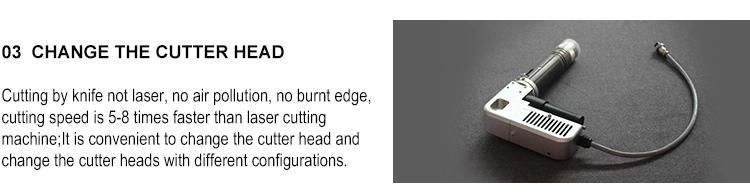

Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, eletric knife, Circular knife (round knife / rotary knife); pin
Location mode	Infrared laser
Material fixed mode	absorption
Transmission interface	Network transmission
Compatible software	Kangjia intelligent software
Control system	LED touch screen
Driving mode	Racking drive
Drive motor	Pelta( /Panasonic/Fuji/Yaskawa optional)
Guide rail	Brand :Yintai
Body structure	Body welding
Suction case	Aluminum case
Certification	CE/SGS,ISO9001/ISO14001/ISO18001
Safety device	Mechanical anti-collision device/infrared radiation

Cutting materials dispaly



Product Advantage:
1. Environmental protection, no smoke & no smell.
2. High Efficiency, the cutting speed can reach max. 1500m/s (per material), save time and worker cost.
3. Beautiful appearance, no yellow edge & rough selvedge after cutting.
4. Multifunctional cutting, support abnormity cutting, apply for many industries.
5. Wide range of applications: garment industry, automotive interior (floor mat, seat cover etc.), advertise industry, furniture industry (sofa), leather industry, clothing industry etc.

Packaging & Shipping:

Company Show:


Exhibition:


Certificates:

Why Choose Us?
 1. Saving labour and material cost

2. Saving time

3. Everyone can operate and cut without lots of skills

4. Boost production capacity

5. Consistent accuracy even with complicated patterns

6. Reduces your lead times of pattern cutting from your clients

7. Wide range of clothes/garment/apparel material application

8. Running in a high automaton

9. Special design: less moving structure guarantee low down time and easy in installation and maintain

10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

11.Good experienced engineers

12. CNC control

13. Knife cutting method: oscillating Blade with multifunctional tool heads

14. Easy conversion

15. With more and more agents / partner joining us, after sales team can be in your country by your side.

FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?

Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.

Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
