Auto Parts Repair Painting Equipment with CE Approved

• After-sales Service：Available
• Warranty：12months
• Type：Spray Booth
• Certification：CCC, CE, SGS, ISO
• Substrate：Steel
• Brand：Hongyuan

=== Base Info ===

• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50mm Thick EPS Foam Panel
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：4-Stage Filtration
• Heating System：Electric
• Upper Light：Available
• Side Light：for Option
• Control Box：English Panel
• Drawing：Available
• Control：Automatic
• User Manual：Available
• Related Product 1：Large Truck Paint Spray Booth
• Related Product 2：Folding Retractable Paint Spray Booth
• Related Product 3：Furniture Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• HS Code：8428909090
• Production Capacity：100 Set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50mm Thick EPS Foam Panel Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Electric Upper Light Available Side Light for Option Control Box English Panel Drawing Available Control Automatic User Manual Available Related Product 1 Large Truck Paint Spray Booth Related Product 2 Folding Retractable Paint Spray Booth Related Product 3 Furniture Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China HS Code 8428909090 Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
1. full-down draft paint booth: Down draft spray booths bring air in through the ceiling plenum, down through the floor (metal basement or concrete pit) into the exhaust fan chamber. This provides the cleanest finish possible and is used in high end autobody facilities.

2. semi-down draft paint booth: Semi down draft spray booth brings air in through the roof and then exhaust it out through the back walls of the spray booth, it requires no concrete pit work, and the fan cabinet is at the back of the cabin.

3. side-down draft paint booth: Side down draft spray booth brings air in through the roof and then exhaust it out through the side walls of the spray booth, this is similar to a down draft spray booth but requires no concrete pit work, this is widely used for small auto body shops where no floor alteration can be made.
4. cross-draft paint booth: Cross draft spray booth brings air in through the front of the booth and exhaust it out at the rear of the booth, they are more affordable, easier to install (require no concrete pit work).

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<17kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

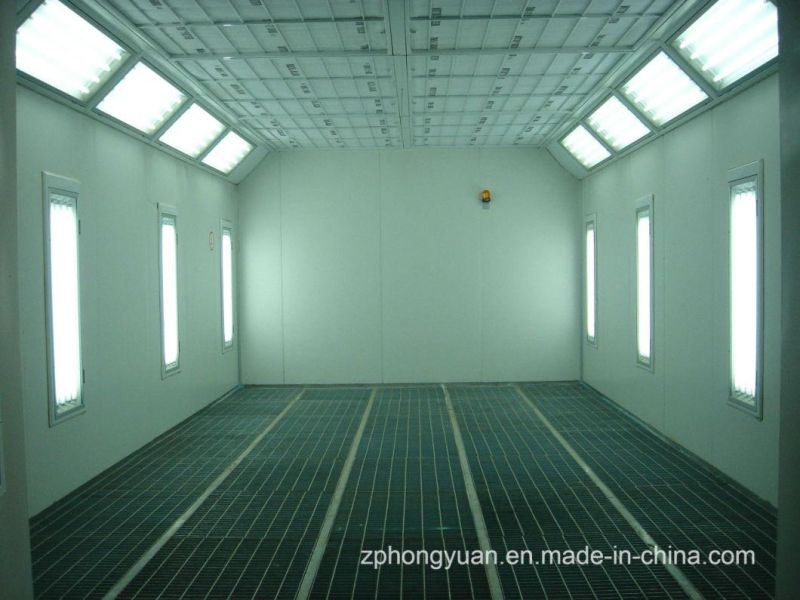

details show of paint booth with oil burner



parts show of paint booth with oil burner
