4G WiFi U Disk LED Mirror Poster Advertising LED Screen

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：250000dots,M2
• Scanning Mode：1,32 Scan

=== Base Info ===

• Model NO.：Indoor led display P2
• System Operating Platform：Windows7,8,10
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC
• Support：3G,4G WiFi U Disk Control
• Driver IC：High Refresh IC
• Bightness：900CD,Sqm
• Grey Scale：65536 Degree
• Life Time：More 100, 000 Hours (80%)
• Mtbf：More 50, 000 Hours
• Operating Temperature：-30~-60t
• Humidity：10%-95%
• Color Temperature：12500-9500K
• Refreshing Rate：1920Hz and 3840Hz
• Transport Package：Wooden Case Flight Case and Carton
• Specification：P2 Indoor mirror screen
• Trademark：hongking
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：50000 Sqm,Year

=== Description ===

Basic Info.

Model NO. Indoor led display P2 System Operating Platform Windows7/8/10 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC Support 3G/4G WiFi U Disk Control Driver IC High Refresh IC Bightness 900CD/Sqm Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 12500-9500K Refreshing Rate 1920Hz and 3840Hz Transport Package Wooden Case Flight Case and Carton Specification P2 Indoor mirror screen Trademark hongking Origin Shenzhen China HS Code 8528591090 Production Capacity 50000 Sqm/Year

Product Description

  4G WiFi U Disk LED Mirror Poster Advertising LED Screen

Product Description:
Plug  Play USB, the LED poster can automatically play video, pictures, text, and other programs
once you connect the plug without repeating software settings and other work.
Simple setting, unique design, and user-friendly software, LED poster is an LED display product that is very suitable for end-users to use
cabinet Ultra-thin and light-weight,  Support Ethernet, SD card, Wifi, HDMI input and 4G remote control input, which can work perfectly online and offline!


product Specification

Pixel Pitch(mm)	indoor P2 led poster screen
Pixel Density(dot/M2)	250000(dot/M2)
brightness	900cd/M2
LED module size (W * H)	320MM(W)* 160MM(H)
module Resolution(W * H)	160dots * 80dots
Pixel configuration	SMD1515
Drive IC	high refresh rate
Cabinet size (W*H)	640mm×1920mm
Viewing Angle(V/H)	140 ºC/140 ºC
Screen Power Consumption	Max :800w/set
Input Voltage	AC110V/220V±10%
weight	35KG/set
Operating Temperature	-20ºC~+60ºC
LED Lifetime	>100,000 Hours
MTBF	> 50000 hours
Refresh Rate	3840HZ
Control Method	Nova-star / HD
maintenance	back or front

Application
Wherever the led panel is, we can control all the led display
Street lighting pole LED fullcolor Display had variety data comunications transferring,such as 3G,WIFI, teh message data were update without time and the area limited!


01.Ultra Slim Light Weight Digital LED Poster
Custom made  slim aluminum frame and high precision cabinet design
LED poster display is easy transport with wheels on bottom
The LED poster is also light weight design with 35kg per set


02. Digital LED Poster with Multiple Control Solutions
LED poster display supports HDMI/LAN/WiFi/USB Control
With built-in synchronous and asynchronous controller, the LED poster can be living streaming for events, or advertising media player without PC
Supports Windows system PC  mobile App(IOS/Android)
4G module controller for remote control(Optional)



03. Flexible Installation for Digital LED Poster
led poster display supports multiple installations

Freestanding: no need extra structure, more easier and simpler

Hanging: from the ceiling for shop window advertising

Wall-mounted: perfect for indoor advertising applications

04. Flexible Installation for Digital LED Poster
led poster display supports multiple installations

Freestanding: no need extra structure, more easier and simpler

Hanging: from the ceiling for shop window advertising

Wall-mounted: perfect for indoor advertising applications

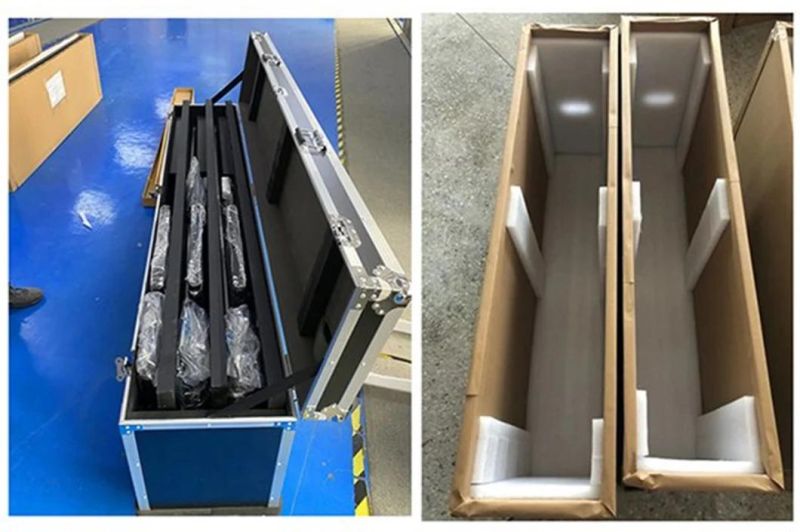

product packing


workshop show :

case  show :

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
