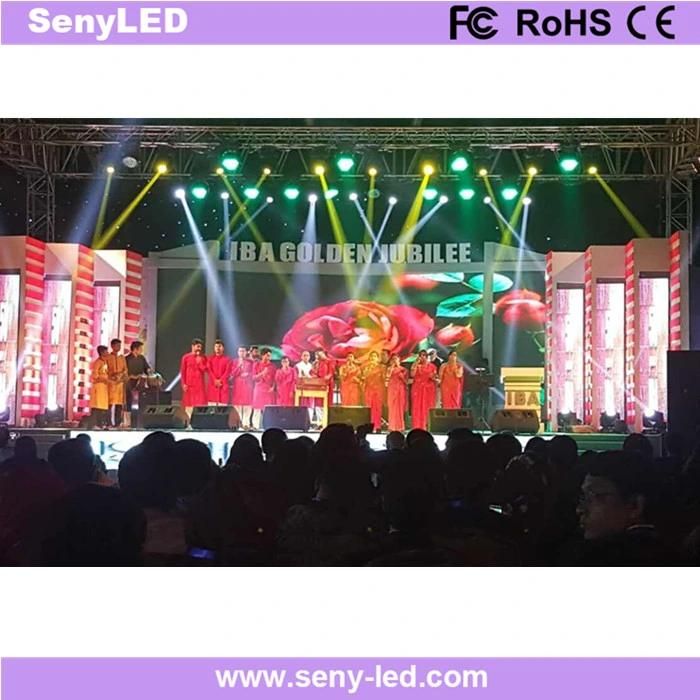

Super Slim LED Video Wall LED Display Panel LED Screen for Rental Stage Video Show

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display
• Pixel Pitch：4.81mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：43222 Dots,M2
• Scanning Mode：1,13 Scan

=== Base Info ===

• Model NO.：SY-P4.81-13S
• System Operating Platform：Win98,2000,Nt,XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP40
• Certification：CE, RoHS, UL, CCC, FCC
• Cabinet Size：500mm X 500mm
• Transport Package：Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, China.
• HS Code：8528591090
• Production Capacity：5000sqm,Month

=== Description ===
Super Slim LED Video Wall LED Display Panel LED Screen For Rental Stage Video ShowS/NItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD2121120-140mcd620-625nm140º/120º3Green LEDSMD2121360-435mcd520-525nm140º/120º4Blue LEDSMD212180-100mcd470-475nm140º/120ºModule Specification1Pixel Pitch4.81mm2Pixel Configuration1R1G1B3Module Resolution52 x 52 pixels4Module Pixles2704 pixels5Module Size250mm X 250mmCabinet Specification1Cabinet Size(W X H X D)500mm x 500mm x 85mm2Cabinet Resolution(dot)104 x 104 pixels4pcs10816 pixels43222 pixels/m26Cabinet MaterialsDie Casting Aluminum Cabinet for rental purpose7Cabinet Weight6.5kg per cabinet8PackagingFly case9Fly Case Size62*56*74CM ( one case for five cabinets )/ G.W.: 56.3kgWhole Screen Specification1Screen Brightness≥1200cd/m22Driving Method1/16 scan3Best Viewing Distance4.81m - 40m4Max. Power Consumption810W/m25Average Power Consumption365W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1200Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleFor indoor use only17Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Environment Temperature & HumidityTemperature:-20 Celsius~+60 CelsiusHumidity:10%~90% RH20Control ModeSynchronous display with control PC by DVI21Control SystemDVI video card + full color control card + fiber system( optional)22Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.23InterfaceStandard Ethernet24Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m25CertificationCE-EMC, CE-LVD, FCC, RoHSProject cases:



Certificate:

Packaging and delivery:

After sales maintenance:
1.Receive the cargo
Make sure the cargo in sealing condition and the cargo storage temperature
between - 20ºC  and 60ºC when you receive the goods.
2. Install and use the product
Please adopt preheating model to light it up and keep 30% brightness for 0.5-2 hours when using . Keep it work 8 hours or above continually per day will be
 better. It will be better to use it at least once a week.
3. Cleaning
Ensure to use soft brush to clean the display surface and PROHIBIT any liquid
when doing cleaning.
