Highly- Flexible Coupling / High Elastic Coupling

• Standard Or Nonstandard：Nonstandard
• Shaft Hole：8-24
• Torque：<10N.M
• Bore Diameter：1-1.5mm
• Speed：2400-3200 R,Min
• Structure：Flexible

=== Base Info ===

• Model NO.：HGTL(X) series
• Material：Alumium&Rubber
• Type：Universal Coupling
• Transport Package：Woodencase
• Specification：Rubber
• Trademark：ADVANCE
• Origin：Hangzhou, Zhejiang, China
• HS Code：8483600090
• Production Capacity：50000PCS ,Year

=== Description ===

Basic Info.

Model NO. HGTL(X) series Material Alumium&Rubber Type Universal Coupling Transport Package Woodencase Specification Rubber Trademark ADVANCE Origin Hangzhou, Zhejiang, China HS Code 8483600090 Production Capacity 50000PCS /Year

Product Description

ADVANCE Coupling Introduction :
ADVANCE high elastic couplings digesting and absorbing German advanced technology were the result of self-R&D together with Hangzhou Research Institute of Marine Gearbox, being recognized by CCS, ZY, BV, ABS, RINA, NK and LR. The company has passed through ISO9001:2008 accreditation.

    The Company has made itself available with perfect means of inspections. It has R&Ded dynamic tester on high elastic coupling - a fully independent intellectual right of our own - the first one of this type in China.

    Realizing zero rate of service due to product quality for 6 years in a row and achieving average use life of 7 to 8 years for easy worn-out parts, the Company has been the top 1 in this line in China in terms of capacity and market share.

    The concept of service: being devoted to ensuring customer satisfactions. The concept of management of maintaining standard institutions and advanced manufacturing and inspection equipment, being brave for innovations and making continuous improvements is essential to ensure quality products. A cordial welcome will be given for visit and guidance.





HGTL(X) series

HGTL (X) series of flexible coupling is a torsion-type flexible coupling, in addition to apply to the Group's medium and low-power gearbox, but also for other diesel-powered power transmission Device, the main components are ring gear and toothed elastic components.
    The series of highly flexible coupling is made of heat-resistant rubber as shock absorption material, which can effectively reduce and absorb vibration, improve the working conditions of equipment, improve the service factor and transmission capacity, extend the maintenance period and service life of equipment, and improve the performance of ships Sailing conditions. The coupling axial inserted, it can compensate for a larger axial displacement and a certain radial displacement, easy installation, the specific radial displacement does not exceed the allowable radial displacement table of technical parameters, so the series Shaft generally not suitable for flexible support installation, when you must use the elastic support installation, to be used to choose another type of highly flexible coupling.
    The coupling is medium and small power plant upgrades indispensable ancillary products.
The maximum allowable working temperature of this coupling elastic element is 60 ºC. In order to prolong its service life, it is recommended that no cover be used as much as possible and a large enough ventilation side must be provided when the cover must be used.

HGTL (X) Structure Introduction, Dimensions, Specifications
The series of high-elastic elastomer toothed involute, the structure of the installation size can fully meet the original tooth-shaped rubber block coupling transformation of the old unit. Which HGTLX series with overload protection limit devices, specifications from 1.8kN.m ~ 8.6kNm.


2.HTLTL (X) technical parameter table


3.Mass, Moment of Inertia, Size Chart

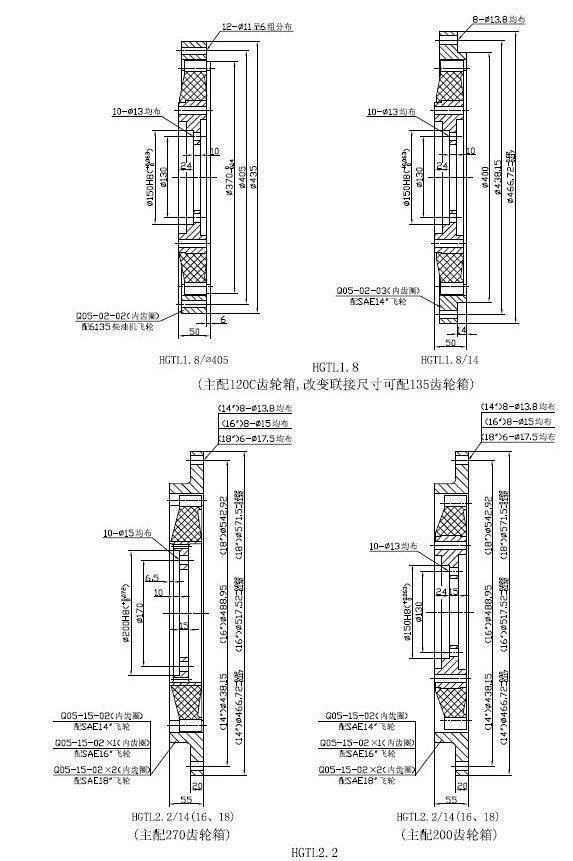

4.Dimensional figures:
