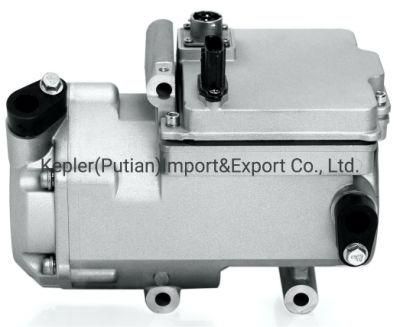

96VDC Electric Scroll Compressor for Electric Car

• Displacement：27cc,Rev
• Rotary Compressor：Scroll Type
• Input Voltage：96VDC
• Working Voltage Range：60-120VDC
• Input Voltage for Control：24VDC
• Speed Regulation：PWM(400Hz)

=== Base Info ===

• Model NO.：KP-DC27966000-24,P
• Speed：1000-6000rpm
• Cooling Capacity：4.5kw
• Rated Working Current：30AMP
• IP Grade：IP67
• Refrigerant：R134A
• Oil：Rl68h
• Transport Package：Carton
• Specification：27cc
• Trademark：kepler
• Origin：China
• HS Code：8414301300
• Production Capacity：200000PCS,Year

=== Description ===


SIGNAL End124VDC +Input voltage for control2ON/OFFGND to start3Speed regulationPWM signal4GND 5Null 6Null






Application for 96vdc electric compressor

Electric Car

Electric Truck

Electric Van
