5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift

Hongsheng Gift Limited / 2022-06-23

5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift

  • Warranty:1 Year
  • Type:Double Cylinder Hydraulic Lift
  • Lifting Capacity:5.5t
  • Driving Type:Hydraulic
  • Certification:CE, ISO, RoHS
  • Driving Motor Number of Mechanical Lift:1

=== Base Info ===

  • Double Cylinder Lift Type:Planer-type
  • Shearing Lift Type:Two Post Lift
  • Condition:New
  • Brand:Eounice
  • Design:Two Post
  • Lifting Time:60s
  • Lifting Height:1920mm (75 9,16′′)
  • Minimum Height:95mm (3 3 ,4′′)
  • Total Height:4200mm (165 3,8′′)
  • Width Between Columns:3000mm (118 1,8′′)
  • Total Width:3570mm (140 9,16′′)
  • Gross Weight:863kgs (1,903lbs)
  • Motor Power:3.0kw (4HP)
  • Transport Package:Contains
  • Specification:3900*560*833mm
  • Trademark:Eounice
  • Origin:China
  • HS Code:8425429000
  • Production Capacity:10000

=== Description ===

Basic Info.

Double Cylinder Lift Type Planer-type Shearing Lift Type Two Post Lift Condition New Brand Eounice Design Two Post Lifting Time 60s Lifting Height 1920mm (75 9/16′′) Minimum Height 95mm (3 3 /4′′) Total Height 4200mm (165 3/8′′) Width Between Columns 3000mm (118 1/8′′) Total Width 3570mm (140 9/16′′) Gross Weight 863kgs (1,903lbs) Motor Power 3.0kw (4HP) Transport Package Contains Specification 3900*560*833mm Trademark Eounice Origin China HS Code 8425429000 Production Capacity 10000

Product Description

5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift
5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift
TECHNICAL DATA
ModelLifting CapacityLifting TimeLifting HeightMinimum HeightTotal HeightWidth Between ColumnsTotal WidthGross WeightMotor Power
ON-7215DT5,000kgs (11,000LBS)≤60S1920mm
(75 9/16")
95mm
(3 3 /4")
3824mm
(150 9/16")
2850mm
(112 1/4")
3420mm
(134 5/8")
763kgs
(1,682LBS)
2.2KW
(3HP)
ON-7215DT/5.55,500kgs (12,000LBS)≤60S1920mm
(75 9/16")
95mm
(3 3 /4")
4200mm
(165 3/8")
3000mm
(118 1/8")
3570mm
(140 9/16")
863kgs
(1,903LBS)
3.0KW
(4HP)


PRODUCT INTRODUCTION:
  1. 5,000Kg (11,000LBS.) lifting capacity.
  2. Single-point lock release by manual.
  3. Dual hydraulic direct drive cylinders made on high standard.
  4. Standard with 4 two-stage lifting arms.
  5. Screw-up rubber pads with min height 95mm (3 3/4").
  6. 1920mm (75 9/16") lifting height suitable for various operators.
  7. Overhead safety protection device.
  8. Automatic arms restraints.
  9. Professional powder coating.
MAIN FEATURES:
  1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4"), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
  2. The maximum height is 3824mm(150 9/16"), and the effective height is 3700mm(145 11/16"), which is more suitable for the lifting of vehicles with high roof.
  3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8") from the shaft end, which can effectively prevent the pulley from coming out.
  4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.
5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift

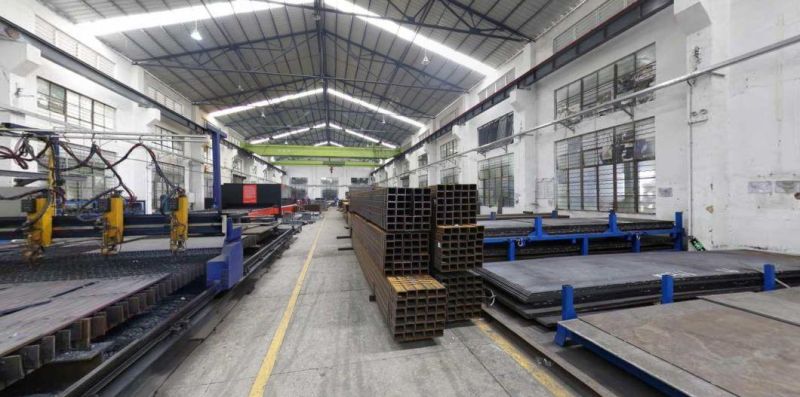

OUR FACTORY:



5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift
5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift

5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift
5.5 Tons Two Post Car Lifting Automotive Hoist Hydraulic Power Unit Lift


Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.


Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.


FAQ

 The Some buyer  maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
