Accuair Vu4 Vu2 Solenoid Valve Block for Air Ride Suspension System

• After-sales Service：Fre After-Sales Service
• Warranty：12 Months
• Material：Aluminum
• Certification：ISO10012, BSCI, GMP, GSV, ISO13485, OHSAS18001, ISO14001, ISO,TS16949, ISO9001
• Car Make：Volkswagen, WuLing, Benz, BMW, Hyundai, Honda, Toyota, Jeep, Nissan, Ford, Buick, Chery, Chevrolet, Cadillac, Geely, Roewe, Audi, Peugeot, Lexus, Volvo, Mazda, Kia
• Position：Front

=== Base Info ===

• Model NO.：VU-4F
• OEM：Yes
• Type：Buffer for Suspension
• Customized：Size,Logo,Model,Color
• Quality Warranty：12months
• Voltage：DC12V
• Port Size：NPT3,8 NPT1,4
• Transport Package：Inner Box, Outer Carton...Pallet
• Specification：1.6
• Trademark：VPC Pneumatic
• Origin：China
• HS Code：8481804090
• Production Capacity：500000PCS,Month

=== Description ===
Compatiable Suspension Type4-Corner Full Air SuspensionVoltage Requirements  10.5-16 VoltsCurrent Requirements 1.1 Amps (for each of the (8) Valves)Connectors IP67 certified (immersion up to 3 ft)Fitting Size 3/8" D.O.T. / P.T.C (x 8), 1/4" NPT (x 4)No. of Inlet Ports 2No. of Exhaust Ports2Max Operating Pressure 200PsiCv Flow Factor 0.33Average Adjustment Time 2.2 Seconds (from 10% to 50% of travel)Standard or Nonstandard:Standard
Structure:Control
Pressure:High Pressure
Power:Solenoid
Material:Alloy
Temperature of Media:High Temperature
Media:Air
Port Size:1/4" 3/8" 1/2"
Place of Origin:China (Mainland)
Model Number:VVU-3L-4F
Brand Name:VPC
Application:Air Suspension, Air Suspension

The New Design Air Suspension Solenoid Valve (Accuair Solenoid Valve Manifolds)  is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. It's more smart than our previous manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.

Good replacement to Accuair AA-VU4  Air suspension valve block With E-level
Compatiable Suspension Type    4-Corner Full Air Suspension
Voltage Requirements      10.5-16 Volts
Current Requirements     1.1 Amps (for each of the (8) Valves)
Connectors     IP67 certified (immersion up to 3 ft)
Fitting Size     3/8" D.O.T. / P.T.C (x 8), 1/4" NPT (x 4)
No. of Inlet Ports     2
No. of Exhaust Ports    2
Max Operating Pressure     200Psi
Cv Flow Factor     0.33
Average Adjustment Time     2.2 Seconds (from 10% to 50% of travel)

8 Valve Air Suspension Block Complete.

1/2″ ports, 8 Valves 1 for up - 1 for dump x 4, gauge port,  - easy to install.
3/8" Brass Air Valves 3-Position 200psi 10mm (3/8") Orifice 40watt coil 200psi 8-Cyl Air-Engine Manifold Valve -Bare

Assembly Valve Block
1. Material: Brass or aluminum alloy
2. With wiring harness
3. Provide custom-built product or service
Assembly Valve Block is combination of 2 way 2 position valves, which is extensively applied in many production trades as automobile, boats and ships etc. The products are sold to distant countries and areas as America, Europe, Southeast Asia etc.
new 4 Valve Air Suspension Valve Block.
5W continuous duty coils with a total amp draw of less than 1.7 amps for all 4.
12 volt
3mm oriface direct acting style
150 psi rated with 40% pressure differentia
Two 3/8"npt Direct Action Air Valve Manifold
DIRECT ACTION MEANS THERE IS NO DIAPHRAGM OR O-RINGS TO WEAR OUT
4-Position
30psi Minimum Working Pressure
350psi Maximum Pressure
3/8"npt Inlet and Outlet
9.5mm Internal Orifice
1/4"npt Gauge Port
CV Rating 4.0
12-Volt
All Parts Are Made From Stainless Steel, Aluminum Or Are Nickel Plated For Corrosion Resistance And Trouble Free Operation
complete FBSS Up And Down For Front/Back Control/SIDE/SIDE
Two Air Ride Suspension Valve Manifold 3/8"npt Direct Action Valves fbss afc
The VU4 4-Corner Valve and VU2 2-Corner Valve Units are engineered to provide the cleanest installation and most reliable operation on the market. The VU4 electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has 1/4" NPT ports for use with any fittings that you choose for all of its plumbing connections. The VU2 electronic solenoid valve unit inflates and deflates up to (2) individual Air Springs and has 1/4" NPT ports for use with any fittings that you choose. The robust internal solenoid valve architecture maximizes flow rates, provides bubble-tight sealing, and guarantees operation up to 200 psi for millions of cycles. All of this technology is housed in a unique enclosure design which routes each of the solenoid wires to a single weatherproof connector, eliminating typically loose wires. This not only improves the appearance, but it also guarantees proper operation for every installation. With an overall size of only 5"x 3"x 3" with the VU4 and 3.08"x 2.75"x2.75" with the VU2 and the ability to survive harsh under vehicle environments, this product is ideal for any application
1/4" NPT FITTINGS FOR ALL PORTS
This VU4/VU2 valve unit inflates and deflates up to (4) individual Air Springs or (2) individual Air Springs and has all 1/4" NPT threaded ports, (no fittings included).
PRE-WIRED WITH PLUG-N-PLAY CONNECTOR

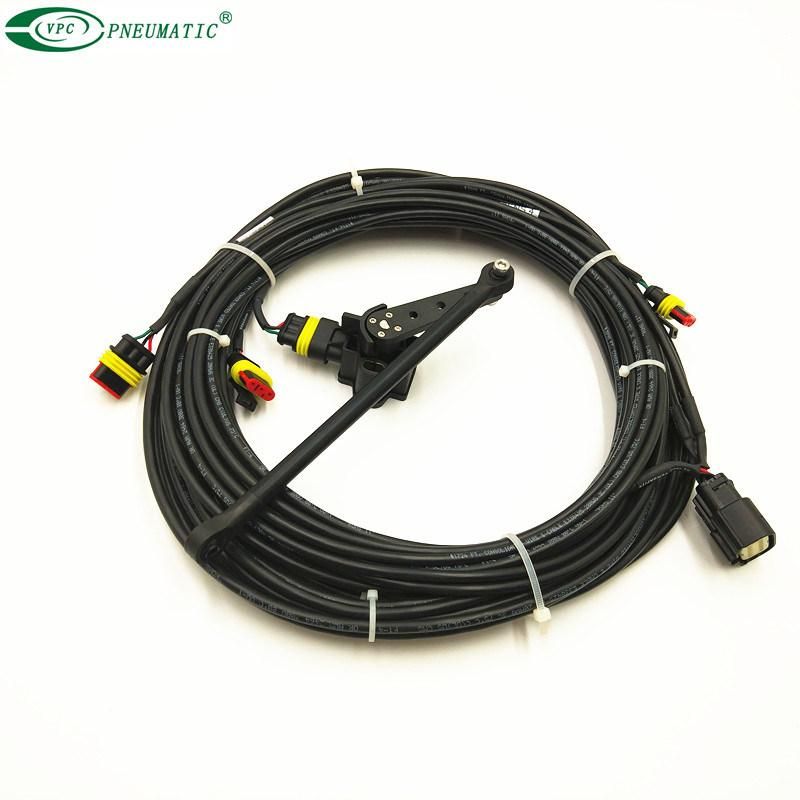

High quality weather-proof plug-n-play harnesses make for fast and accurate wire connections that will last in the harsh under-vehicle environment.
ALL STAINLESS STEEL VALVE COMPONENTS 200 PSI DIRECT OPERATED BUBBLE-TIGHT VALVES
The robust internal solenoid valve architecture maximizes flow rates, provides bubble-tight sealing, and guarantees operation up to 200 psi for millions of cycles.
