Outdoor Epistar P10 Outdoor Advertising LED Display Module

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：10mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>6500nits
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• Cabinet：Alu,Steel
• Weight：35kg,M2 (Aluminium)
• Service Solution：Front + Rear Service
• IP Rate：IP65
• Refresh Rate：>1920Hz
• Contrast Rate：3000:1
• Voltage：AC110-240V
• System：Nova
• Installation：Back Bolted Hanging
• Software OS：Windows
• Transport Package：Plywood Cases
• Specification：960x960mm
• Trademark：LEDventure
• Origin：China
• HS Code：8528591090
• Production Capacity：2000sqm,Month

=== Description ===

Item

Outdoor front service back service P10 led display screen module

Model Number

P10

Pixel Pitch

10mm

Pixel Density(pixels/M2)

10000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar, SMD

Module size(mm)

320x320mm (options)

Module Resolution(pixels)

32*32 (otions)

Min.Viewing Distance(m)

10-50

Brightness(nits)

>6500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

1/2 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

960x960mm / 960x1280mm / 1280x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

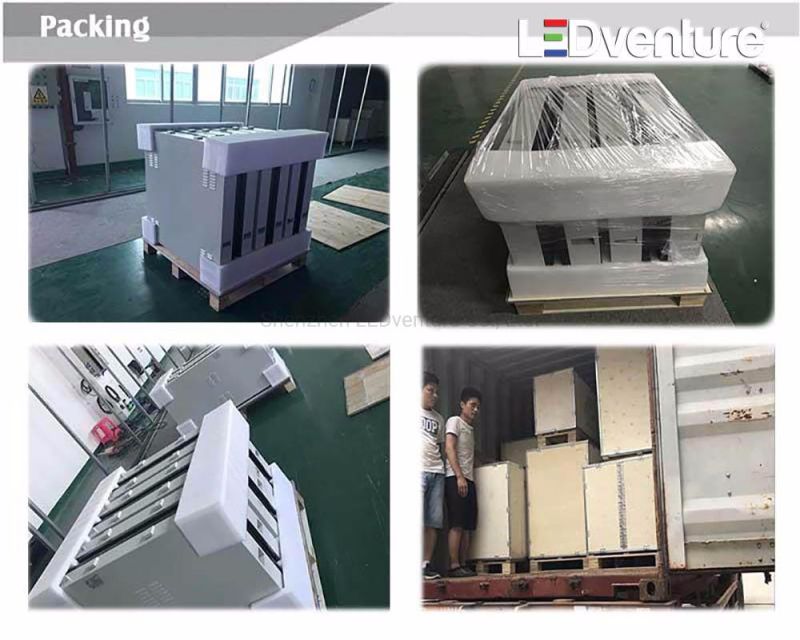

Part 6: Packing information by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
