WiFi USB 4G Novastar LED Display Sender Box Controller Tb4

• Tube Chip Color：Full Color
• IP Rating：IP43
• Pixel Pitch：No
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display
• Average Power Consumption：30 W

=== Base Info ===

• Model NO.：TB4
• Pixel Density：130 0000 DOT
• Scanning Mode：No
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS
• Resolution：130 0000DOT
• Supports Resolutions：up to 1920X1200@60Hz
• Input Voltage：DC 3.3-5.5V
• Product Name：Nova Sender Box Controller Tb4
• Transport Package：Carton
• Specification：15*20cm
• Trademark：Novastar
• Origin：China
• HS Code：9405600000
• Production Capacity：100000sqm,Year

=== Description ===

Basic Info.

Model NO. TB4 Pixel Density 130 0000 DOT Scanning Mode No Display Type LED Video Display Application Advertising Certification CE, RoHS Resolution 130 0000DOT Supports Resolutions up to 1920X1200@60Hz Input Voltage DC 3.3-5.5V Product Name Nova Sender Box Controller Tb4 Transport Package Carton Specification 15*20cm Trademark Novastar Origin China HS Code 9405600000 Production Capacity 100000sqm/Year

Product Description

Specification:

Taurus series products are the second generation multimedia player launched by Novartis technology for small and medium led full-color display.

Tb4 has the following advantages:

1.Support multi screen playback synchronization mechanism.

2.Strong processing performance. All round control scheme.

3.Support synchronous and asynchronous dual-mode. WiFi AP connection is supported.



The hardware of tb4 also has the following features:

It supports 1.3 million pixel carrying capacity, with the widest 4096 pixels and the highest 1920 pixels.

Support Gigabit wired network.

Support stereo audio output.

HDMI loop support.

Support HDMI input mode and full screen adaptive playback.

Support manual and timed switching of synchronous / asynchronous mode.

U disk program import and play are supported.

The on-board brightness sensor interface supports automatic and timed intelligent brightness adjustment.

Product description:

A.Electrical parameter:

1.input voltage 100V ~ 240V AC

2.Maximum power consumption 18W

B.Storage space

1.running memory 2GB

2.8GB internal storage board, 4GB available for users

C.Storage environment

1.temperature - 40 ºC ~ 80 ºC

2.Humidity 0% RH ~ 80% RH, no condensation

D.Working environment

1.temperature - 20 ºC ~ 60 ºC

2.Humidity 0% RH ~ 80% RH, no condensation

E.Package information size (length × width × height) 375mm × 280mm × 108m

1 x TB4

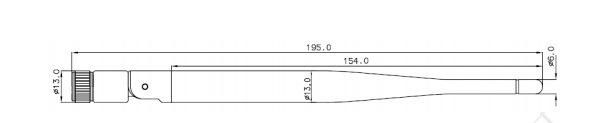

1 × WiFi omnidirectional antenna

1 × AC power line

1 × Quick Guide
