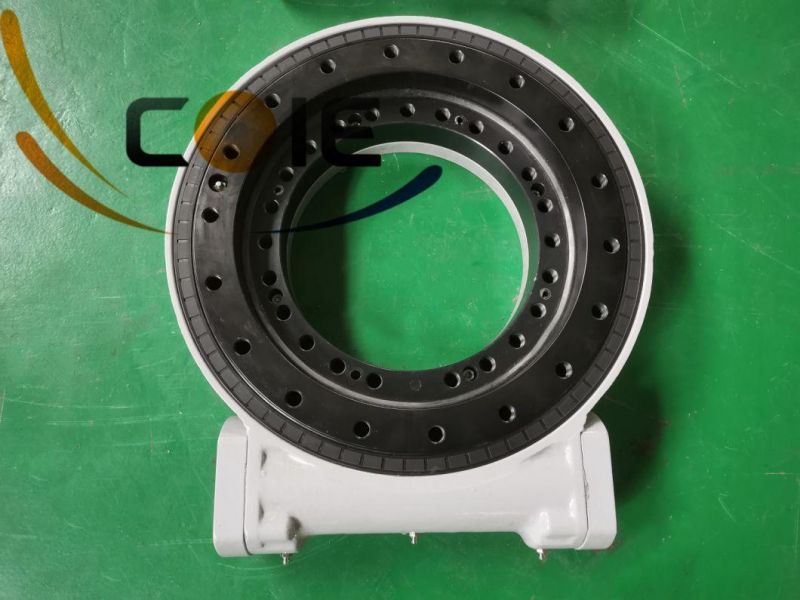

Worm Drive Slew Drive Slew Ring

• Material：42CrMo
• Holding Torque：38.7kn.M
• Tilting Moment Torque：33.9kn.M
• Output Torque：12.2kn.M
• Output Speed：1rpm
• Gear Ratio：59:1

=== Base Info ===

• Model NO.：WH9-59-25RH
• IP Class：IP65
• Static Axial Load：338kn
• Static Radial Laod：135kn
• Transport Package：Wooden Case
• Specification：WH9-59-25RH
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：5000PCS,Month

=== Description ===

Model

Place of Origin

Changzhou,China

Brand

Coresun Drive

Outer Dia.

270mm

IP Class

IP65

Inner Dia.

175mm

Tilting Moment Torque

33.9KN.m

Holding Torque

38.7KN.m

Mounting Bolts

M16

IP65

Gear Ratio59

59:1

Efficiency

40%

Coreun Drive rotation Drive product department of the independent technology and technology development to adapt to the market demand the high quality of rotation Drive products, Coresun Drive have full strain more specifications of the mature rotary Drive products and custom design and manufacture of such products for the customer the ability, for need to load in the low speed heavy load, high speed and high speed light load, the application of HanWang all can provide the corresponding product or solution.

Coresun Drive worm gear and worm type rotary Drive including cylindrical worm and enveloping worm two major categories, including cylindrical worm is suitable for medium speed overloaded and enveloping worm for overloading at low speed and high precision application, can self-locking worm gear and worm rotation Drive, in the field of dynamic movement can provide basis for security and to further simplify equipment overall design, is the superior industrial fittings.

Coresun Drive Slew Bearing Slew Drive Production Photo and Application

Coresun Drive Slew Drive Slew Bearing Slew Ring Relevant Certification as following
