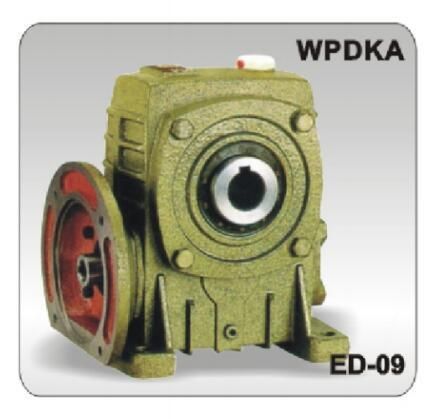

Wpdka 120 Worm Gearbox Speed Reducer

• Application：Motor, Machinery, Agricultural Machinery
• Hardness：Hardened Tooth Surface
• Installation：Vertical Type
• Layout：Coaxial
• Gear Shape：Bevel Gear
• Step：Single-Step

=== Base Info ===

• Model NO.：WPWDKA 120
• Type：Worm and Wormwheel
• Manufacturing Method：Cast Gear
• Toothed Portion Shape：Spur Gear
• Input Speed：1400rpm
• Output Torque：1.8-2430n.M
• Rated Power：2.2~3.0kw
• Transport Package：According to The Customer Request
• Specification：ISO9000
• Trademark：OEM; EED
• Origin：China
• HS Code：8483409000
• Production Capacity：800-1500PCS ,Month

=== Description ===

Basic Info.

Model NO. WPWDKA 120 Type Worm and Wormwheel Manufacturing Method Cast Gear Toothed Portion Shape Spur Gear Input Speed 1400rpm Output Torque 1.8-2430n.M Rated Power 2.2~3.0kw Transport Package According to The Customer Request Specification ISO9000 Trademark OEM; EED Origin China HS Code 8483409000 Production Capacity 800-1500PCS /Month

Product Description

Overview
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Quick Details
Gearing Arrangement:    Worm                                                                                                                 Brand Name:                  EED
Input Speed:                     1400 rpm                                                                                                          Certification:                   CE, ROHS, ISO9000
Rated Power:                    3 ~ 4KW                                                                                                            Output Torque:               2.8-2430N.M
Color:                                 Blue/Silver or on request                                                                                Origin:                              Zhejiang, China (Mainland)
Warranty:                           1 Year                                                                                                                 Ratio:1/10.1/15,1/20,1/25,1/30,1/40,1/50,1/60
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Supply Ability
Supply Ability:                   20000 Piece/Pieces per Month
Extra Service:                    OEM is welcome
QC System:                        ISO9001:2008
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Delivery
Package:                            Wooden box/Paper carton
Port:                                    Ningbo/Shanghai or on request
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------




1. Widely used in turbines, shaft liners and axletrees, good resistance to wearing, with high precision in
dimensions, lower noise, advanced centric running castings
2. Without vent and highly precision
3. The whole structure is compact and the weight is larger

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Notice of installation

1 .Thebase-plate must be plane and stoutness, and the base-plate must be screwed downand shockproof.
2. Theconnecting shaft of prime mover, reducer and operation device must be coaxialinstallation.
3 .Thediameter tolerance zone of input and output shaft is H6, the holes of fittings(such as couplings, belt-
pulley, sprocket wheel and so on) must properly matethe shaft, which prevents bearing from breakage be-
-cause of over-loose mate.

4. Driverssuch as sprocket wheel and gear must be fitted close to bearings in order toreduce bending stre-
-ss of hanging shaft.
5. Whiteassembling motor of WPD reducer, it is necessary that proper amount of butterapplies to the worm
shaft input hole and keyway, avoiding assembling tootightly and rusting after using for a long time.
6. WhenOrdering or using all kinds of WPD type, if the motor weight is binger than thecommon, supporting
set is required.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Notices of usage

1 .Before using, please check carefully whether the reducer model, distance, ratio, input connecting method,
output shaft structure, input and output shaftdirection and revolving direction accord with requirement.

2 .According to the requirement of selecting lubricant oil in the productmanual, please fill proper category and
brand lubricant. And then screw on thevent-plug; Unlock the small cone-plug of vent-plug. Only after doing th-
ese, reducer is already for starting up running. The proper brand and adequatelubricant oil is required, replac-
ing oil in time conforming to the request ofproduct manual is also necessary, especially after using first 100 h-
ours, it isrequired refilling new oil.

3 .Whenabnormal circumstances occur, please stop and check reducer per solutions andreasons for faults of
reducer (allowable highest oil temperature is 95, under this temperature limit, ifoil temperature no more goes
up, please let reducer continue running.


About Xingda since 1984
Hangzhou Melchizedek Import & Export Co., Ltd. is a leader manufactur in mechanism field and punching/stamp
ing field since 1984. Our main product, NMRV worm gear speed reducer and series helical gearbox, XDR,
XDF, XDK, XDShave reached the advanced technique index of the congeneric European and Janpanese produc
ts, We offer standard gears, sprockets, chains, pulleys, couplings, bushes and so on. We also can accept orders
of  non-standard products, such as gears, shafts, punching parts ect, according to customers' Drawings or sam-
ples.

Our company has complete set of equipment including CNC, lathes, milling machines, gear hobbing machine, g-
ear grinding machine, gear honing machine, gear shaping machine, worm grinder, grinding machines, drilling m-
achines, boringmachines, planer, drawing benches, punches, hydraulic presses, plate shearing machines and s-
o on. We have advanced testing equipments also.

Our company has established favorable cooperation relationships with sub-suppliers involving casting, raw mat-
erial, heat treatment, surface finishing and so on.
