Superior Quality Full Downdraft Water Soluble Car Maintenance Paint Booth with Ce

• Type：Painting Spray Booth
• Certification：CCC, CE, CSA, GS
• Substrate：Steel
• Brand：Guangli
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type

=== Base Info ===

• Model NO.：GL5-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：30000
• Lighting System：Upper Light+Side Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Heating System：Riello Brand Diesel Burner
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：20GP
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：10, 000 PCS,Year

=== Description ===

Basic Info.

Model NO. GL5-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 30000 Lighting System Upper Light+Side Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Heating System Riello Brand Diesel Burner Transport Package Iron Frame Packing and Carton Packing Specification 20GP Trademark GUANGLI Origin Guangzhou, China HS Code 8419899090 Production Capacity 10, 000 PCS/Year

Product Description

Superior Quality Full Downdraft Water Soluble Car Maintenance Paint Booth with CE

Guangli Spray Booth Description
--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,full grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure        lock.
--Lengthened room as optional:outside size:7.6×5.6×3.5(m)  inside size:7.5×3.9×2.7(m)
--Ramp:2 pcs of grids.
--One 11kw intake fan and one 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend.5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper,electrical VCD as optional,one pressure meter.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer             coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--Upper light :10sets,4*40W per set.side lights: 8 sets,4*40w.
--Control box:components imported,overload,overheat,phase-lacking,phase-locking                          protection,engine Y/△start.
--Automatically stop when preset time is up.
--Constant temperature spraying
--Environmental filter:either M style or drawer style active carbon equipment can be adopted.


Model	GL5-CE
External size (m)	7.0×5.6×3.5
Internal size (m)	6.9×3.9×2.7
Entrance Width(m)	3.0
Entrance Height(m)	2.66
Fan capacity( m 3 /h )	30000
Air velocity (m/s)	0.3-0.5
Drying Temperature	20 ºC- 80ºC
Oil consumption (L/unit)	6-8
Power (kw)	25
Water paint device	As optional
Suitable Automobile Type	Car

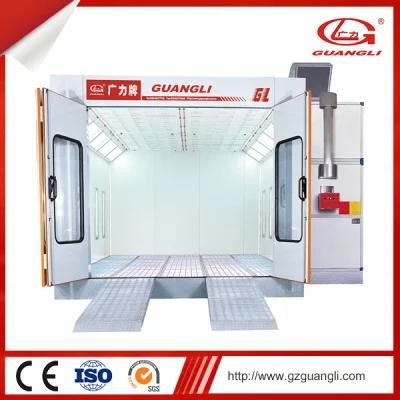

GL5-CE Spray Booth Show




Company profile
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise.

GZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer for 22-year technical and production experience,founded in 1994.

All our Spray booth,painting booths and car lifts have passed the CE certificate,CCS certificate and our company has passed ISO9001.


Equipment
With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and craftsmanship.


Exhibition




Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.

FAQ
1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
 different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.

Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.Contact Information:
Tel:+86-20-86378972

Website:gzguangli.en.made-in-china.com
