Quick Installation High Grayscale LED Display with Ce (BM2)

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2
• Pixel Configuration：SMD1515, 1r, 1g, 1b
• Pixel Density：250000
• Scanning Mode：1,40

=== Base Info ===

• Model NO.：BM2
• System Operating Platform：Nova
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP41
• Certification：CE, RoHS, CCC, ISO9001, FCC
• Pixel Pitch(mm)：2
• Pixel Matrix Per Sq.M：250000
• Brightness (Nits)：1000
• Scan：1,40
• Cabinet Resolution：320*240
• Power Con. (Max / Avg)：500,150 W,Sqm
• Module Dimension：320X160mm , 1.06X0.53FT
• Cabinet Weight：9kg , 19.84ib ( Die-Casting Aluminum)
• Cabinet Dimension：640X480mm , 2.1X1.57FT
• Service Access：Full Front
• Refresh Rate (Hz)：3840
• Grey Scale (Bit)：16
• Viewing Angle (H/V)：160 , 160
• IP Rate：IP41
• Transport Package：Plywood Box
• Specification：640*480
• Trademark：LEDFUL
• Origin：Shenzhen
• HS Code：8528591090
• Production Capacity：2000sqm,Month

=== Description ===

Basic Info.

Model NO. BM2 System Operating Platform Nova Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP41 Certification CE, RoHS, CCC, ISO9001, FCC Pixel Pitch(mm) 2 Pixel Matrix Per Sq.M 250000 Brightness (Nits) 1000 Scan 1/40 Cabinet Resolution 320*240 Power Con. (Max / Avg) 500/150 W/Sqm Module Dimension 320X160mm / 1.06X0.53FT Cabinet Weight 9kg / 19.84ib ( Die-Casting Aluminum) Cabinet Dimension 640X480mm / 2.1X1.57FT Service Access Full Front Refresh Rate (Hz) 3840 Grey Scale (Bit) 16 Viewing Angle (H/V) 160 / 160 IP Rate IP41 Transport Package Plywood Box Specification 640*480 Trademark LEDFUL Origin Shenzhen HS Code 8528591090 Production Capacity 2000sqm/Month

Product Description

Quick installation High Grayscale LED display with CE(BM2)
ledful.en.made-in-china.com

BM Series
             Fine Pitch·Wall Mounted·Front Installation·Full Front Service LED Display
LEDFUL------A large number of actual installation cases

LEDFUL BM series LED Display providing solutions for control room, cooperate, broadcast, control center, studio, meeting room, press conference,event, etc.


LEDFUL------What about our products?

Exported to 83 countries and regions.Top reliable LED display manufacturer.Over 5,600 successful projects in the world

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

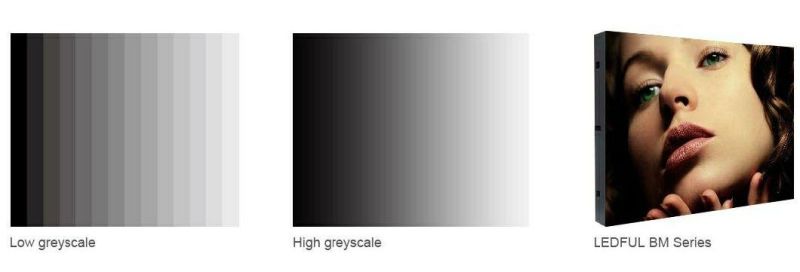

Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance



High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.



High Refresh Rate
It could be reach 3840HZ

LEDFUL------How to install LED cabinets in front side?
Step 1 : Mount bracket on the wall
Step 2 : Mount empty cabinet on the bracket
Step 3 : Connect power and data, mount modules on the cabinet.
Back view and aging photos
LEDFUL design the CAD drawing on how to fix up the LED display for free and some other expert suggestion. We will send our engineers to your place if we are expected after our negotiation.
 If you would like to learn more of U series Indoor front installation HD LED display, please click the below link for details.
ledful.en.made-in-china.com
Welcome to contact our sales online or leave message on website or send your inquiry
 You also could write to skype or whatsapp for quick response.
Lydia's Mobile : +86 15327734664LEDFUL------What can we do for you?
Professional, High Efficient and Caring

One-stop solution provider More designs and more solutions
Wireless control, 4G, Wifi, Cluster control Truss hanging, stacking, touring, LED ceiling, video floor
Irregular shaped, flex, curved, round, sphere, cubic, customized
Focus on the improvement and innovation of rental LED cabinets High efficient and enthusiastic team to make reliable LED display
Top LED Display Manufacturer

Exported to 83 countries and regions
Top reliable LED display manufacturer Over 5,600 successful projects in the world
R&D staff occupied 10% of all the employees.
CE, RoHS, FCC, CCC, ISO9001:2008 standard


Best Balance of Quality & Price
Provide with innovative and satisfying products Excellent product quality, quick and professional services
Always ready for your any change on LED display details.

LEDFUL------FAQQ1. Are you trading company or manufacturer?
A: We are led display manufacturer

Q2. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4:Minimum distance of the audience? (Viewing distance)
A:P2/3/4/5/6mm: From 2/3/4/5/6 meter and more , P10/12/16/20/25: From 10/12/16/20/25 meter and more
This very important option determine the pixel pitch that will be used for the display. The smaller distance, the more expensive.

Q5. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.

Q8: What is the control system?
A: We use Nova control system.

Q9: How can you ensure your led display product quality?
A: LEDFUL Opto-electronics have been enrolled in led display industry for almost 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
