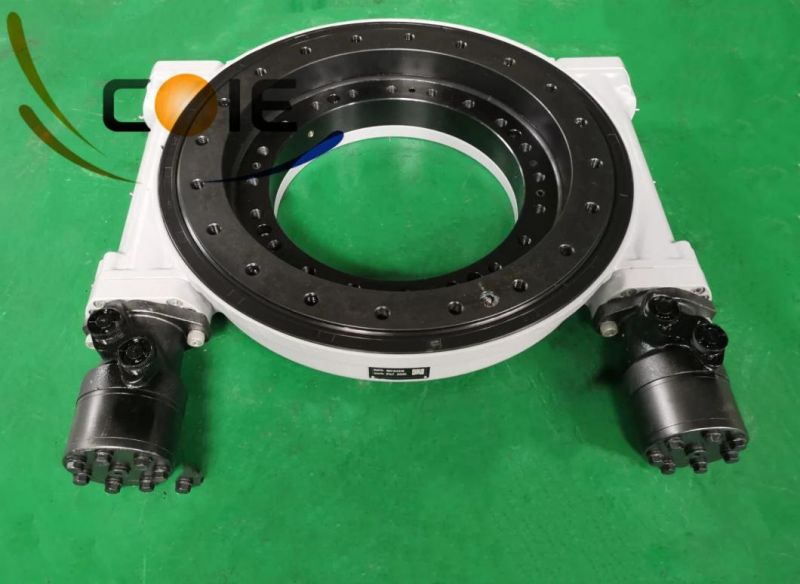

Dual Worm Slewing Drive
Showtime Packing Co., Ltd / 2022-06-08
- Material：42CrMo
- Holding Torque：72.3kn.M
- Tilting Moment Torque：135.6kn.M
- Output Torque：21kn.M
- Output Speed：1rpm
- Gear Ratio：102:1
=== Base Info ===
- Model NO.：WH17-2-85RH
- IP Class：IP65
- Static Axial Load：970kn.M
- Static Radial Laod：390kn.M
- Precision：0.15 Degree
- Corrosion Protection：C4
- Mechanical Efficiency：40%
- Transport Package：Standard Exporting Package
- Specification：WH17-2-RH
- Trademark：Coresun Drive
- Origin：Changzhou
- HS Code：8483409000
- Production Capacity：3000PCS,Month
=== Description ===
Model
WH17-2
Place of Origin
Changzhou,China
Brand
Coresun Drive
Type
Material
42CrMo,50Mn
Output Torque
21KN.m
Tilting Moment Torque
135.6KN.m
Holding Torque
72.3K N.m
Static Axial Rating
970KN
Static Radial Rating
390KN
Dynamic Axial Rating
235KN
Dynamic Radial Rating
205KN
Gear Ratio
102:1
Efficiency
40%
Our Advantage:
1. Double skeleton oil seal structure, sealing performance reaches IP65, which can meet long-term outdoor use.
2. The surface of the slewing bearing adopts high-quality galvanized or QPQ treatment process, which has good corrosion resistance
3. Worm gear meshing, high precision, large tooth contact area, high transmission torque, suitable for low speed and high torque applications
4. Customized solutions to meet different application conditions.

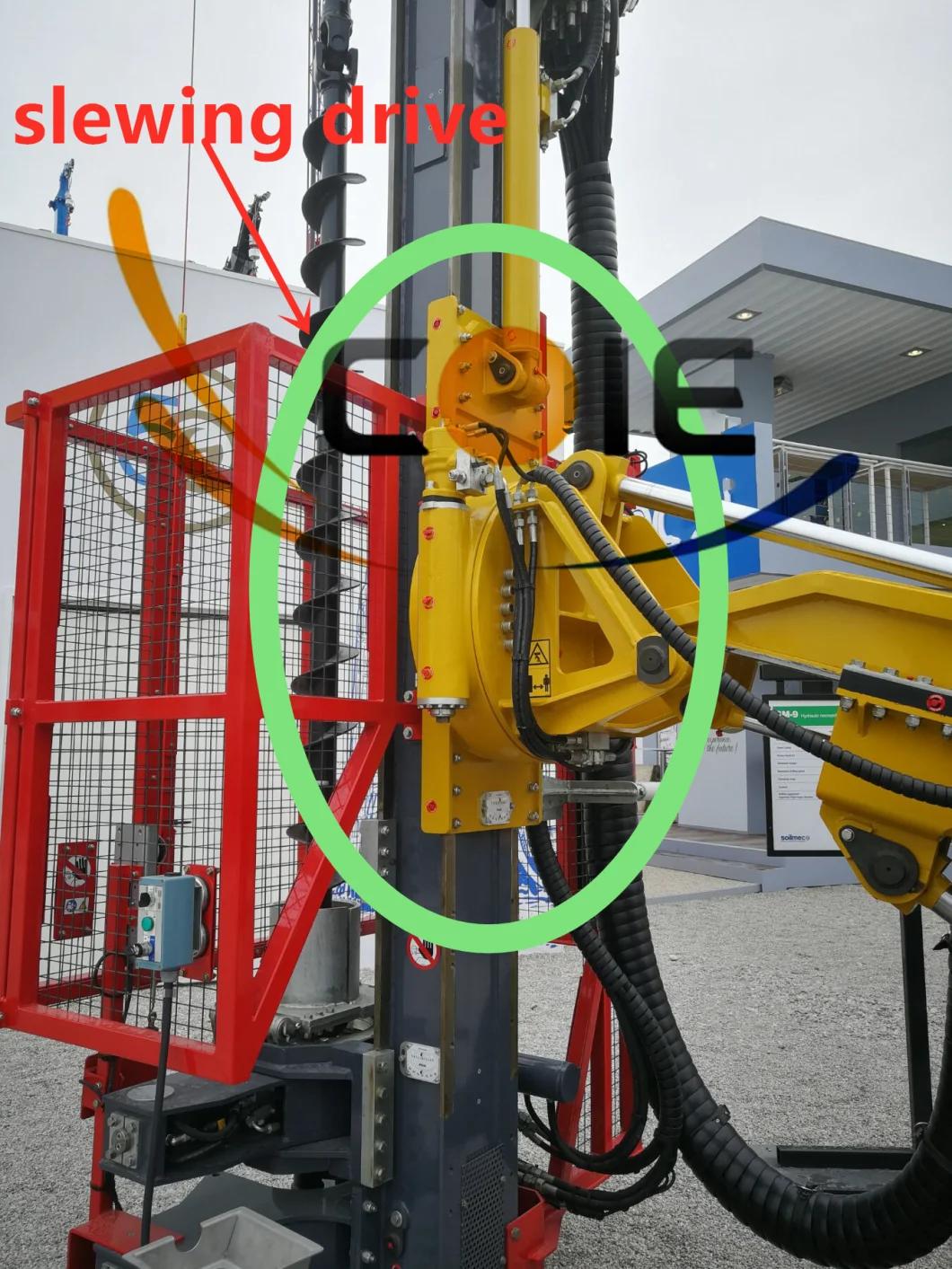

Production Photo and Application

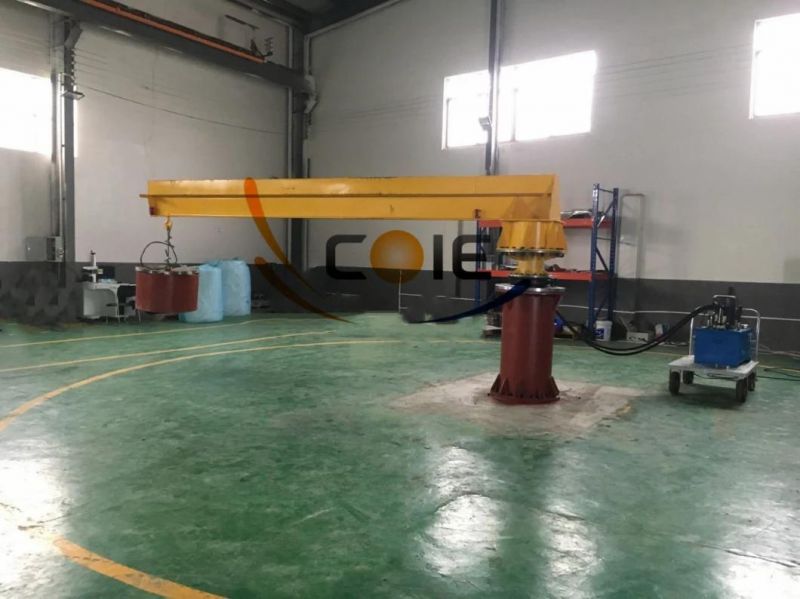

Coresun Drive makes the holding torque testing to ensure the quality and safety factor on our slewing drive and bearing.Quality is our foundation for the long-term development.

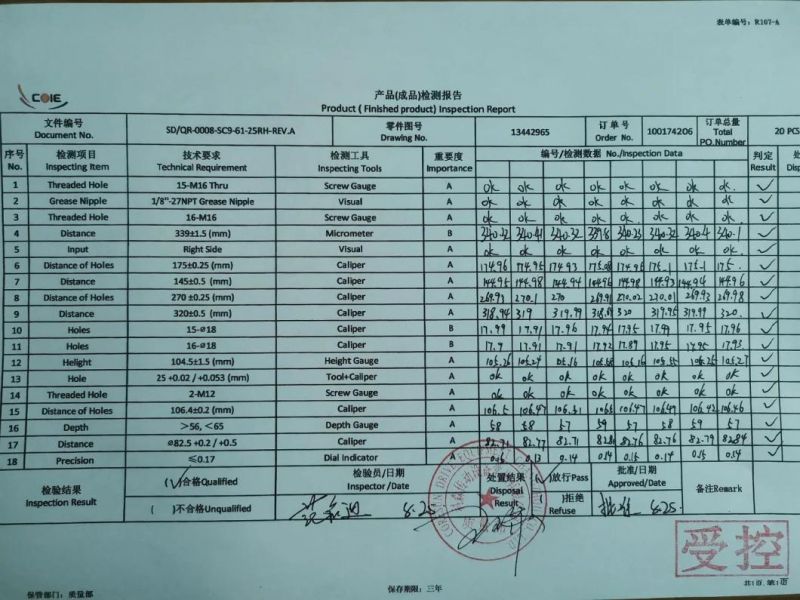

For Coresun Drive slewing drive,we make 100% finished product inspection on worm gear slewing bearing.
CONTACT US
It is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!
