M3200c Winner Ce Approved Industrial Spray Booth

Sidike New Materials (Jiangsu) Co., Ltd. / 2022-06-23

M3200c Winner Ce Approved Industrial Spray Booth

  • Type:Spray Booth
  • Certification:CE
  • Substrate:EPS
  • Brand:Winner
  • Coating:Powder Coating
  • Airflow Direction:Fully Undershot-type

=== Base Info ===

  • Model NO.:M3200C
  • Heating Mode:Diesel
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Heating:Electric
  • No Load Speed:0.25m,S
  • Voltage:380V,3phase,50Hz
  • Intake Fan:1 Set 5.5 Kw Fan
  • Exhaust Fan:1 Set 4kw Fan
  • Color:Red, Blue, Yellow, Grey, White, etc
  • Filter System:Ceiling and Flooring Filters
  • Power:12kw
  • Transport Package:Container
  • Specification:26CBM
  • Trademark:WINNER
  • Origin:Shandong
  • HS Code:8419899090
  • Production Capacity:30 Sets,Month

=== Description ===

Outside Size(mm)

7000*4000*3300 (L*W*H)

Front Door(mm)

2800*2550(W*H)

Inside Size(mm)

6900*3900*2600 (L*W*H)

Total Power(KW)

12KW for diesel burner / 36 KW for infrared heating

Wall Panel

EPS colorful steel skin panel, 50mm thick;

Tongue & groove style, anti-flame and heat-insulation.

Basement

Galvanized steel sheet and square steel pipe assembling.

2 rows of grid plates made by flat bar and round steel. 3 rows of diamond plates. 2 rows of ramps.

Intake Fans

Two sets of 3 KW fan for intaking air, air capacity 20000m3/h

Exhaust Fans

One set of 4 KW fan for exhausting air, air capacity 12500m3/h

Purification system

Pre-filter, 600G high efficiency ceiling filter, Fiberglass floor filter

Heating System



(Diesel burner or Infrared heating)

Italy Riello G20 Diesel Burner, 200000Kcal/h. Stainless steel heat exchanger,

argon arc welding. Pneumatic-damper for changing spraying and baking

Infrared heating system, 3-tubes/unit, totally 8 heating units, 24KW

Lighting System

For diesel burner heating system. Ceiling Lights: 8Units×4Pcs=32Pcs×36W.  Side Lights: 6Units×4Pcs=24Pcs×30W

For infrared heating system. Ceiling Lights: 8Units×4Pcs=32Pcs×36W

Controlling system

Power switch, Spray/baking switch, Light switch, Emergency stop, etc.

M3200c Winner Ce Approved Industrial Spray Booth
M3200c Winner Ce Approved Industrial Spray Booth



M3200c Winner Ce Approved Industrial Spray Booth



Related Products:

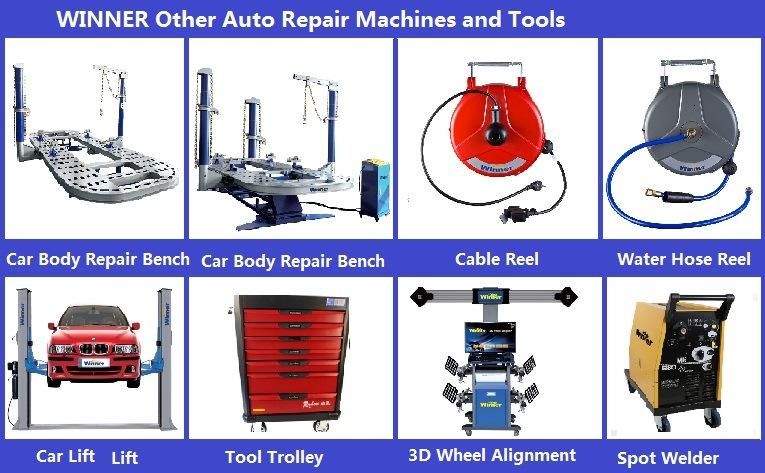

 1. WINNER have a wide range of auto workshop equipments for car maintenance and repairing.

You can buy most items in WINNER related to auto workshop equipments to save your energy and cost to purchase everywhere.

2. WINNER Main Products :

1) Spray Booth (Car painting and baking)

2)Auto Frame Machine(Bench for car body straightening)

3)Retractable Hose Reels(Cable reel, water hose reel, air hose reel)

4)Car Lift (1post, 2post, 4post, scissor lift and parking lift)

5)3D wheel Alignment

6)Tool Trolley(Car repair tools and trolley)

7)Spot Welding Machines

8)Tyre Changer

M3200c Winner Ce Approved Industrial Spray Booth


Packaging & Shipping

M3200c Winner Ce Approved Industrial Spray Booth

Our Services

 M3200c Winner Ce Approved Industrial Spray Booth




Company Information

M3200c Winner Ce Approved Industrial Spray Booth

FAQ

Q. What should I expect from a new spray booth?

A. Filtration: Quality finishes require clean contaminate-free air which is accomplished by proper air filters. Prior to air entering the booth, YANTAI WINNER uses pre-filters to capture large particles and debris, and high-efficiency intake filters to filter out any remaining dirt and dust particles. The air is filtered again before it is recirculated or exhausted from the booth.

Airflow: Proper airflow in the booth is accomplished by creating a flow of air that envelops the vehicle during booth operation. This airflow is responsible for carrying away paint overspray during the refinish process, and air movement during paint curing.

Lighting: Another key element is bright, shadow-free lighting throughout the booth. YANTAI WINNER utilizes color-corrected light fixtures, in the proper quantity and correct location. This creates an environment that allows for proper color match and paint flow identification.


Q. How do you control your quality?

A. Our factory is ISO certified. We have our own QA and QC team. They will check on site and finished products to ensure all details to meet our highest standard and the customer's requirements.


Q. What is your payment terms?

A. We accept T/T, L/C, Western Union, Alibaba Trade Assurance, etc.


Q. How long is your lead time?

A. For stock or regular products, our lead time is 7 to 15 days. For custom-made products, our lead time is 20 to 30 days.



Q. What is your warranty?

A. Our warranty is 13 months. Parts have free replacement excluding artificial damage in Warranty. We will also stock spare parts as long as one equipment of this type is running in the world.



Q. How about visiting your company?

A. We welcome your visit at any time. Our factory locates in Shandong province in the east China.
