Super Long S Type 2835 Flexible LED Strips

Qingdao Haochen Packing Co., Ltd. / 2022-06-27

Super Long S Type 2835 Flexible LED Strips

  • Certification:UL, RoHS, CE, Bis
  • Power:5.4W,M
  • Emitting Color:2700K,3000K,4000K,5000K,6500K
  • Voltage:12V DC
  • IP Rating:IP20
  • LEDs Qty:30 LEDs,Meter

=== Base Info ===

  • Model NO.:JM30GX07A
  • Product Size:5000*7.1*1.15mm
  • Cuttable Unit:100mm
  • LED Pitch:33.3mm
  • Max. Cascade Length:5 M
  • Min. Bend Diameter:10 mm
  • Mounting Solution:3m Tape
  • Operating Ambient:-25 Centigrade Degrees to 45 Centigrade Degrees
  • Storage Environment:-25 Centigrade Degrees to 60 Centigrade Degrees
  • Transport Package:Carton Packaging
  • Specification:5M,10M,15M,20M,25M,30M,50M per roll
  • Trademark:OEM,ODM,MYNICE,Neutral
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:1, 000, 000m,Month

=== Description ===

Basic Info.

Model NO. JM30GX07A Product Size 5000*7.1*1.15mm Cuttable Unit 100mm LED Pitch 33.3mm Max. Cascade Length 5 M Min. Bend Diameter 10 mm Mounting Solution 3m Tape Operating Ambient -25 Centigrade Degrees to 45 Centigrade Degrees Storage Environment -25 Centigrade Degrees to 60 Centigrade Degrees Transport Package Carton Packaging Specification 5M/10M/15M/20M/25M/30M/50M per roll Trademark OEM/ODM/MYNICE/Neutral Origin China HS Code 9405409000 Production Capacity 1, 000, 000m/Month

Product Description

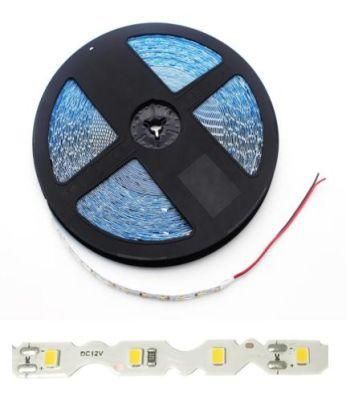

Super long S type 2835 flexible led strips

Application
- Suitable for advertising signs with small spaces such as mini characters, illuminated signs, and luminous characters.
- Suitable for hotels, shopping malls, homes, cabinets, display racks, etc., used in main lighting, indirect lighting, dark groove lighting, Outline lighting, decorative lighting, etc.

Main features
- Using 2835 SMD LEDs, the color consistency is good.
- It adopts a new type of rolled copper process, which has good heat dissipation and strong conductivity.
- The longest connection length can reach 50 meters, no welding, and high efficiency.
- The longest cascade of single-ended power supply is 5 meters, the voltage drop is small, and the brightness consistency is high.
   It can be bent at will and can be attached to different surfaces.

Main Parameters
Product size  5000*7.1*1.15 mm
Cut-able unit  100mm
LED pitch  33.3 mm
LED quantity  30 LEDs/m
Max. cascade length  5 m
Min. bend diameter  10 mm
Mounting solution  3M tape
Operating ambient  -25ºC~45ºC
Storage environment  -25ºC~60ºC / 60% RHSuper Long S Type 2835 Flexible LED Strips  Super Long S Type 2835 Flexible LED Strips

1. Ranking at t a = 25ºC.
2. Tolerance of measurements for brightness is ±10%, tolerance of measurements for the Chromaticity Coordinate is ±0.01.

Product wiring diagram
Super Long S Type 2835 Flexible LED Strips

Package

Super Long S Type 2835 Flexible LED Strips
Instructions

- Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and
norms.
- Installation by qualified electrician only.
- Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.
- Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability.
- Do not fold it in case any damage of LED beads.
- Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.
- Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent
with the voltage of the strip to avoid damage.
- LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20
ºC ~ + 40 ºC.Storage temperature: -25 ºC ~ + 60 ºC/60%RH.
- Please use the strips without waterproof within indoor environment with humidity less than 70%.
- Please be careful during operation. Do not touch the AC power supply in case of electric shock.
- Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the
product.
- Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
