24t 28t 32t 36t Bogie Boogie Suspension for Semi Trailer

• Certification：ISO,TS16949
• Car Make：Volkswagen, Benz, Hyundai, Toyota, Nissan, Ford, Volvo, Mazda, Kia
• Position：Rear
• OEM：No
• Type：Bogie
• Name：Boogie Suspension

=== Base Info ===

• Model NO.：spoke type
• Transport Package：Pallet, 6sets ,1X20′cntr.
• Specification：24T, 28T, 32T
• Trademark：WONDEE
• Origin：China

=== Description ===

Basic Info.

Model NO. spoke type Transport Package Pallet, 6sets /1X20′cntr. Specification 24T, 28T, 32T Trademark WONDEE Origin China

Product Description

1. On Wondee Bogie suspension Since 1999
2. 20 years experience on Bogie suspension components
3. 1 year Quality warranty
4. ISO, TS16949 Certificate
5. 7x16 hours service
6. Customized ODM OEM Bogie suspension available
7. 4 Global Offices

WONDEE Best Single Point Suspension

Wondee autoparts has been supplying trailer parts more than 20 years.

You can be confident, because WONDEE believe in high quality and considerate service all the time.

1.Has passed the ISO and TS16949 standard authentication of international quality control system

2.Strict quality control system to assure our excellent product quality.

3.products are popular in the worldwide market, including North American, South American, European, African and Southeast Asian markets.

4: Wondee also supply Mechanical Suspension with 2-axle,3-axle,4-axle suspension

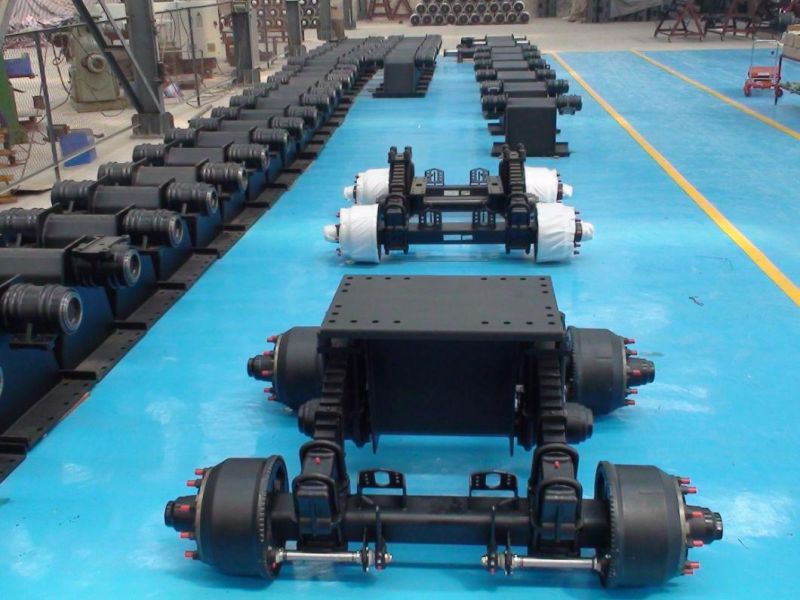

WONDEE Bogie Suspension Photos :



WONDEE Bogie date parameter:

High Plate type:

Spoke type
Item No.	Rated Load(kg)	Weight  (kg)	Bearing type	Brake Lining(mm)	Dual Spacing(mm)	Leaf  Spring(mm)	Axle Space(mm)
WBHS24-01	24000	2150	33213/33118	Φ 420*200	1850	980	1500
WBHS28-01	28000	2550	33215/32219	Φ 420*200	1900	900	1550
WBHS32-01	32000	2600	32314/32222	Φ 420*200	1900	900	1550
Drum type
Item No.	Rated Load(kg)	Weight  (kg)	Bearing type	Brake Lining(mm)	Track   (mm)	Leaf  Spring(mm)	Axle Space(mm)
WBHD24-01	24000	1850	33213/33118	Φ 420*200	1840	980	1400
WBHD28-01	28000	2320	33215/32219	Φ 420*200	1840	900	1550
WBHD32-01	32000	2320	32314/32222	Φ 420*200	1840	900	1550

Low Plate type:

Spoke type
Item No.	Rated Load(kg)	Weight  (kg)	Bearing type	Brake Lining(mm)	Dual Spaning(mm)	Leaf  Spring(mm)	Axle Space(mm)
WBLS24-01	24000	2100	33213/33118	Φ 420*200	1870	980	1400
WBLS28-01	28000	2380	33215/32219	Φ 420*200	1870	900	1550
WBLS32-01	32000	2380	32314/32222	Φ 420*200	1870	900	1550
Drum type
Item No.	Rated Load(kg)	Weight  (kg)	Bearing type	Brake Lining(mm)	Track   (mm)	Leaf  Spring(mm)	Axle Space(mm)
WBLD24-01	24000	1850	33213/33118	Φ 420*200	1870	980	1400
WBLD28-01	28000	2320	33215/32219	Φ 420*200	1870	900	1550
WBLD32-01	32000	2320	32314/32222	Φ 420*200	1870	900	1550

WONDEE Boogie Suspension Workshop :



WONDEE Boogie Suspension Packing and container loading:

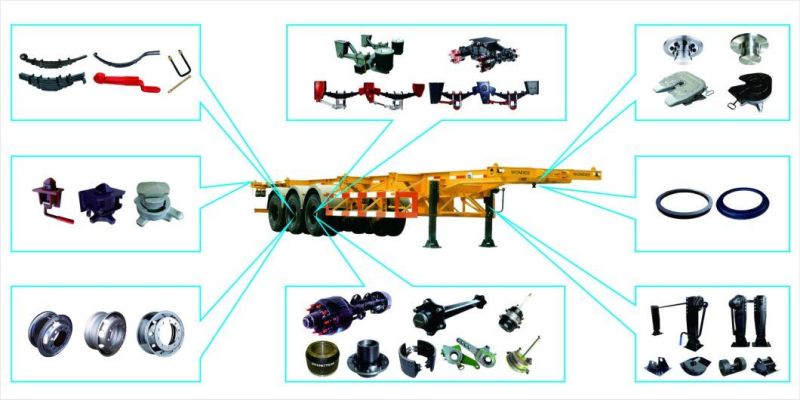

Besides Bogie suspension ,WONDEE also Supply:


Semi-trailers:
Skeletal semi-trailers	flatbed semi-trailers	container semi-trailers	low bed semi-trailers
van semi-trailers	fuel tank semi-trailers	logging semi-trailers	Fence Semi trailers
Spare Parts:
Leaf spring,	flat bar,	Chassis,	H-beam
Air suspension,	mechanic suspension,	bogie	Coupling,
Axle	air chamber,	slack adjuster	hitch.
Brake drum	brake shoe	brake lining	wheel hub
tubeless wheel rims,	tube wheel rims,	Aluminum wheel rim	wheel bolt
u bolt	center bolt	hub bolt	twist lock,
Turntable,	5th wheel,	landing gear,	king pin,
