Truck Tyre Changer Machine Price for Auto Repair Equipment

• Warranty：14 Months
• Structure：Horizontal

=== Base Info ===

• Model NO.：TC-826
• Power Source：Pneumatic
• Type：Simple Disassembly
• Automatic：Semi-Automatic
• Standard：Standard
• Certification：CE
• Condition：New
• Product Name：Truck Tyre Changer Machine Price
• Working Pressure：130-150bar
• Outside Clamping：10-26"
• Keywords：Truck Tire Changer
• Certificate：CE
• Max. Wheel Diameter：1600mm
• Bead Breaker Force：2800kg
• Color：Customized Color Acceptable
• Machine Weight：561kg
• Usage：Truck Tire Changing Repair
• Power：1.5kw
• Packing：2030*1590*940mm, 3.03cbm, 600kgs
• Maximum Tire Width：760mm
• Max Tire Weight：1000kg
• Delivery Time：7-15days
• Transport Package：Plywood
• Specification：2030*1590*940mm
• Trademark：YuanMech
• Origin：Yingkou, Liaoning, China
• HS Code：8479899990
• Production Capacity：3000PCS,Month
• Package size per unit product：203.00cm * 159.00cm * 940.00cm
• Gross weight per unit product：600.000kg

=== Description ===

Basic Info.

Model NO. TC-826 Power Source Pneumatic Type Simple Disassembly Automatic Semi-Automatic Standard Standard Certification CE Condition New Product Name Truck Tyre Changer Machine Price Working Pressure 130-150bar Outside Clamping 10-26" Keywords Truck Tire Changer Certificate CE Max. Wheel Diameter 1600mm Bead Breaker Force 2800kg Color Customized Color Acceptable Machine Weight 561kg Usage Truck Tire Changing Repair Power 1.5kw Packing 2030*1590*940mm, 3.03cbm, 600kgs Maximum Tire Width 760mm Max Tire Weight 1000kg Delivery Time 7-15days Transport Package Plywood Specification 2030*1590*940mm Trademark YuanMech Origin Yingkou, Liaoning, China HS Code 8479899990 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 203.00cm * 159.00cm * 940.00cm Gross weight per unit product 600.000kg

Product Description

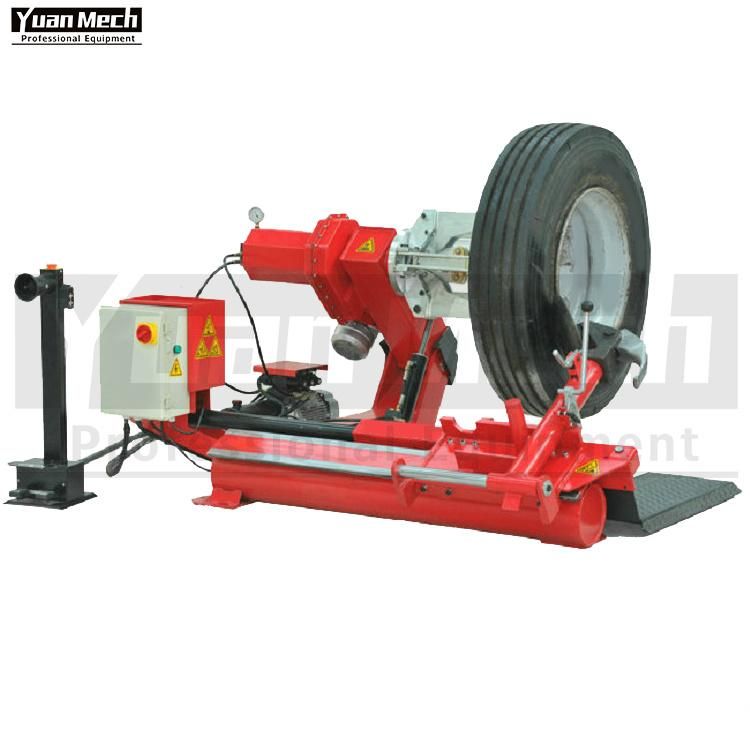

China Factory Supplier Truck Tyre Changer Machine Price For Auto Repair Equipment with CE
Applicable for changing truck and bus tyres whose rim diameter between 14"-26".

Model	TC 826 Truck Tire Changer
Rim diameter	14"-26"
Max tire weight	1000kgs
Max wheel diameter	1600mm
Max wheel width	780mm
Working pressure	130-150bar
Working voltage	380V/220V/110V
Gear box motor	1.8kw
Hydraulic motor	1.5kw
Packing	2030*1590*940mm,3.03cbm,620kgs

 It can demount and mount all kinds of truck, bus and off the road tires.

It is operated by a movable low-voltage control console, and this console is light-weight and easy to carry.

The operating voltage is 24V, safe and stable.

The tool head and bead breaking disk can rotate to make it convenient to adjust the position to dismount/mount the tire.

The tool arm, lifting arm and jaw clamps are all hydraulically driven.

The guide rail is welded first and then machined. This can prevent welding deformation defects, ensure the accuracy of the guide rail, and make the tool arm movement more stable and smooth.

This product meets EU quality standards and has obtained CE certification.





1. Why is filter-regulator (FRL) so important?
It dry the air so there is no moisture inside pneumatic components. It lubricates the rubber seals to extend its service life. In general FRL is important to maintain long service life of the machine.
2. When working table doesn't turn, how to determine if the problem comes from gearbox, motor or switch?
Disconnect belt and see if the motor can run properly. If not, test the motor itself to see clockwise rotation and anti-clockwise rotation. If motor running properly then the problem is the switch.
We have trouble shooting in details, please contact us for more information.
3. When working table doesn't have needed power to clamp the rim, how to trouble shooting if the problem comes from table cylinder, turning air distributor or pedal valve?
When the cylinder not strong enough, there could be air leaking. The leaking could be on the covers or internal piston. There is a systematic method to trouble shoot, please contact us if you are interested in how to trouble shoot.
