Bevel Helical Geared Mootor Gearbox for Crane

HEBEI TILANG METALWARE SALES CO., LTD. / 2022-06-27

Bevel Helical Geared Mootor Gearbox for Crane

  • Application:Machinery
  • Function:Distribution Power, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction
  • Layout:Corner
  • Hardness:Hardened Tooth Surface
  • Installation:Flange, Shaft, Torque Arm
  • Step:Three-Step

=== Base Info ===

  • Type:Cylindrical Gear Box
  • Transport Package:Carton or Plywood Case
  • Specification:CE, SGS, ISO
  • Trademark:Starshine Drive
  • Origin:China
  • HS Code:8483409000
  • Production Capacity:5000PCS, Month

=== Description ===

Basic Info.

Type Cylindrical Gear Box Transport Package Carton or Plywood Case Specification CE, SGS, ISO Trademark Starshine Drive Origin China HS Code 8483409000 Production Capacity 5000PCS/ Month

Product Description

Starshine Drive K Series Helical -Bevel Geared Motor
      Features:
       -High efficiency: 92%-93%;       -Vertical output, compact structure, hard tooth surface , large output torque, low noise and long service life.
       -
High precision: the gear is made of high-quality alloy steel forging, carbonitriding and hardening treatment, grinding process to ensure high precision and stable running.
       -
High interchangeability: highly modular, serial design, strong versatility and interchangeability.
 Bevel Helical Geared Mootor Gearbox for Crane
Technical parameters
Ratio5.36-197.37
Input power0.12-200KW
Output torque10-62800N.m
Output speed7-415rpm
Mounting typeFoot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input MethodFlange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake ReleaseHF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position)
ThermistorTF(Thermistor protection PTC thermisto)
TH(Thermistor protection Bimetal swotch)
Mounting PositionM1, M2, M3, M4, M5, M6
TypeK37-K157
Output shaft dis.25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing materialHT200 high-strength cast iron from R37,47,57,67,77,87
Housing materialHT250 High strength cast iron from R97 107,137,147,
157,167,187
Heat treatment technologycarbonitriding and hardening treatment
Single Stage Efficiencyup to 96%
LubricantVG220
Protection ClassIP55, F class

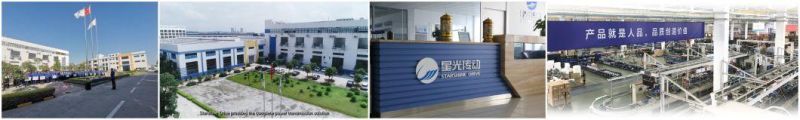

ABOUT US
Bevel Helical Geared Mootor Gearbox for Crane
Guangdong Starshine Drive Co.,Ltd(Starshine) have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.

Our products widely used in ceramic industry, glass industry, woodworking machinery , high voltage switch, food & beverage, packaging & printing, Storage & logistics, hoisting & transportation facilities…etc , and Starshine technically provide the professional product & service for the medium and high-end customers, and our gearboxes are best-selling in domestic, and even in abroad , such as in Europe, North America, South America, Middle East, South Asia, Southeast Asia, Africa…etc.

In the future , Starshine will hold the creed of "serving customer, diligence & simplicity, self-criticism, innovation, honesty, teamwork", and the concept of "quality creates value" to focus on the customers' requirements and provide them the competitive transmission solution and create value for them constantly, and make a high-end equipment manufacturing industry and create a preferred brand of replacing import products and upgrading continuously for the end users.

Bevel Helical Geared Mootor Gearbox for Crane

OUR TEAM
Bevel Helical Geared Mootor Gearbox for Crane


QUALITY CONTROL

Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value

Bevel Helical Geared Mootor Gearbox for Crane
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.

Bevel Helical Geared Mootor Gearbox for Crane
Bevel Helical Geared Mootor Gearbox for Crane

PACKING
Bevel Helical Geared Mootor Gearbox for Crane

DELIVERY
Bevel Helical Geared Mootor Gearbox for Crane
