Dental Implant Motor System Surgical Brushless Drill Motor Reduction Handpiece

• Type：Implant Equipment
• Material：Metal
• Applicable Departments：Oral Surgery
• Certification：UL, CE
• Maximum Output Power：120W
• Input：AC 110,230V, 50,60 Hz

=== Base Info ===

• Model NO.：WM-484
• Transport Package：8kg
• Specification：40*33*27CM
• Trademark：VIMEL
• Origin：China(Mainland)
• HS Code：90184990
• Production Capacity：5000piece,Year

=== Description ===

Basic Info.

Model NO. WM-484 Transport Package 8kg Specification 40*33*27CM Trademark VIMEL Origin China(Mainland) HS Code 90184990 Production Capacity 5000piece/Year

Product Description

Features:
SKU: CX-D-C(SRILOR)-220   CX-D-C(SRILOR)-110
1. Reduction geared contra angle with internal and external irrigation
2. Standard reduction latch style contra angle
3. Avaliable for standard reduction hanpdiece
4. Autoclave repeatable at 134 degrees

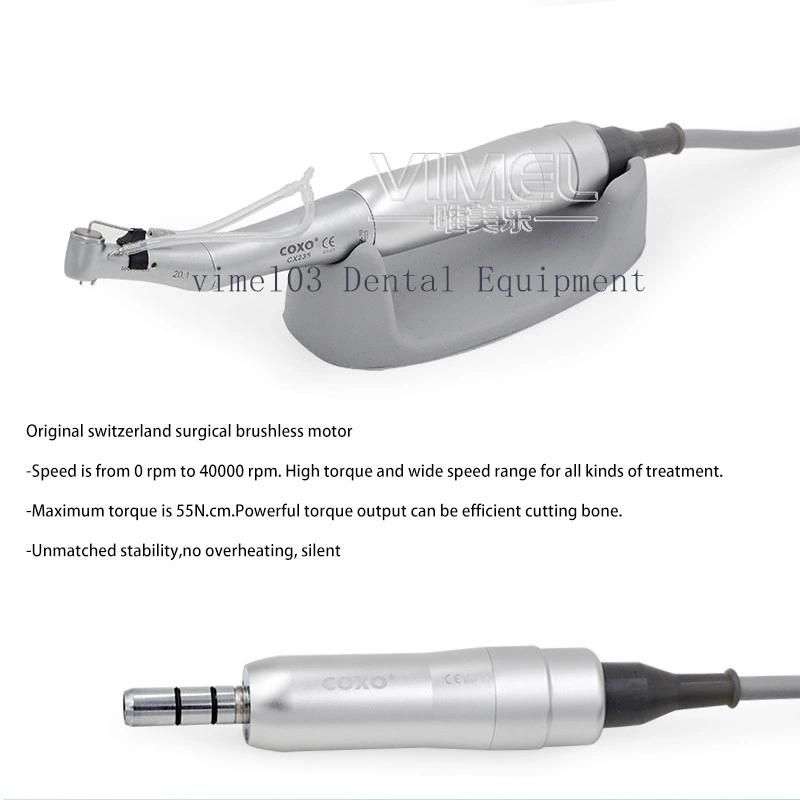

5. Original Switzerland Surgical brushless motor
6. Speed control from 0 rpm to 50000 rpm, strong torque and with wide speed range for all kinds fo treatment.
7. Maximum torque 55N.cm.  powerful torque output can be efficient cutting boneStability,no overheating, silent.
8. Foot ontrol pedal
9. Ergonomic and quick operation of every function during surgery
10. Multi functional foot control pedal, could achieve all the operating functions.
11. Intellligent cooling system
12. Hand control and foot control
13. Inner and external channel cooling and wash
14. Quiet and strong water pump (5 stage - control) (50ml/min -100ml/min)
15. High performance control system
16. Big LCD screen, easy to operate
17. 9 kinds of the reduction contra angle to choose
18. Supported Gear ratio: 1:5, 1:4, 1:1, 4:1, 16:1, 20:1, 27:1, 32:1, 64:1
19. 10 setting programs, preset the speed of air motor, cooling liquid flow and torque, reverse and specific speed
20. Achieve stepless speed regulation
21. Speed and torque for contra angle 20:1 and 32:1
22. Torque: 5.0 -55N.cm
23. Speed with 20:1 contra angle :30 -2500 rpm
24. Speed with 32:1 contra angle: 15-1500 rpm


Specifications
1. 210W high efficiency,55N/cm high torque eletric motor, low noise and vibration.
2. The speed of motor: 300-50,000/rpm.
3. Big screen can indentify all operation proceed quickly.
4. 10 setting progrem.
5. The electric motor can be high pressure and temperatuer sterilized.
6. The new foot pedal meet the international waterproof standard IPX4, it can control the speed, program, output of supplying water, the direction of speed.

Maximum output power	120w
Power	AC 110/230V, 50/60 HZ
Torque	5.0-55N.cm (20:1)
BLDC Speed	0 rpm -50000 rpm
RPM	30-2500 rpm (20:1)
Infusion flow	0-100ml/min
Motor	Original import Surigical brushless motor
Volume	400*330*265mm
Net weight	7kg
Gross weight	8.2kg
OTY per master carton	1pc/ctn



Content:

Major control unit	1
Foot pedal	1
Electric wire	1
Motor with wire	1
Water supply bottle holder	1
Motor holder	1
Pipe clasp	8
Y type isocon	1
Internal waterspray nozzle	1
Contra angle for implant	1
Fuse	1
Prevent steam bolt	1
Water supply pipe	1
Nozzle for contra angle	1
