High Brightness Outdoor P16 DIP346 LED Advertising Screen

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：16mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：220W , m²

=== Base Info ===

• Model NO.：P16
• Pixel Density：3906 Dots,M2
• Scanning Mode：Static Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Alu,Steel
• Brightness：>7000nits
• Refresh Rate：>1920Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• PSU：MW
• Driver IC：Mbi
• LED Lamps：Epistar
• System：Nova
• Transport Package：Plywood Cases
• Specification：1280x1280mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Outdoor front service advertising led display screen

Model Number

OF-P16

Pixel Pitch

16mm

Pixel Density(pixels/M2)

3906 pixels

Pixel Configuration

DIP346

LED Type

Epistar, DIP

Module Size(mm)

320x320mm

Module Resolution(pixels)

16*16p

Min.Viewing Distance(m)

16

Brightness(nits)

>7000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Static Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

1280x1280mm (Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

Part 5: Installation Methods

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

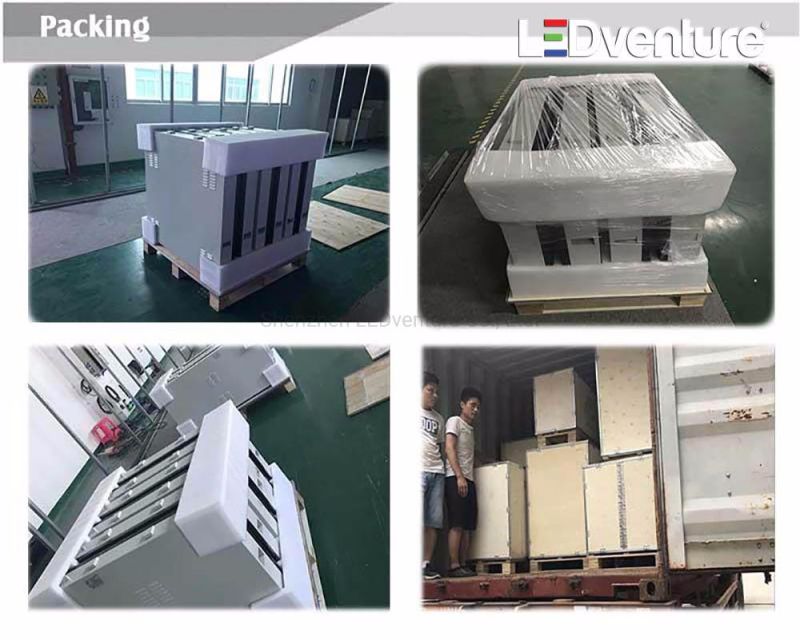

Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
