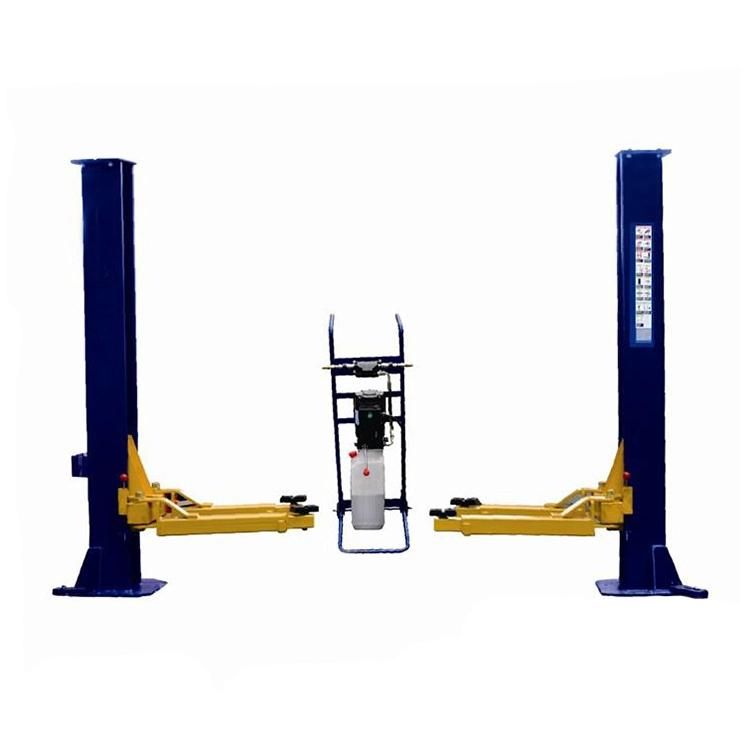

Portable 3 Ton 2 Post Garage Car Hoist
Shenzhen New Arts Import and Export Trade Co, . Ltd / 2022-06-23
- After-sales Service：Dedicated After-Sales
- Warranty：12 Month
- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：3T
- Driving Type：Hydraulic
- Certification：CE, ISO, RoHS, GS
=== Base Info ===
- Model NO.：QJY3.0-E
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
- Condition：New
- Brand：Fanbao
- Design：Two Post
- Model：Qjy3.0-E
- Capacity：3000kg
- Lift Height：1540mm
- Power of Motor：2.2kw
- Power Supply：220V,380V
- Width of The Rack：Adjustable
- Width Between Pillars：Adjustable
- Net Weight：450kg
- Transport Package：Main Machine Packed in Steel Frame Power Unit Pack
- Specification：2200*500*750mm
- Trademark：FANBAO
- Origin：Shanghai
- HS Code：84254290
- Production Capacity：1000pic,Month
=== Description ===
Overview
Product Description
FEATURES
1. 1540mm (60 3//5") lifting height
2. Manual two side release system
3. Adjustable width allow for different type of cars
4. Movable power unit trolley
5. Especially used for low garage shops
6. Drop in type lifting pads with clearance height less than 100mm (3 9/10")
7. The arm locks engage automatically when the lift is raised and disengage
when fully lowered
8. Durable powder coating
9. Optional cover for post ensures good outlooking
Company Profile
Our Advantages
Packaging & Shipping
FAQ
1.Does my lift come with the necessary anchor bolts and/or hardware to mount it to the floor?
All JIUYA lifts ship with the necessary anchors required for mounting the unit to your floor.
2.Does hydraulic fluid come with the lifts?
Due to current DOT and insurance laws regarding the transport of hydraulic oils (DOT Section 1 - Hazardous Ingredients; DOT Section 2 - Fire and Explosion Hazards and DOT Section 3 - Health Hazards) the required hydraulic fluid is to be supplied by the end-user, only. JIUYA lifts are designed to operate using standard 10-weight, non-foaming, non-detergent hydraulic oil or Dexron-III ATF fluid. This is available in virtually any automotive store.
3.Do I need a special floor or foundation to support my new lift?
Most residential or commercial foundations are strong enough to support JIUYA lifts. However, it is important to adhere to concrete specifications. Failure to do so could cause lift failure resulting in personal injury or death.
A level floor is suggested for proper installation and level lifting. With proper shimming, small differences in floor slopes may be compensated for. If a floor is of questionable slope, consider a survey of the site and / or the possibility of pouring a new level concrete slab.
4.What is the ceiling height required for a JIUYA lift?
The required ceiling height will vary depending on the lift model, as well as the intended vehicle. Please refer to the product specification page for each product for further details. Or contact us for advice.
5.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems. Because JIUYA sells in such high volume, replacement parts (and therefore the cost of owning a JIUYA car lift) are much less than the cost of owning other brands' lifts.
6.Are car lifts available in different voltages?
Other (unlisted) voltages may be available upon request. Voltage options vary between models.
