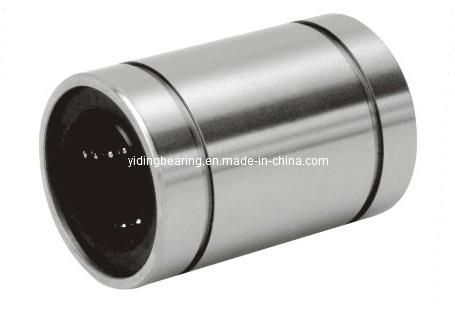

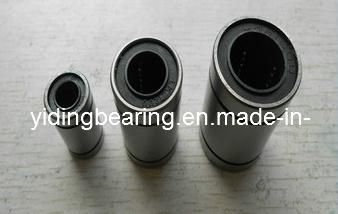

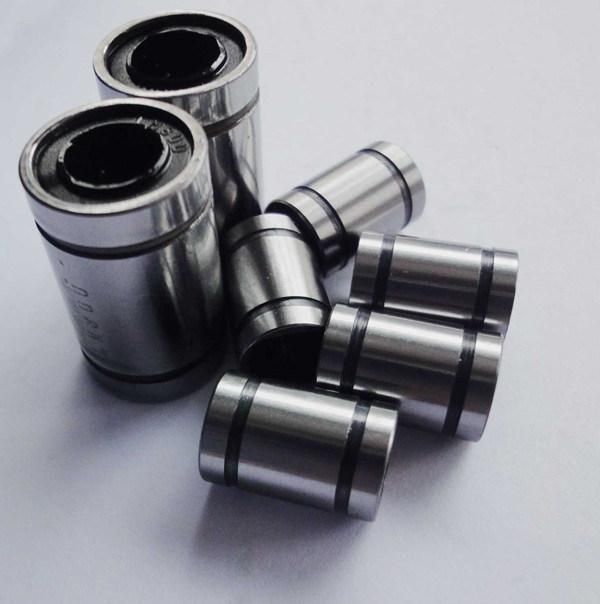

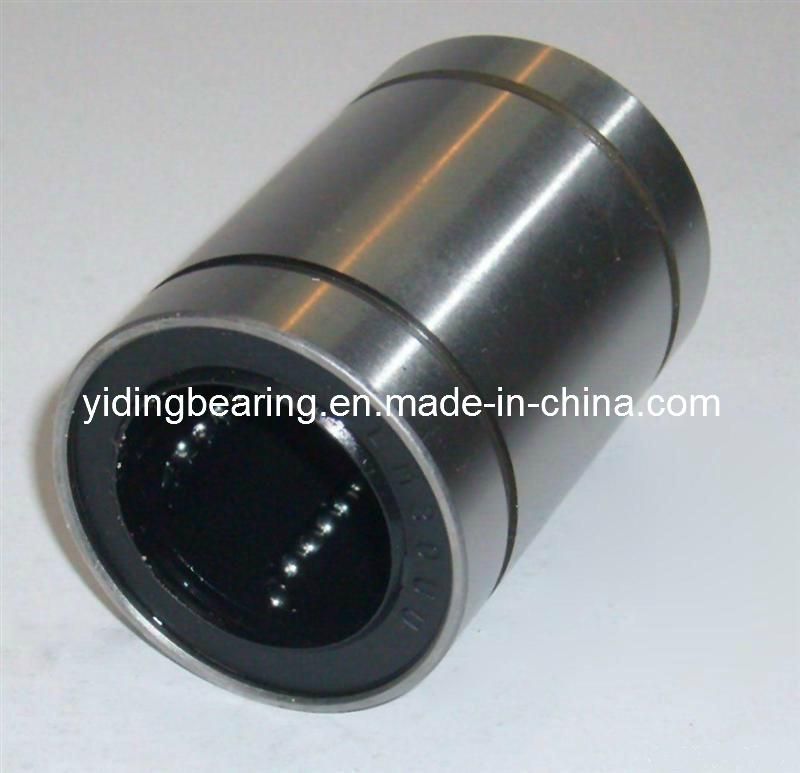

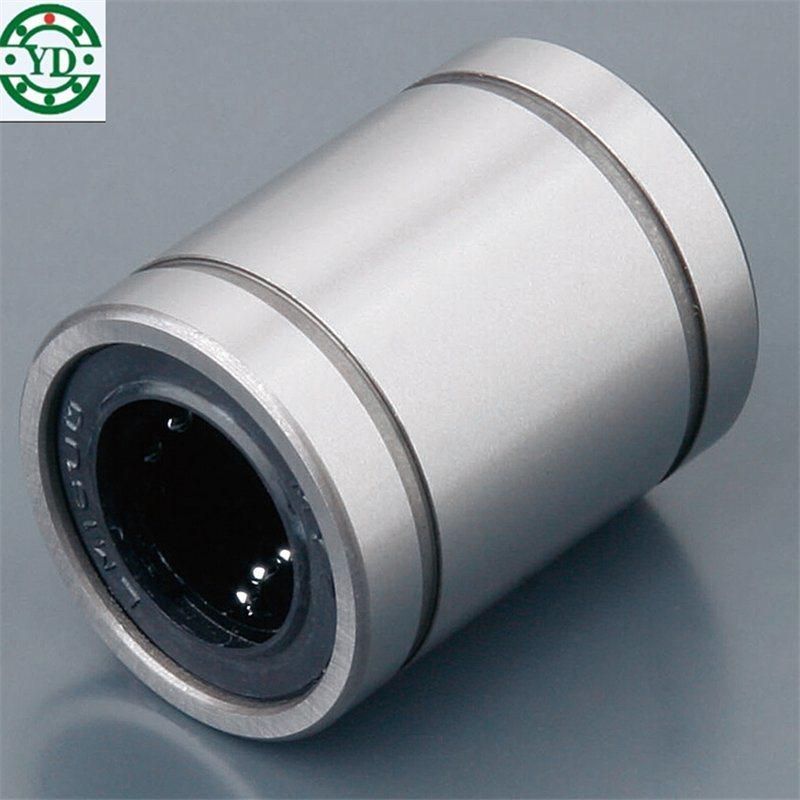

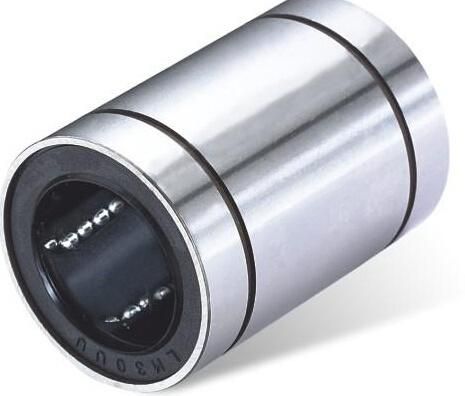

CNC Guide Linear Motion Sliding Bearing Lm30uu Lm20uu

• Bearing Structure：Solid Bearing
• Type of Lubricant：Oil-Lubricated Bearing
• Lubricant & Load：Hydrodynamic Bearing
• Bushing Material：Self-Lubrication
• Bearing Direction：Radial
• Lubricating Way：Maintenance-Free Bearing

=== Base Info ===

• Model NO.：LM30UU
• Lubricating Film Thickness：Thin Film Lubrication
• Place of Origin：Shandong China (Mainland)
• Precision Rating：P1 P2 P4 P6
• Transport Package：According to Per Client′s Requirements
• Trademark：Yiding
• Origin：China
• HS Code：8483300090
• Production Capacity：100000 Piece,Pieces Per Month

=== Description ===

Bearing CodeInner size(d)Outer size(D)Length(L)Weight(kg)Ball RowsMaterialBrandPlace of originGuarantee timeLM30UU3045642505Chrome steelCLUNTShandong, China2 years
Linear bearing model chart
Bearing CodeBallWeightInner size(dr)Outer size(D)Length(L)LM6UU4 rows8g6mm12mm19mmLM8UU4 rows17g8mm15mm24mmLM10UU4 rows30g10mm19mm29mmLM12UU5 rows31.5g12mm21mm30mmLM13UU5 rows43g13mm23mm32mmLM16UU5 rows69g16mm28mm37mmLM20UU5 rows87g20mm32mm42mmLM25UU6 rows220g25mm40mm59mmLM30UU6 rows250g30mm45mm64mmLM35UU6 rows390g35mm52mm70mmLM40UU6 rows585g40mm60mm80mmLM50UU6 rows1580g50mm80mm100mmLM60UU6 rows2000g60mm90mm110mmLM80UU6 rows4520g80mm120mm140mm
We can supply other series linear ball bearing:
1.Linear Bearing LM8UU LM16UU LM20UU hotsale
2.LM LME KH LML series
3.Short delivery time
4.Linear mothion bush
5.OEM service is provided as demands

Other hotsale Linear Bearing:
LM...UU LM...UU-OPLM...UU-AJLME..UULM...LUUKH seriesLM6UULM6UU-OPLM6UU-AJLME5UULM6LUUKH0622LM8UULM8UU-OPLM8UU-AJLME8UULM8LUUKH0824LM10UULM10UU-OPLM10UU-AJLME12UULM10LUUKH126LM12UULM12UU-OPLM12UU-AJLME20UULM12LUUKH1228LM13UULM13UU-OPLM13UU-AJLME25UULM13LUUKH1428LM16UULM16UU-OPLM16UU-AJLME30UULM16LUUKH1428LM20UULM20UU-OPLM20UU-AJLME40UULM20LUUKH1630LM25UULM25UU-OPLM25UU-AJLME50UULM25LUUKH2030LM30UULM30UU-OPLM30UU-AJLME60UULM30LUUKH2540LM35UULM35UU-OPLM35UU-AJ LM35LUUKH3050LM40UULM40UU-OPLM40UU-AJ LM40LUUKH4060LM50UULM50UU-OPLM50UU-AJ LM50LUUKH5070LM60UULM60UU-OPLM60UU-AJ LM60LUU LM80UULM80UU-OPLM80UU-AJ   LM100UULM100UU-OPLM100UU-AJ
"LM"   metric standard type linear bearing
"LME"  inch standard type linear bearing
"UU"   rubber seals on the both sides of the long type linear bearing
"OP" open type linear bearing
"AJ" adjustment type linear bearing
*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable),
*KH: High-precision mini bearing
